The Premier "Golden Combination" for Rail Transit: Combines 3M™ IJ680 industrial-grade reflective film with 3M™ 580C commercial protective overlaminate, purpose-built to withstand harsh transit environments.
8-Year Weatherproof & Chemical Resistance: Coated with high-refractive glass beads and chemical-resistant protective layers to withstand scratch, UV exposure, and severe weather.
Slideable Adhesive with Air-Release Channels: 3M™ IJ680 feature set includes positionable slideable tack, air-release channels, and pressure-activated adhesive for easy alignment and bubble-free installation.

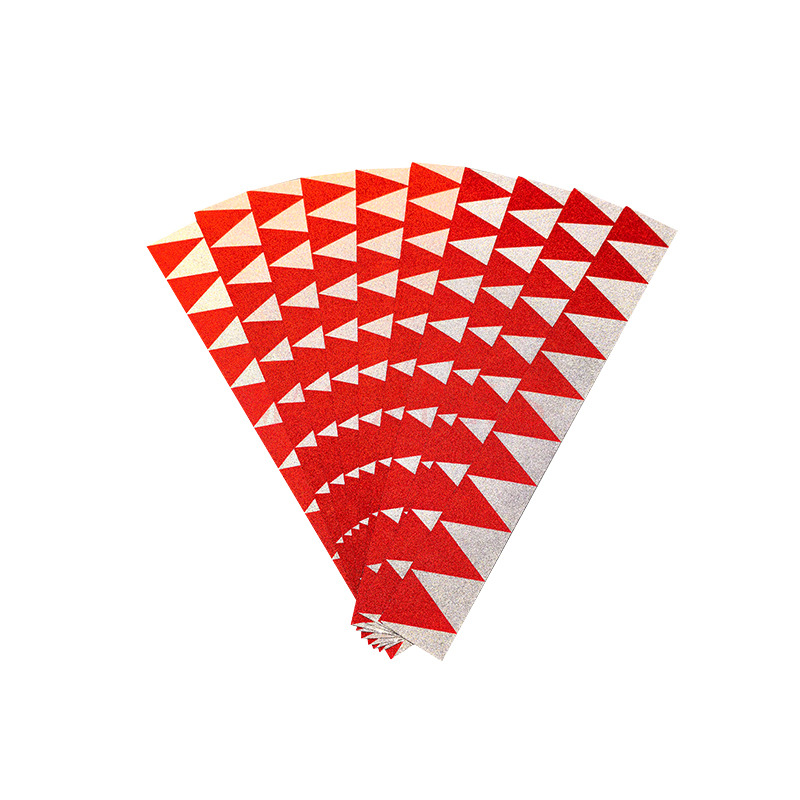

Low MOQ & Precision Converting: Flexible ordering with a Low MOQ starting at 1 Piece, supporting custom die-cutting into triangles, circles, rectangles, and custom vehicle shapes.
Strict Compliance & 16 Years Expertise: Precision manufactured using screen printing, UV inkjet, or HP Latex printing to meet international rail transit and transportation safety standards.
| Quantity: | |
|---|---|
This dual-layer system is recognized as the gold standard in the rail transit industry, specifically engineered to handle complex body panels, rivets, and corrugated train exterior panels:
Slideability & Positionability: Features slideable, air-release pressure-activated adhesive allowing effortless position adjustments during installation, drastically reducing application scrap.
Ultra-High Conspicuity: Features a 7 mil thickness with a typical retro-reflection coefficient of 100, maintaining extreme visual warning performance in dark subways, tunnels, and open-air night operations.
Transit-Optimized Base: Officially recommended for subways, light rails, trams, express trains, and municipal buses.
Enhanced Protection: Serves as a protective overlaminate that reinforces scratch resistance and chemical corrosion protection against industrial washing agents.
High-Index Optical Beads: Embedded with imported high-index glass beads for superior night-time reflection and excellent ink adhesion for multi-color screen and digital printing.
8-Year Outdoor Service Life: Engineered to deliver reliable durability for up to 8 years under severe outdoor operating environments.
Parameter | Specification Details |
Material Construction | Dual-Layer System: 3M™ IJ680 Base + 3M™ 580C Overlaminate |
Optic Technology | High-Index Glass Bead Retro-Reflective Optics |
Adhesive Technology | Pressure-activated, slideable with air-release channel system |
Durability Rating | Up to 8-Year Outdoor Lifetime |
Manufacturing Expertise | 16 Years of Precision Reflective Converting & Custom Fabrication |
Processing Methods | Screen Printing, UV Inkjet Printing, HP Latex Digital Printing, Precision Die-Cutting |
Application Method | Wet Application Method (Mild soapy water slip solution) |
Application Temperature | 10°C to 38°C (Optimal pre-heat room temp: 18°C to 28°C) |
Minimum Order Quantity | 1 Piece (Triangle, circle, rectangle, and contour die-cut shapes) |
Rail Transit & Rolling Stock: Exterior train body warning decals, emergency door/window placards, roadside safety markings, and interior emergency stickers for subways, light rails, trams, and bullet trains.
Public Transportation Fleets: Contour markings and brand identification graphics for city buses and BRT fleets.
Emergency & First Responder Vehicles: Reflective hazard stripes and emblems for fire trucks, ambulances, and police vehicles.
Logistics & Commercial Trucks: Heavy trailer contour marking tapes and corporate fleet logos.
Industrial & Campus Safety: Safety signs for construction sites, school buses, specialized machinery, and warehouse logistics.
Special Notice: For specialized rail transit vehicle installations (such as curved bodies or surfaces with rivets), please contact our customer service team for detailed technical guidance.
Assemble the following tools prior to installation:
Spray bottle (filled with clean water + a few drops of neutral mild soap)
3M PA-1 Plastic Squeegee or soft felt-edge squeegee
Lint-free microfiber towels
Precision utility knife
Portable heat gun or hairdryer (low heat setting)
Rivet punch/cutting tool (if installing over rivets)
Surface cleaner (Neutral cleaner, Isopropyl Alcohol - IPA, or 3M Prep Solvent 70)
Environmental Assessment: Ensure ambient and substrate temperatures are between 10°C and 38°C. If temperatures fall below 10°C, use a portable heater to warm the substrate. Avoid installing during high winds, direct scorching heat, or rain/snow.
Surface Cleaning: Wash the installation panel with water and detergent to remove oil, dust, and grime. Rinse thoroughly with clean water. Deep-clean using Isopropyl Alcohol (IPA) or 3M Prep Solvent 70 on lint-free towels, then dry completely.
Wet Lubrication Spray: Evenly mist the vehicle surface with the diluted soapy water solution. This prevents immediate bonding and allows effortless graphic positioning.

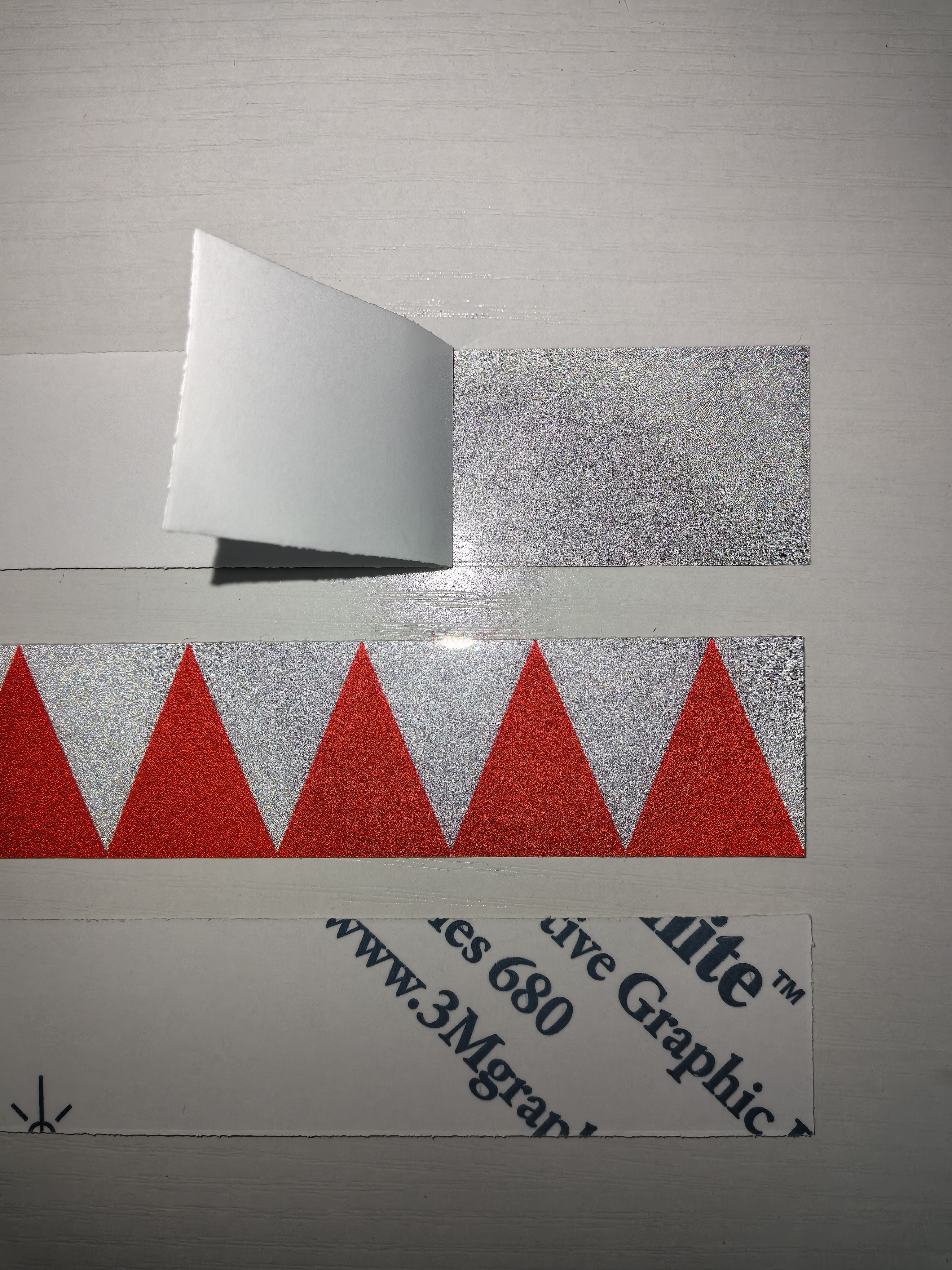

Positioning: Peel off the release paper, align the reflective sticker onto the wet surface. The slideable feature of 3M IJ680 allows smooth position adjustments.
Squeegee Water & Air Displacement: Sweep firm, overlapping strokes using a 3M PA-1 squeegee from the center outward to displace all water and air. Integrated air-release channels facilitate complete bubble removal.
Rivet Handling (If Applicable): When applying over rivets, use a rivet punch tool to slice the film around the rivet base, then squeegee firmly down surrounding edges.
Heat Setting & Trimming: Gently warm corners and edges with a heat gun set to low temperature to soften the film and press down firmly. Trim any excess edges using a precision knife.
Curing Window: Allow the installed graphic to cure in a clean environment. Do not wash the vehicle, expose to rain, or apply chemical cleaners for 24 hours post-installation.
Issue | Primary Cause | Recommended Solution |
Low Temperature Installation | Ambient temperature below 10°C | Pre-heat substrate and film with a portable heat gun above 10°C prior to application. |
Film Stretching Distortion | Forcible pulling or stretching during squeegeeing | Do not forcibly stretch the film, as it damages retro-reflective performance and causes edge lifting. |
Trapped Air Pockets | Incomplete water or air displacement | Puncture the bubble center with a fine needle tip and squeegee flat; do not tear cured film. |
Cleaning Maintenance | Use of harsh acid or alkaline washing solutions | Wash graphics using soft microfiber towels and neutral detergents only. |
