Common Label Failures in Energy Storage Systems

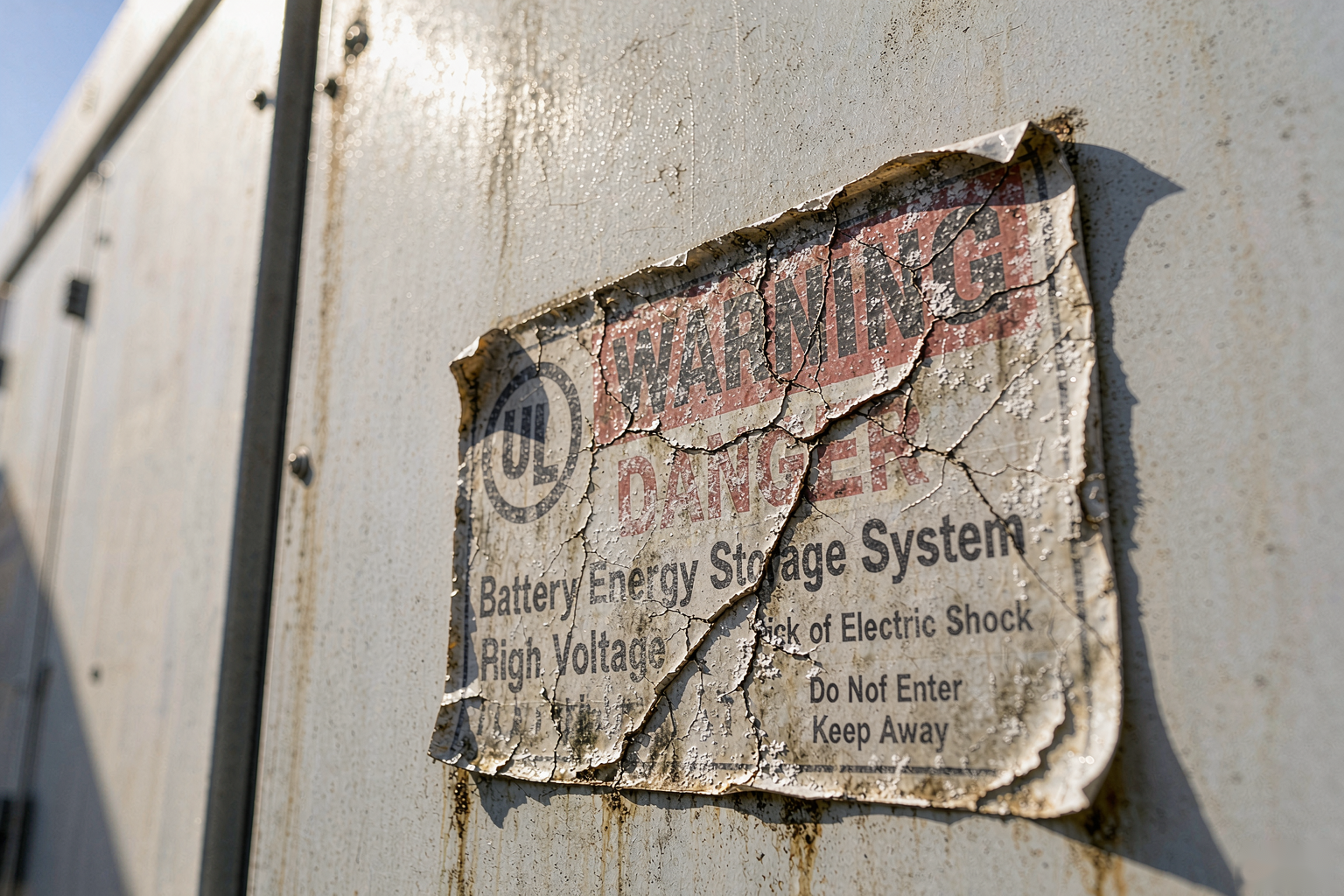

Environmental Degradation

Battery cabinets run hot, cycle between -30°C and 60°C, and face UV and electrolyte exposure outdoors. Standard labels fade, embrittle and crack within 2-3 years — while the safety warning must stay readable for the system's entire 15-20 year life.

painpoint-2-adhesion-failure

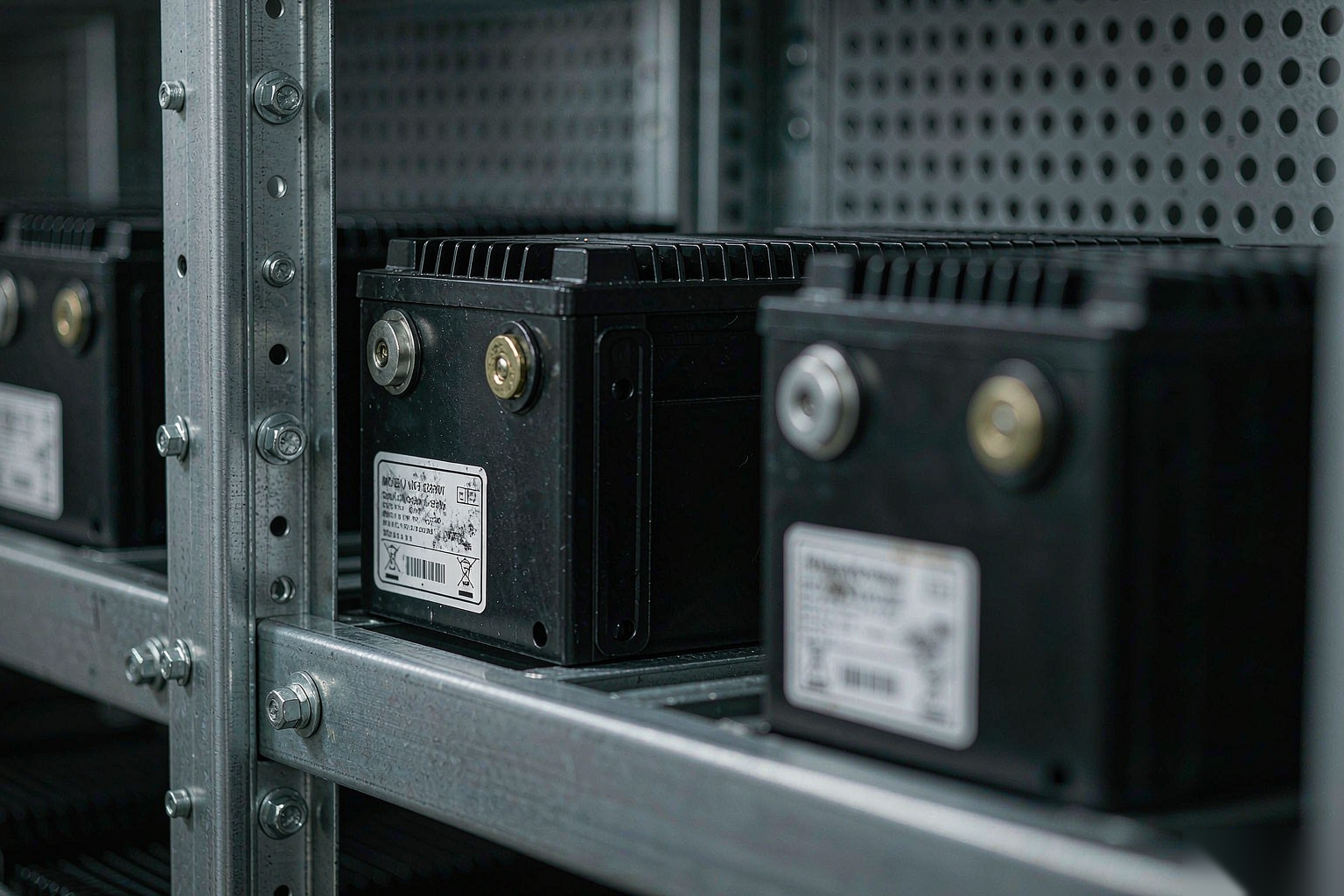

Data & Compliance Risk

Every pack needs serialized numbers, barcodes and ratings — often printed in-house by thermal transfer. Non-certified blank labels smudge, fade or void the UL 969 certification, failing audits and delaying commissioning.

painpoint-1-environmental-degradation

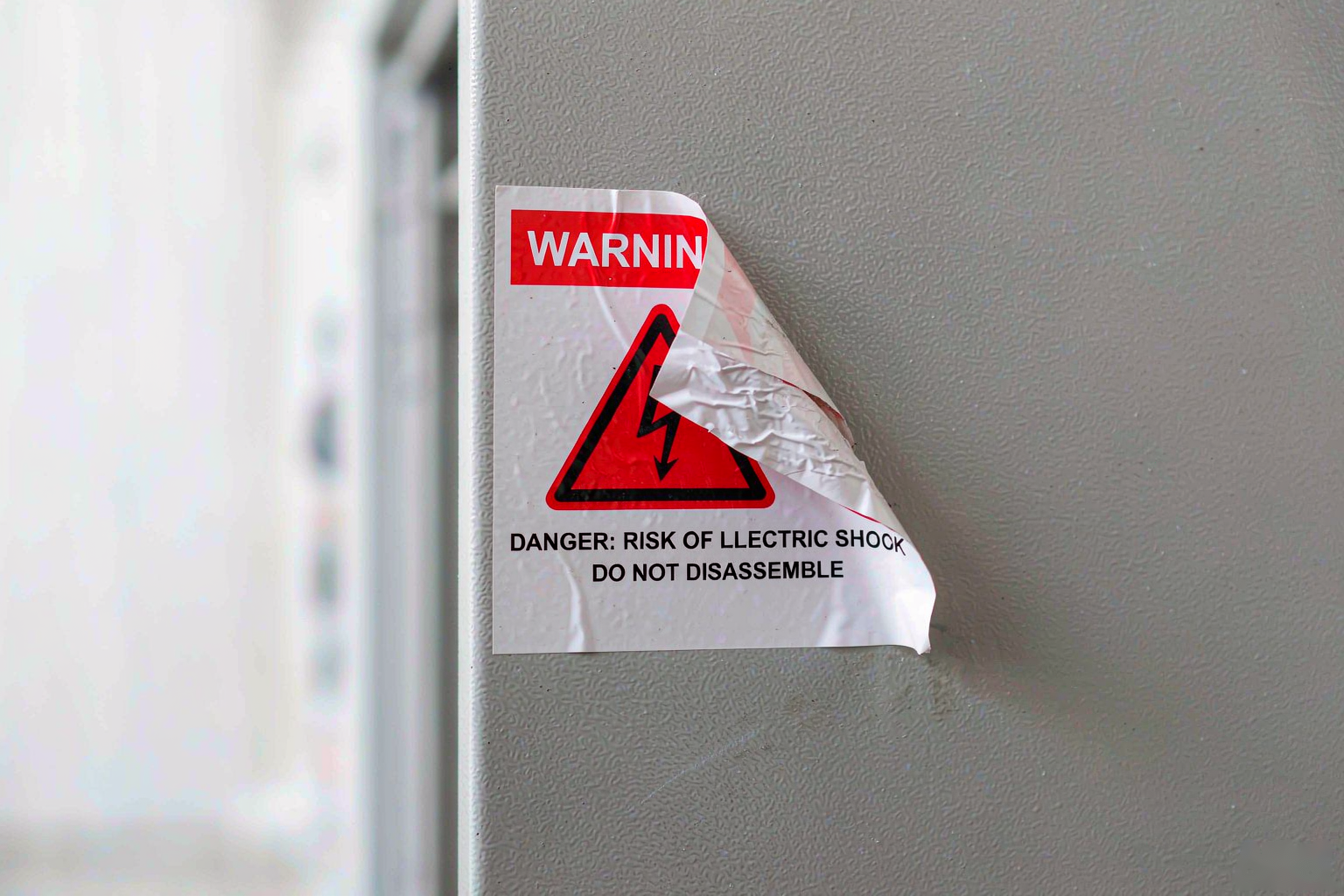

Adhesion Failure

Powder-coated steel, aluminum and low surface energy plastics each need a different adhesive system. One-size-fits-all labels lift at the edges or detach completely, and winter installation makes it worse.

painpoint-3-variable-data

Certified Compliance, Verifiable at Any Audit

MAC Labels' marking and labeling systems are certified under UL 969 (File No. MH67591), with pre-approved constructions built on 3M 2008 + 3M 8520 and 3M 2208 + 3M 3699. That means your labels pass inspection the first time — no re-testing, no re-submission, no commissioning delays.

MH67591-20250626-CertificateofCompliance_pages-to-jpg-0001

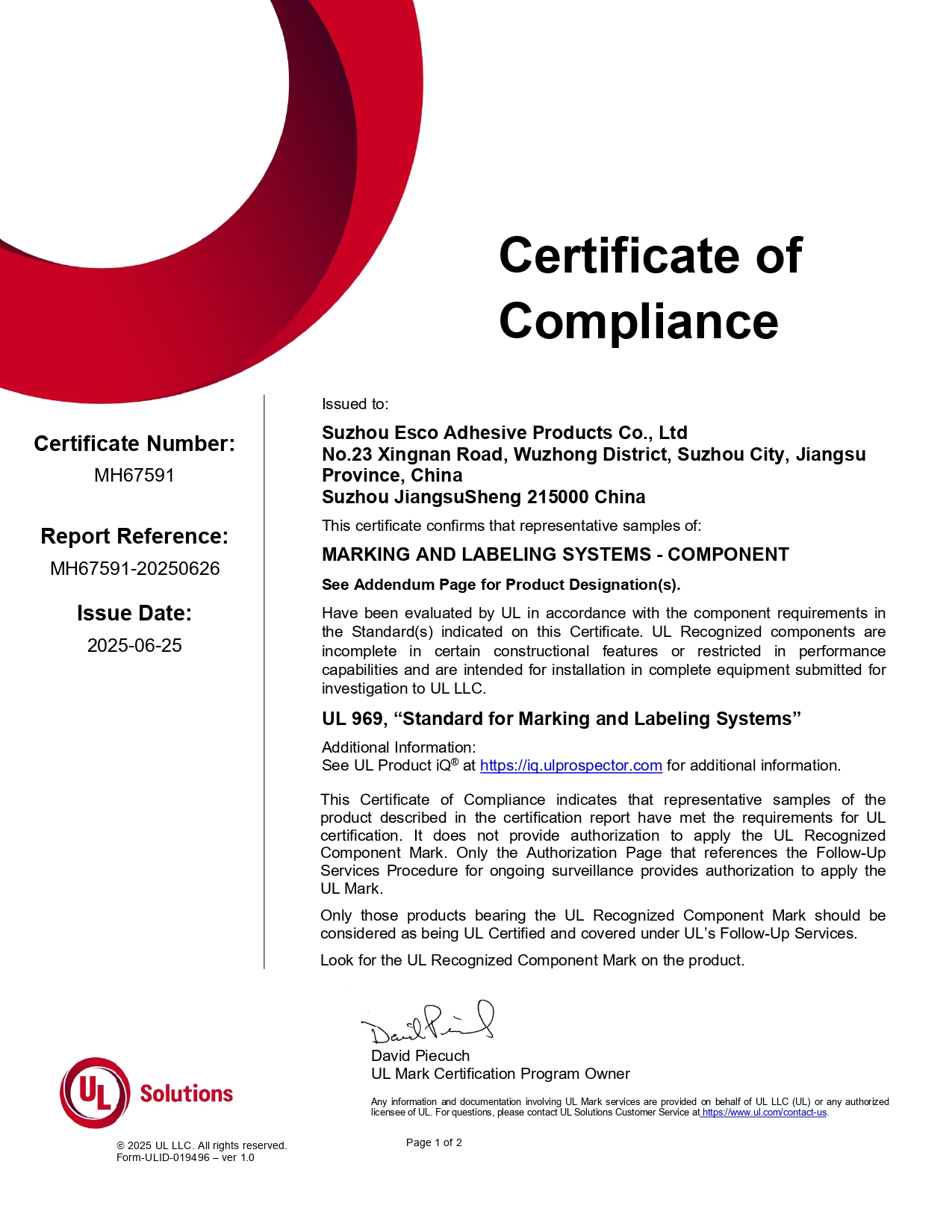

Certificate of Compliance

MH67591-20250626-CertificateofCompliance-20250625(1)-鍥剧墖-0

Certificate of Compliance

CALCOAST

CALCOAST

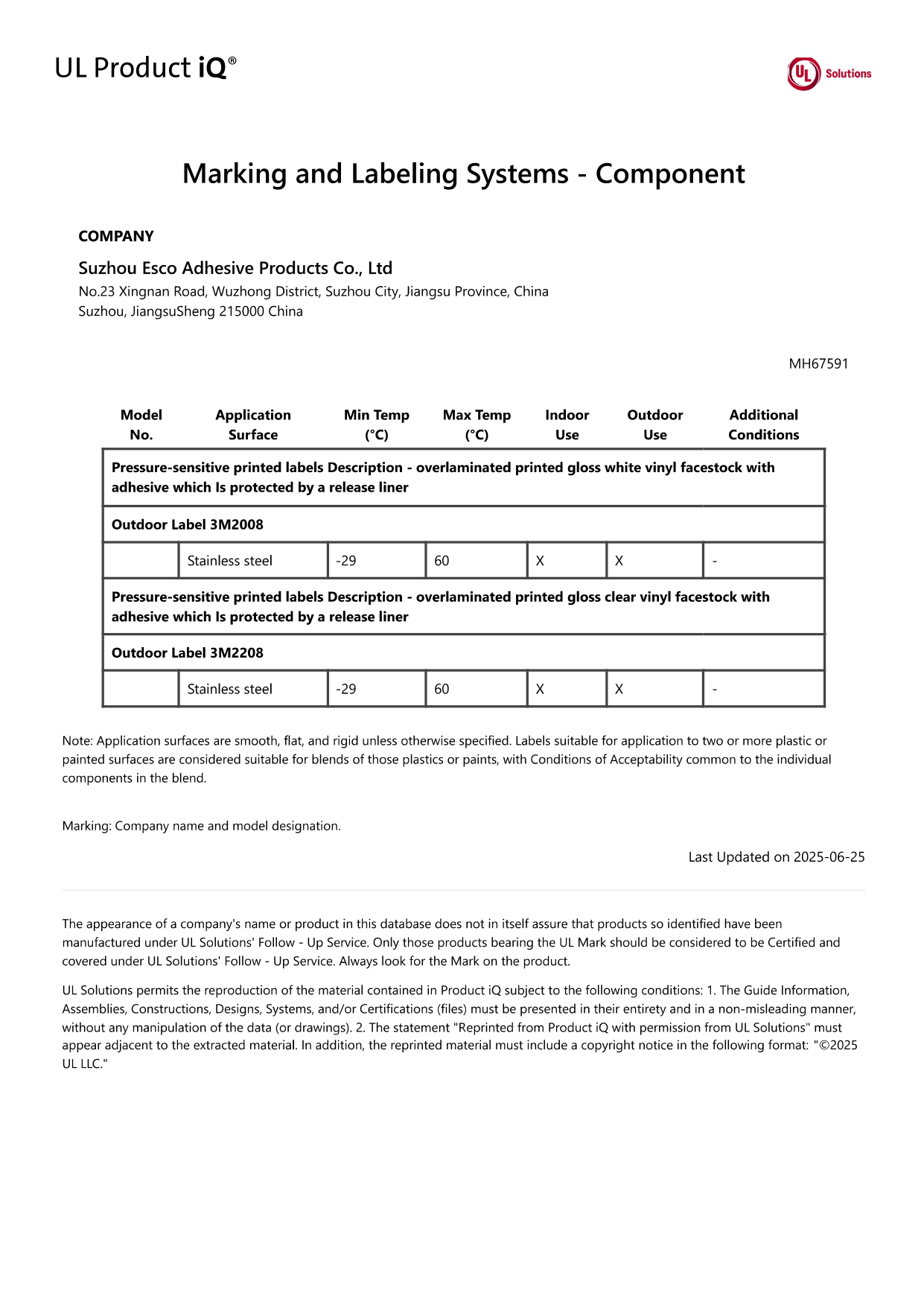

UL黄卡_pages-to-jpg-0001

UL Product IQ

ISO证书

ISO Certificate

MCS

MCS Certificate

Industry Solutions

We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.

solution-1-battery-module-pack-labels

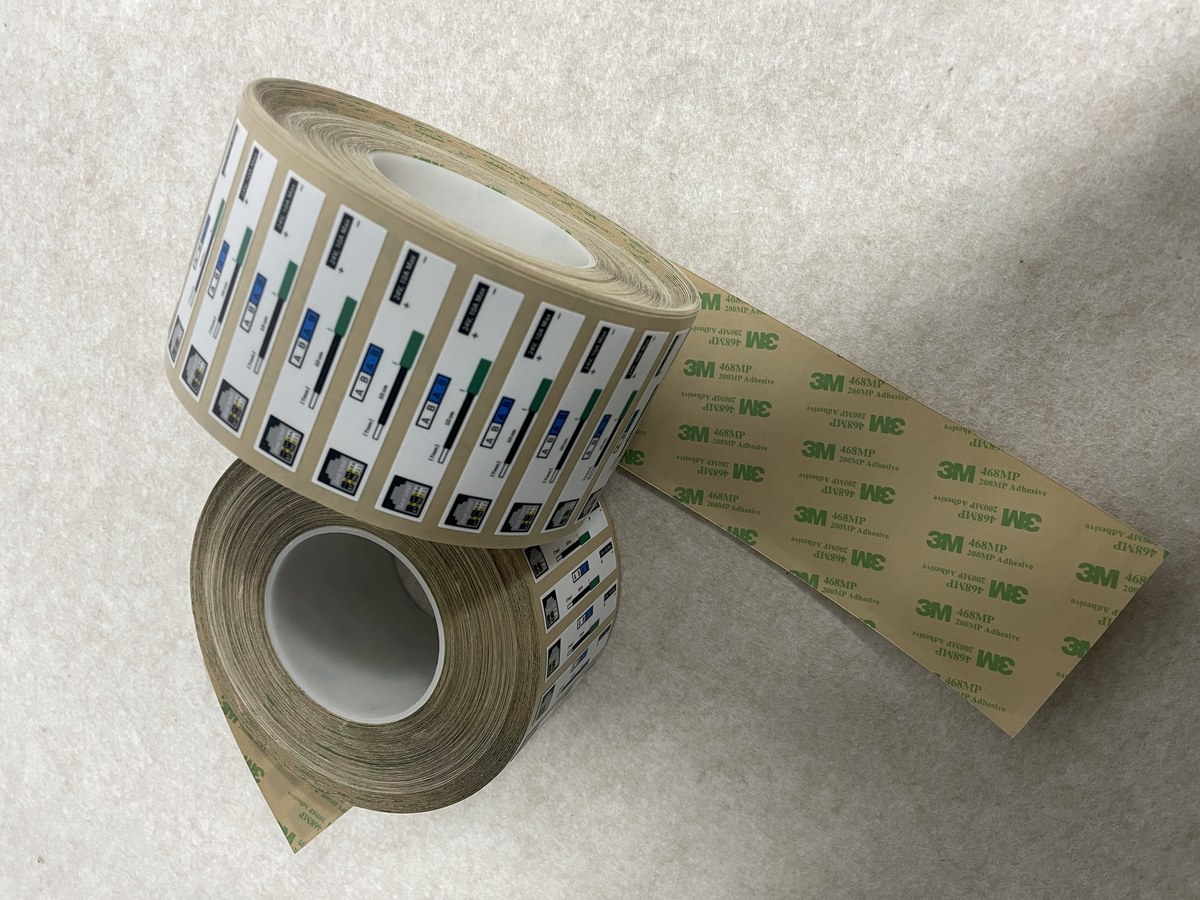

Battery Module & Pack Labels

Voltage, chemistry and warning markings printed on UL-recognized polyester

constructions, with options for thermal-transfer variable data (PGJI2) so your team can serialize packs in-house.

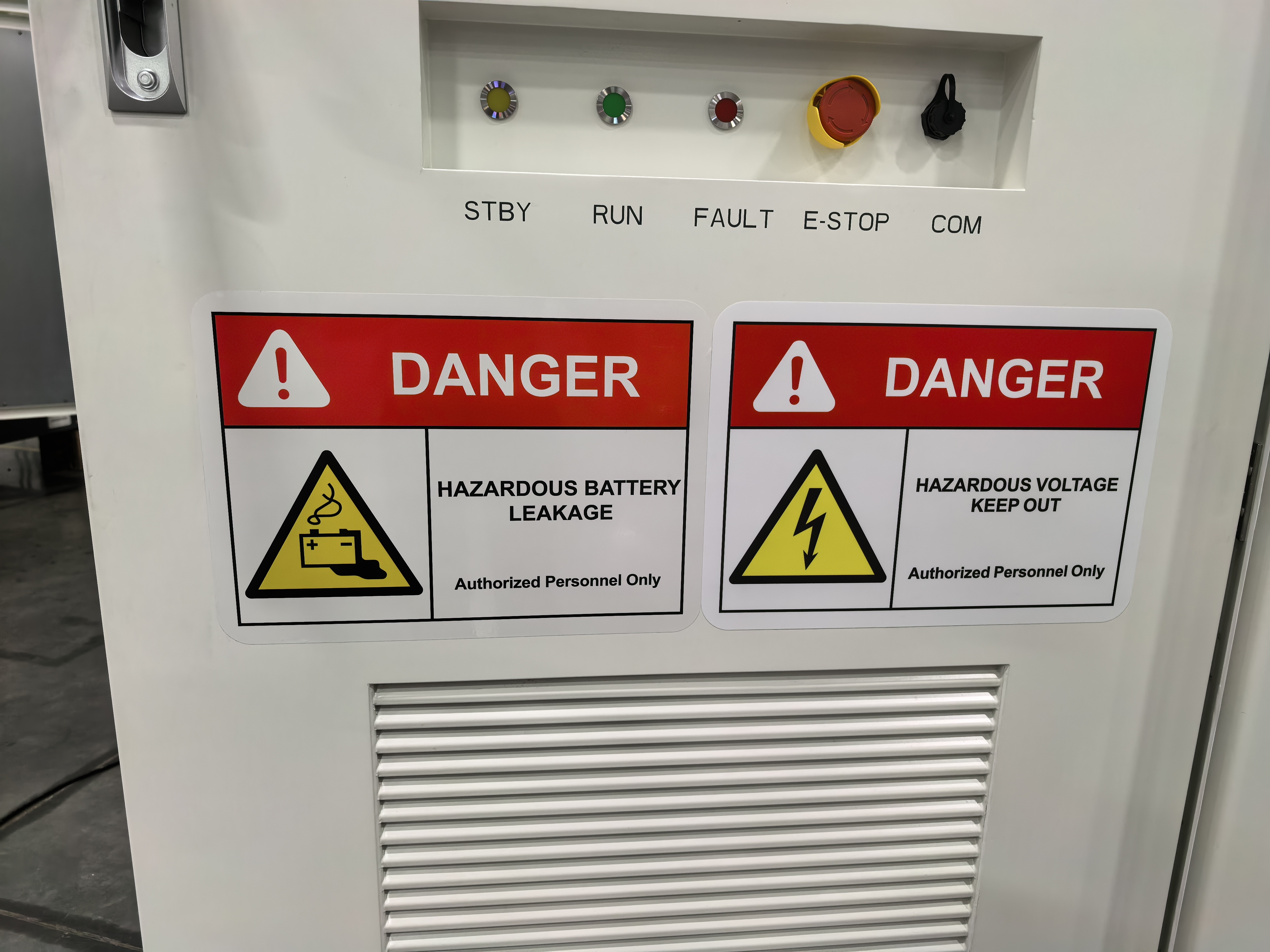

柜体场景图

ESS Cabinet Warning & Data Labels

High-durability overlaminated labels rated for outdoor exposure,

carrying electrical shock, arc flash and energy hazard warnings required under UL 9540 marking requirements.

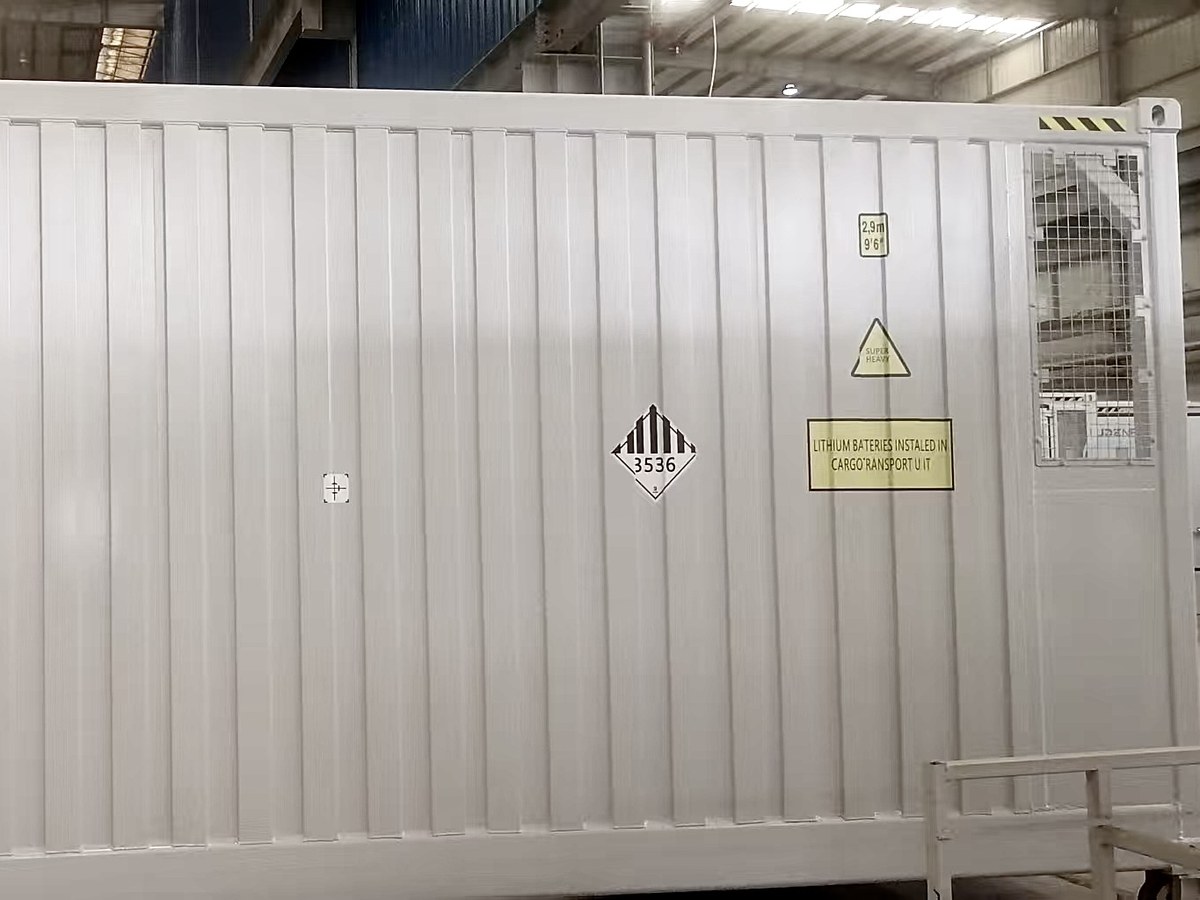

solution-3-nfpa855-emergency-signage

Emergency Responder Signage

ESS data labels and hazard signage that carry chemistry, capacity

(kWh), disconnect locations and 24-hour emergency contact — exactly what first responders and AHJ inspectors

look for.

solution-4-disconnect-arc-flash-labels

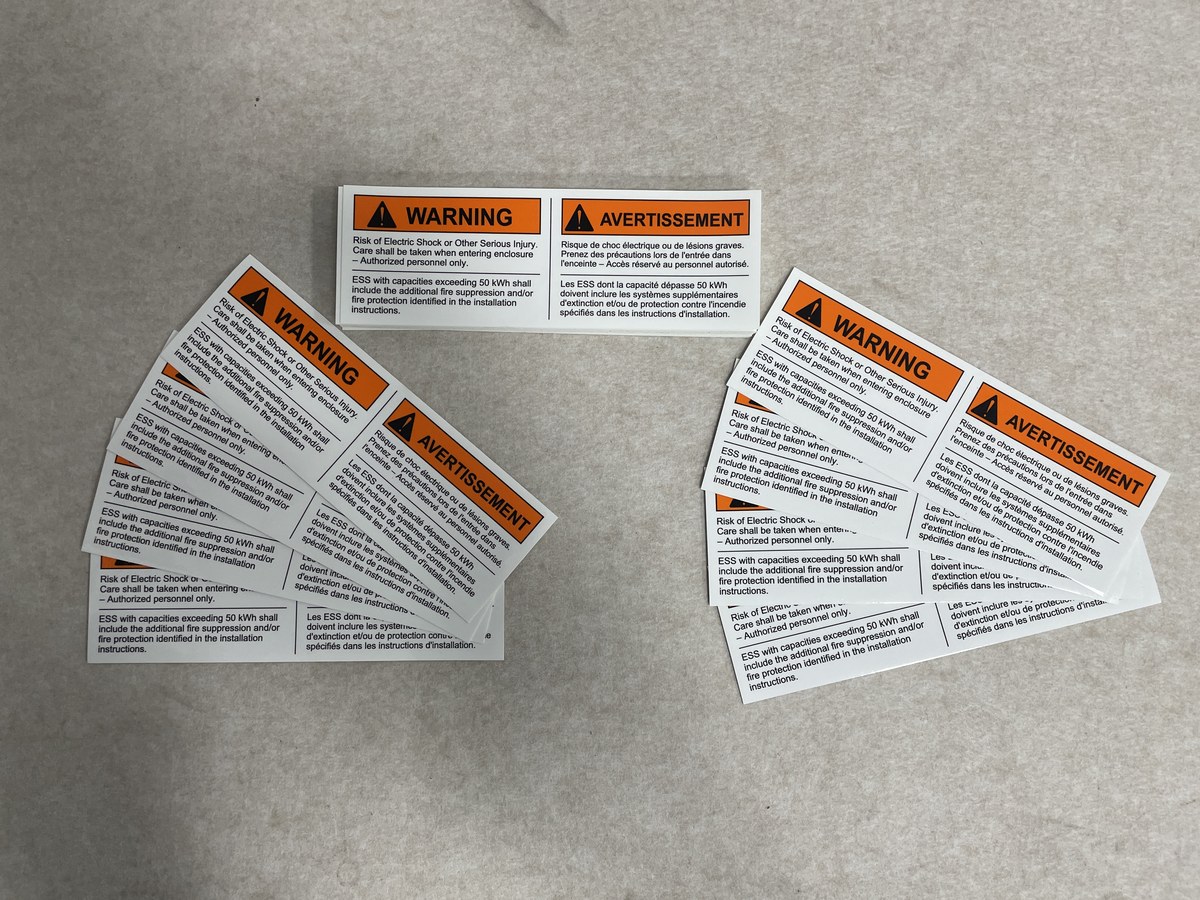

Disconnect & Arc Flash Labels

AC/DC disconnect identification and NFPA 70E-style arc flash markings

engineered for legibility on energized-equipment surfaces.

Why MAC Labels

Authorized 3M / NCI / DM Converter

We convert genuine 3M, NCI and DM materials — no generic substitutes. 2025 sales reached RMB 180 million (~US$25M), backed by long-term authorized supply.

5 Service Locations, 12,000 m² Plant

Headquarters and production in Suzhou (12,000 m²), with service centers in Hangzhou, Guangdong, Zhenjiang and Suzhou — plus a Thailand location for fast Southeast Asia delivery.

设计研发部

OEM / ODM From Drawing to Delivery

Send your drawings and surfaces; we engineer the construction, deliver certified samples within 48 hours, MOQ 1 set, and standard production lead time within 3 days.

UL 969 Pre-Certified Constructions

Label constructions recognized under UL File No. MH67591 — verified by −29 °C cold aging, +87 °C heat aging, water immersion and 750-hour xenon arc testing.

Need a complete line layout for your factory space?

Use this CTA for engineering-oriented buyers who already have factory dimensions or target capacity.

Certified Material Constructions (UL 969, File No. MH67591)

ConstructionFacestockOverlaminateAdhesiveUL CategoryTemp RangeTypical Substrates
Construction A Outdoor Label3M 2208 System3M™ Scotchcal™ 2208 calendered vinyl, 4 mil (102 µm), white opaque; inkjet printable (HP 873 series verified)Clear vinyl overlaminate film, 48 µm (per UL Test Record T1)Pressure-sensitive acrylic, clear, 36 µmUL 969 Marking & Labeling Systems — Component Recognition, File No. MH67591, Grade "Outdoor Label 3M2208"Service: −30 °C to +80 °CUL verified: −29 °C cold aging, +87 °C oven aging, 750 h xenon arc — all conformingStainless steel (UL tested), powder-coated steel, aluminum, painted panels, ABS, acrylic enamel, chrome
Construction B Long-Term Graphic3M 2008 System3M™ Scotchcal™ 2008 cast vinyl film, 4 mil (2008-10 White / 2008-12 Black / 2008-15 Yellow)3M™ Scotchcal™ Matte Overlaminate 8520Clear pressure-sensitive acrylic; adhesion 11.25 N/25 mm on aluminum panelsUL 969 certified system per File No. MH67591 construction familyService: −30 °C to +80 °COutdoor durability up to 7 years (worldwide, container graphics)Glass, metal, paint, fiberglass-reinforced plastic, rigid plastics; flat surfaces with or without rivets
Construction CHigh-Adhesion Option3M 2208 + 36993M™ Scotchcal™ 2208 (2208-214) calendered vinyl, 4 mil, clear / transparent3M 3699 overlaminate, clear / transparentPressure-sensitive acrylic (clear, 2208-214)UL category to be confirmed against File No. MH67591 construction listService: −30 °C to +80 °C (facestock)Powder-coated steel, aluminum, painted panels, rigid plastics

ESS Labeling Requirements — What Inspectors Check First

s5-big-container-compliance

Complete ESS Labeling Compliance Package

Request Labeling Checklist

s5-1-chemistry-energy-data
Chemistry & Energy Data

Battery chemistry and rated kWh marked on every module, exactly as NFPA 855 requires for AHJ hazard assessment.

s5-2-hazard-warnings
Hazard Warnings & Signage

Electrical shock, fire and explosion warnings with ANSI Z535 signal words — the first thing fire marshals check during commissioning.

s5-3-electrical-ratings
Electrical Ratings & Disconnect ID

Nominal voltage, short-circuit current and utility disconnect identification, permanently marked for safe responder isolation.

s5-4-traceability-barcode
Traceability & Emergency Response

Serialized barcodes, installation dates and 24-hour emergency contact — printed to stay readable for the system's full service life.

Product Center

FAQ

What is your lead time for sample approval?

We provide certified label samples within 48 hours of artwork confirmation. Each sample ships with the corresponding UL 969 construction details (File No. MH67591) so your engineering team can verify materials and adhesives before mass production.

Do you support tight project schedules for ESS commissioning?

What is your minimum order quantity (MOQ)?

How fast can you deliver a production order?

Can small orders still keep UL 969 certification valid?

Get a Certified Label Solution for Your Energy Storage Project

Send us your label drawings, cabinet surfaces and project schedule. Our engineering team will recommend the right UL 969 certified construction — and quote within one business day.

Certified samples within 48 hours (File No. MH67591).

MOQ: 1 set — from prototype to volume production.

Standard lead time within 3 days after approval.
