Our Full Vehicle Wrap Fleet Graphics deliver the ultimate mobile advertising impact by covering the entire painted surface of your trucks, vans, buses or trailers with a seamless, high-resolution graphic. Using premium cast vinyl from 3M, ORAFOL or Avery Dennison, full wraps turn every vehicle into a moving billboard that commands attention on highways, in city traffic and at customer sites.
Full wraps also protect the original paint from stone chips, UV fading and minor abrasions, helping preserve resale value. Finished with 3M 8518 gloss, 8520 matte or 8528 high-UV overlaminate, these wraps maintain their color depth and surface integrity for years of commercial use.
Maximum Visual ImpactComplete vehicle coverage, no paint visible
Paint ProtectionShields original finish from chips and UV
Seamless DesignLarge-format HP Latex printing with panel matching
Long Outdoor Life5-10 years with premium laminate
Material | 3M IJ180 / ORAFOL 970RA / Avery MPI 1105 cast vinyl |
|---|---|
Overlaminate | 3M 8518 Gloss / 8520 Matte / 8528 High UV |
Printing | HP Latex large-format digital printing |
Coverage | Full exterior coverage including sides, front, rear and roof if required |
Finish | Gloss, matte, satin or custom texture |
MOQ | 1 vehicle set |
Outdoor Life | 5-10 years depending on climate and care |
Adhesive | Air-release pressure-sensitive acrylic |
Typical Applications | Box trucks, semi trailers, vans, buses, food trucks, race trailers |

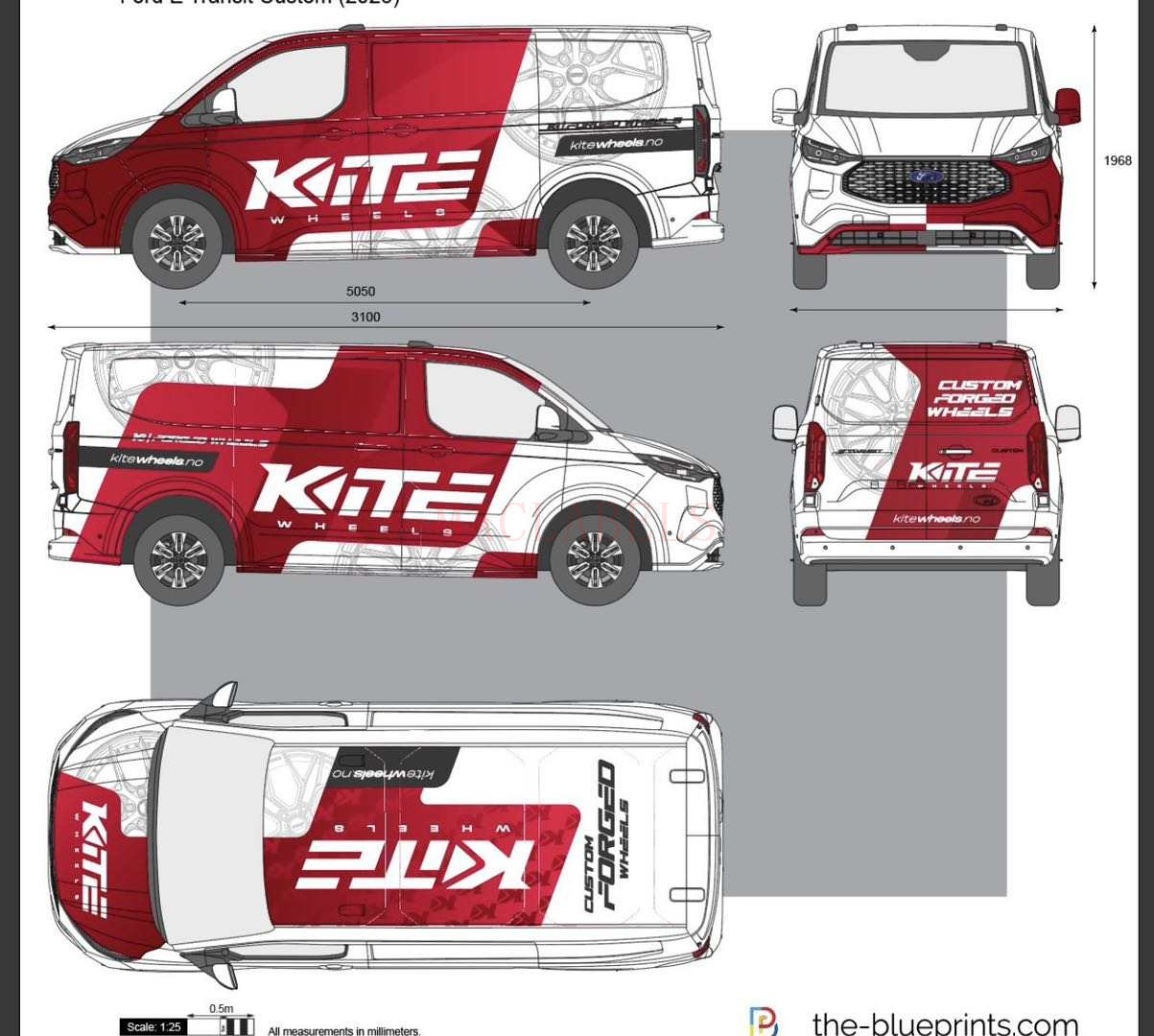

Design Support | Vehicle templates and print-ready files included |
Full vehicle wraps are chosen by brands that want maximum visibility and a complete visual transformation:
Box TrucksSemi TrailersCargo VansBusesFood TrucksRace TrailersCorporate FleetsMobile Billboards

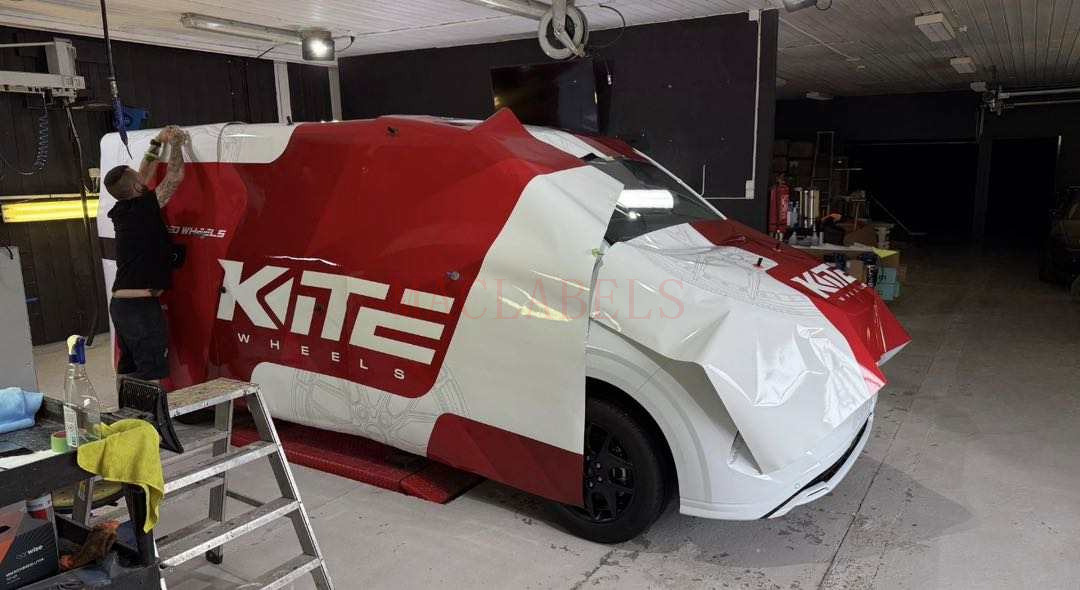

Full wraps begin with vehicle template design, followed by HP Latex printing on cast vinyl in large panels. Graphics are laminated with 3M cast overlaminate, then precision-cut to match panel shapes. Installation requires experienced installers and may be supported by our technical team.
Soap-water spray bottle, squeegee, heat gun, utility knife, lint-free cloth, masking tape, measuring tape, wrap glove or felt squeegee.
Thorough vehicle prep. Wash, clay bar and degrease the entire exterior. Remove wax, grease and contaminants.
Remove obstacles. Remove door handles, mirrors, lights and trim where possible for cleaner edges.
Panel-by-panel layout. Identify each printed panel and match it to the corresponding vehicle section.
Wet or dry application. Use wet application for large flat areas and dry application for compound curves as needed.
Stretch and conform. Use heat gun to warm vinyl and stretch it over curves, recesses and rivets.
Trim and tuck. Cut excess material around edges, door jambs and panel gaps; tuck edges where possible.
Post-heat. Re-heat all stretched areas and edges to set the vinyl memory and ensure adhesion.
Cure. Keep the vehicle dry for 48 hours; avoid high-pressure washing for one week.
Full wraps should be installed by trained professionals for best results.
Do not overstretch vinyl in recessed areas; use heat strategically.
Use knifeless tape for clean cuts on panel edges and color breaks.
