Upgrade your machinery and enclosures with Mactape’s Custom 3M™ Vinyl Industrial Equipment Labels. Engineered for extreme environmental resilience, every label is built on an authentic 3M vinyl substrate, printed with eco-friendly HP Latex inks, and protected by a 3M cast film overlaminate.
Whether you need arc flash warnings for energy storage cabinets, fleet branding for commercial vehicles, or rating plates for EV chargers, our labels provide a 7-year outdoor guarantee against fading, peeling, or cracking. Fully tested and compliant with UL969 standards for marking and labeling systems.
The outdoor lifespan of an industrial decal depends on three core manufacturing steps. Mactape controls all three to ensure zero field failures:
Process Phase | The Mactape Standard | Common Market Alternatives |
Base Substrate | 100% Genuine 3M Vinyl Film (No substitute brands) | Low-grade domestic PVC or "3M-compatible" films |
Print Technology | Original HP Latex Equipment & OEM Inks (Certified colorfastness) | Solvent/eco-solvent inks (Fades in 1 to 2 years) |
Overlaminate | Premium 3M™ Cast Film Overlaminate (Superior conformability) | Calendered laminate or no overlaminate layer |
Compliance | UL969 Certified for outdoor durability, adhesion, and legibility | No third-party certification or weather testing |

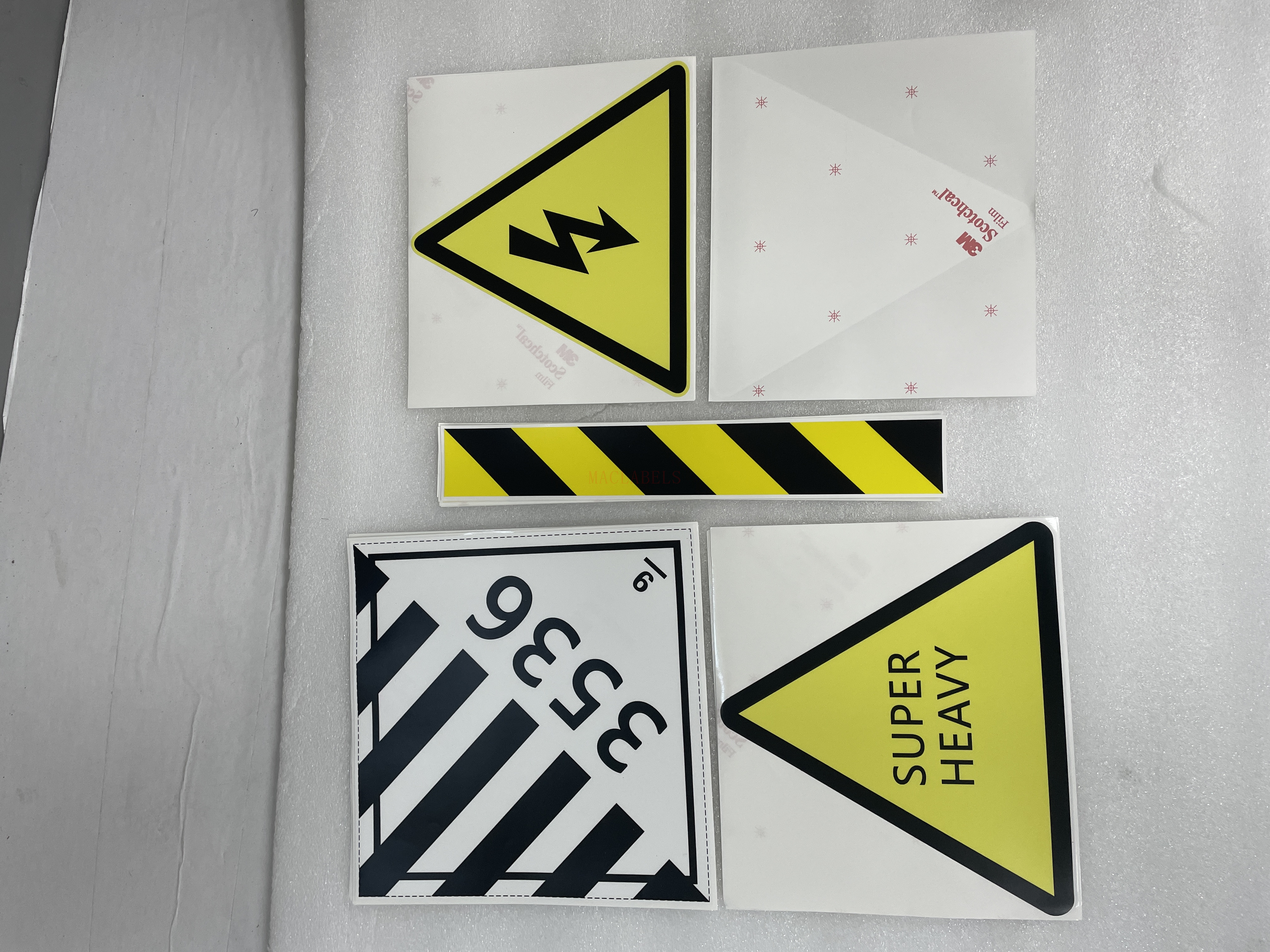

Arc flash warning decals, high-voltage indicators, grounding symbols, and operating instructions for energy storage containers exposed to severe outdoor sunlight. The 7-year lifespan ensures complete alignment with your cabinet's operational cycle without requiring re-labeling.

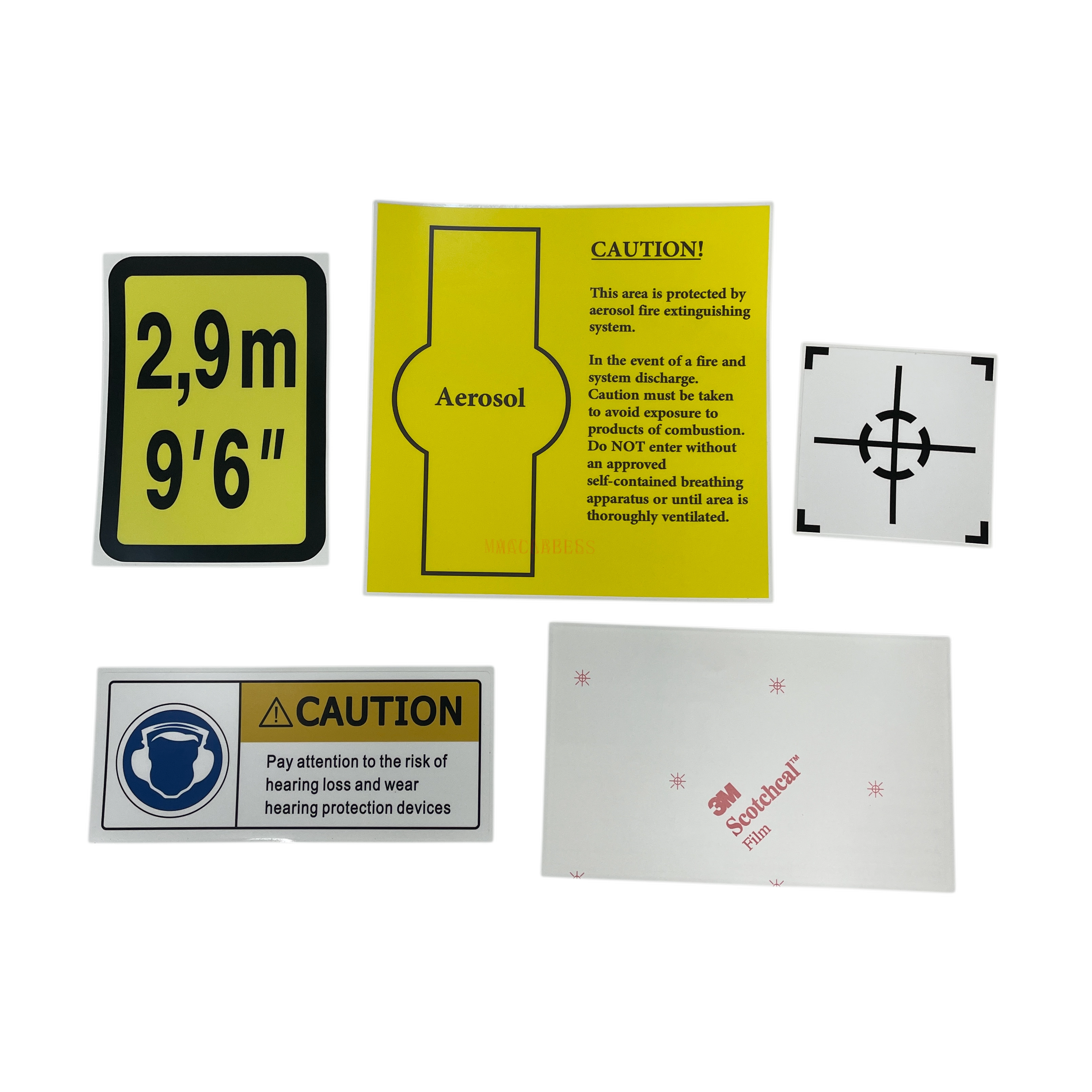

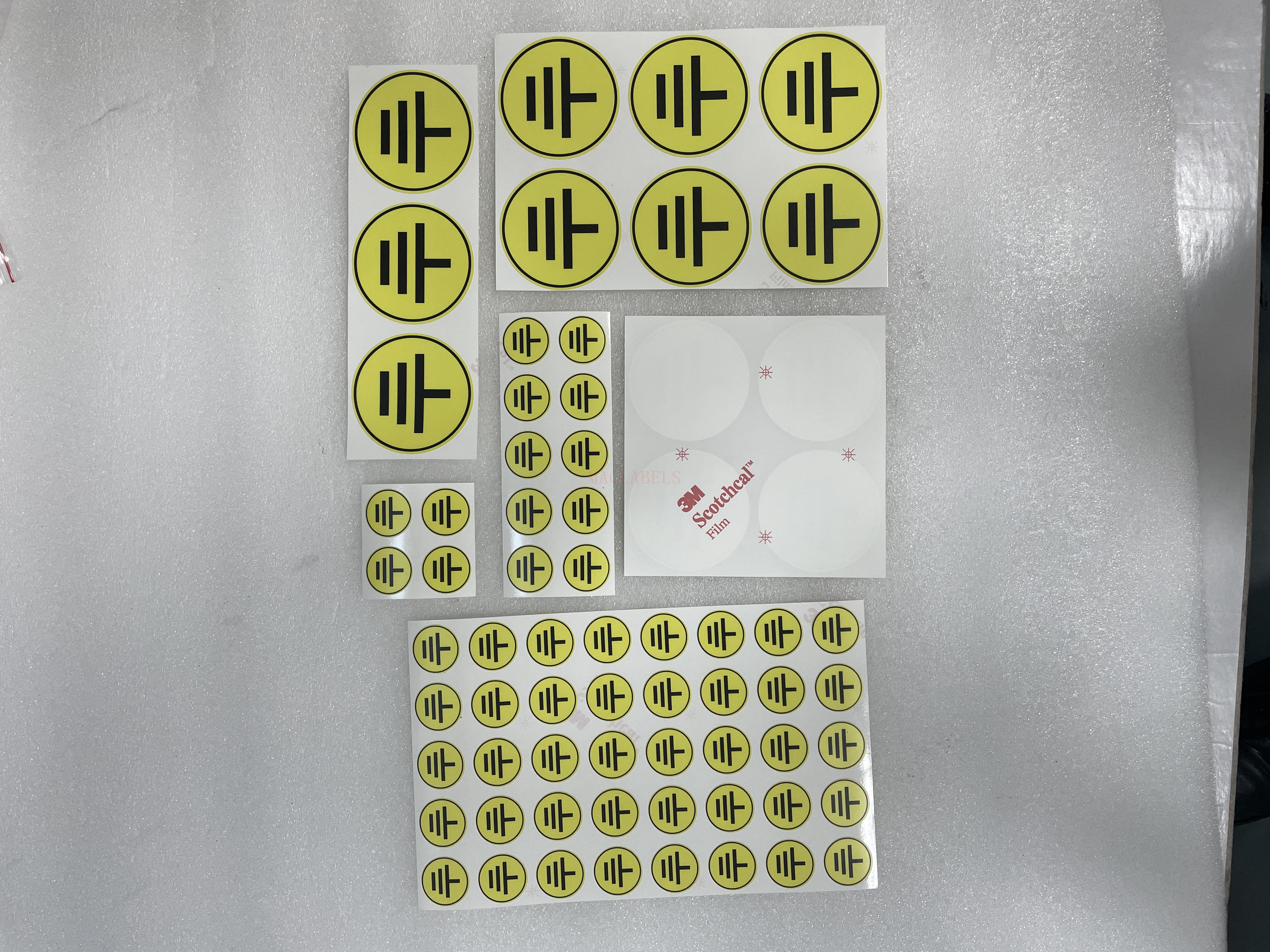

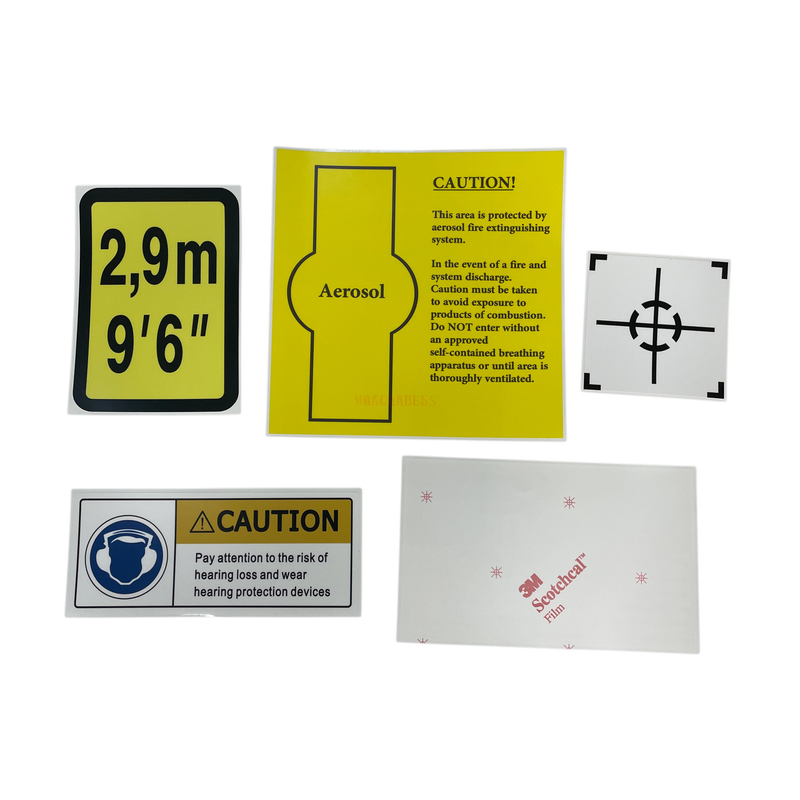

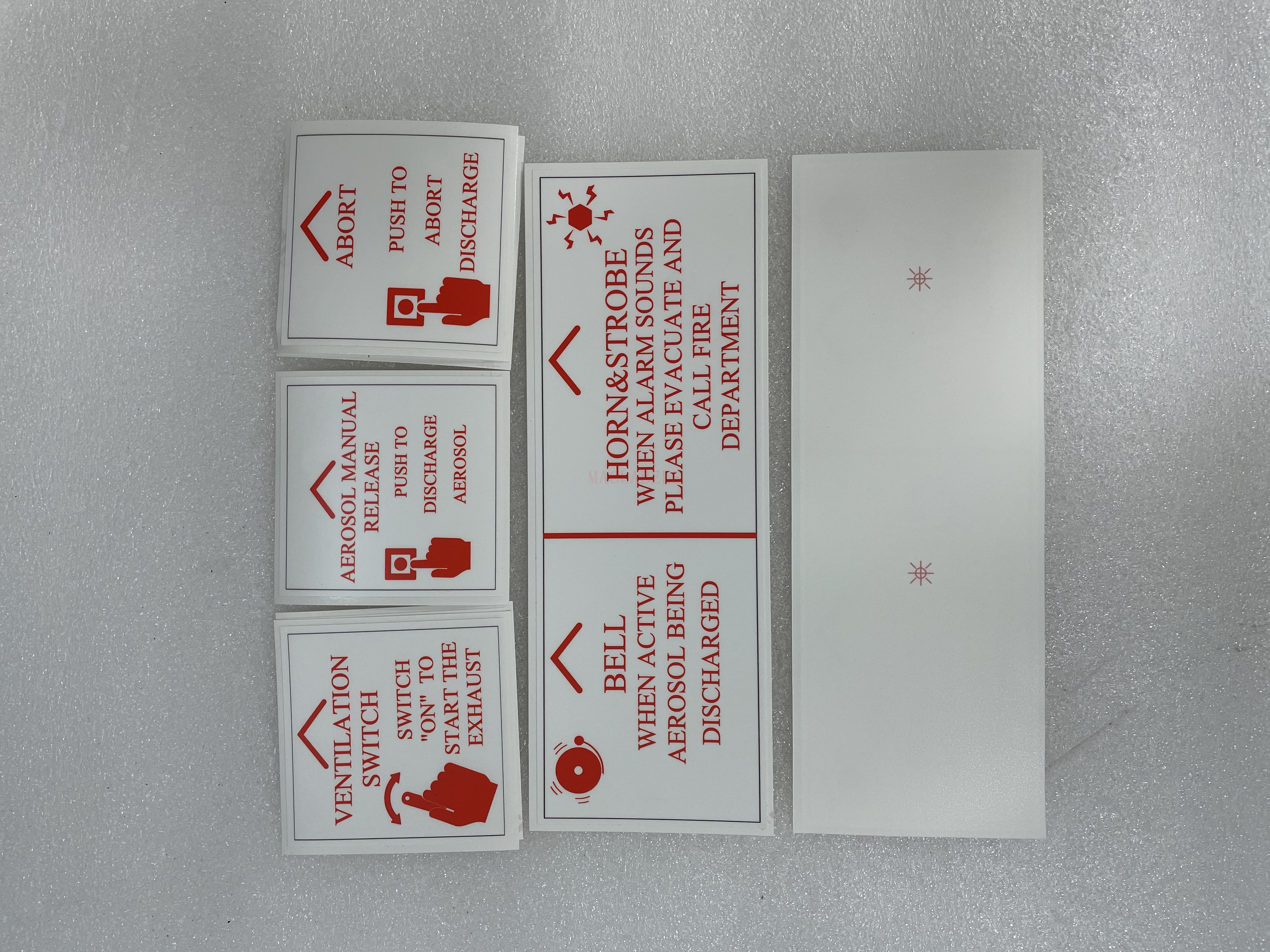

Typical Graphics: Arc flash warnings, high-voltage risk labels, aerosol fire suppression instructions, grounding tags.
Charging pile graphics face constant UV exposure, rain, and thermal fluctuations. The combination of HP Latex inks and 3M cast overlaminates guarantees crisp information visibility over the equipment's entire service life.

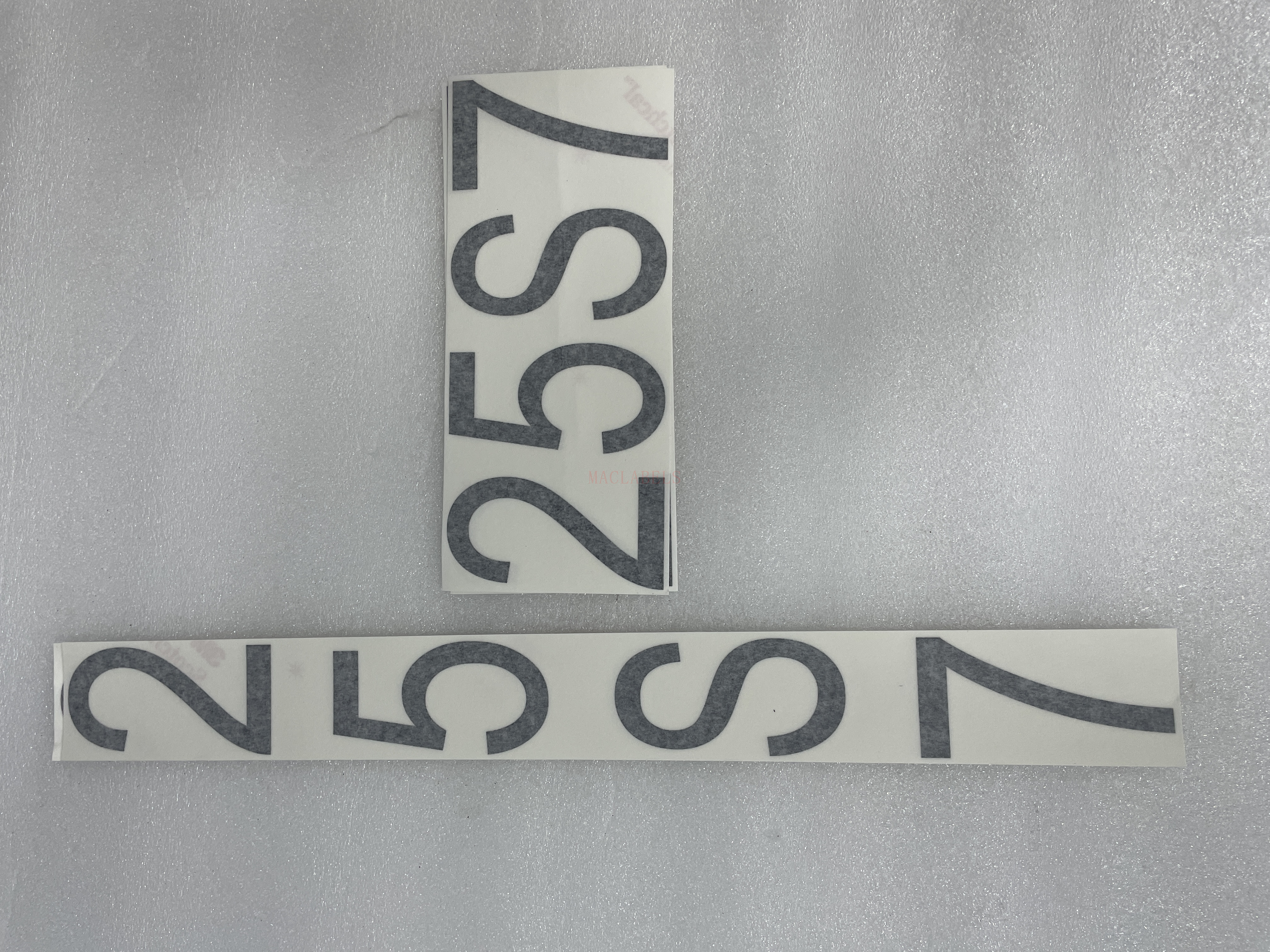

Fleet numbers, safety markings, and reflective warning decals for trucks and vans. The 3M cast film system conforms effortlessly over curved body contours and withstands commercial truck washes and road salts.
Machinery specification plates, control panel overlays, and pipeline identification stickers built to endure chemical contact, mechanical friction, and extreme temperature shifts.
Dimension | Available Options |
Sizing | Custom dimensions from 2 cm grounding tags up to 2 m cabinet wraps |
Shapes | Round, triangular safety signs, rectangular rating plates, custom die-cut shapes |
Coloring | Full HP Latex color spectrum with custom spot-color matching |
Surface Finish | Matte, Gloss, or Textured protective finishes |
Specialty Media | Add reflective or luminescent (glow-in-the-dark) base layers |
Order Volume | Sample orders supported; tiered volume pricing available |
Feature | Standard Printed Decals | Mactape Industrial Vinyl Labels |
Outdoor Lifespan | 1 to 3 Years | 7-Year Warranty |
Certification | None | UL969 Certified |
Base Material | Standard PVC / Substitute Films | Authentic 3M™ Vinyl Base Film |
Printing Method | Solvent / Eco-Solvent Inks | Original HP Latex Digital Inks |
Lamination | Calendered Film or Unlaminated | 3M™ Cast Overlaminate Film |
Resistance Profile | Prone to fading, peeling, & brittleness | Full UV, temperature, and chemical endurance |
To ensure your labels achieve their full 7-year service life, follow these professional installation procedures:
Ambient Temperature: Apply between 10°C and 38°C (Optimal: 20°C to 30°C). Low temperatures reduce initial adhesive tack; high temperatures over-stretch the film.
Surface Cleaning: Thoroughly degrease and clean the target panel using Isopropyl Alcohol (IPA). Do not use silicone-based cleaners, as silicone residues permanently ruin adhesive bonding.
Required Tools: Hard & soft squeegees, utility knife, low-tack masking tape, heat gun (mandatory for curved surfaces), lint-free microfiber cloths.
Positioning: Peel back approximately 5 cm of the release liner at one end. Secure the label in position using low-tack masking tape.
Initial Tacking: Tack the exposed adhesive corner onto the surface and squeegee outward from the center in a fan motion.
Progressive Unrolling: Slowly peel away the liner in 10-15 cm increments, squeegeeing each section firmly into place.
Air Displacement: Using a microfiber-wrapped squeegee, apply firm overlapping X-Y strokes to push out trapped air and seat the adhesive.
Edge Sealing: Run the squeegee along all outer edges at a 45° angle to lock down the edges against water ingress.
Mix Application Solution: Mix pure water with 3-5 drops of baby shampoo (or dedicated slip solution) in a spray bottle.
Substrate & Adhesive Spray: Spray the installation solution generously over the target surface and the exposed adhesive side of the label.
Position & Squeegee: Slide the wet label into exact alignment. Using a soft squeegee, push the liquid out from the center to the edges using firm, overlapping strokes.
Curing Window: Allow 24 hours for moisture to evaporate and full bond strength to build before cleaning or vehicle washing.
Q: What does the 7-year warranty cover?
A: Our warranty covers severe fading (color shift E > 8), lamination delamination, substrate embrittlement, and adhesive lifting under normal weather exposure. It excludes mechanical gouging or extreme chemical immersion.
Q: What is the UL969 standard?
A: UL969 is Underwriters Laboratories' benchmark standard for the durability of marking and labeling systems. It tests adhesion, weatherability, chemical resistance, and legibility under severe conditions.
Q: What is the lead time for sampling and production?
A: Standard digital samples take 3 to 5 business days. Bulk manufacturing orders are completed within 7 to 15 business days depending on order complexity.
