7-Year Outdoor Durability UL969-Certified 3M™ Vinyl Energy Storage Cabinet Labels

Weatherproof Industrial Safety Decals & EV Enclosure Graphics

Maximize the outdoor service life of your industrial enclosures and renewable energy systems with Mactape’s 7-Year Outdoor 3M™ Vinyl Energy Storage Cabinet Labels. Built on authentic 3M Vinyl substrate, printed using eco-friendly HP Latex technology, and laminated with a protective 3M Cast Film overlaminate, these heavy-duty safety labels pass strict UL969 international standards for permanent marking and durability.

Designed for demanding environmental conditions, our labels withstand extreme temperatures (-40°C to +80°C), intense UV radiation, driving rain, and salt spray—ensuring zero fading, peeling, or lifting on energy storage containers, EV charging stations, and outdoor power cabinets.

Core Product Advantages

• 7-Year Outdoor Warranty: Manufactured using genuine 3M outdoor-grade films and cast laminates, guaranteed to withstand harsh environmental exposure without color fading, cracking, or edge curl for up to 7 years.

• UL969 Certified Safety Standards: Fully tested and compliant with UL969 marking standards. Perfect for export-grade energy storage units, industrial cabinets, and electrical machinery requiring North American and international safety compliance.

• Authentic 3M Material Stack:

  • Base Film: Flexible 3M Vinyl substrate offering superior conformability and adhesion.

  • Overlaminate: High-clarity 3M Cast Film providing scratch resistance, UV protection, and anti-yellowing performance.

  • Adhesive: Genuine 3M pressure-sensitive adhesive delivering high initial tack and clean long-term performance.

• Vibrant & Eco-Friendly HP Latex Printing: Printed with original HP Latex equipment and OEM inks. Delivers high color fidelity, razor-sharp text, and scratch-resistant graphics with zero VOC emissions.

• Fully Customizable: Complete freedom over sizes, shapes, safety warning symbols, corporate branding, and custom die-cutting with smooth, burr-free edges for easy field application.

Technical Specifications

Application Sectors

Renewable Energy & Storage

• Energy storage container warning graphics & rating plates

• Battery cabinet hazard stickers & high-voltage indicators

• Power Conversion System (PCS) nameplates

• Photovoltaic (PV) solar inverter specification stickers

Industrial Machinery & Vehicle Graphics

• Electrical control box hazard labels

• Outdoor telecommunication cabinet warning decals

• Commercial fleet body wraps & safety stickers

• Equipment operating instruction badges

Installation & Surface Application Guide

Environmental Note: For best results, install in a clean environment between 15°C and 30°C with 40% to 60% relative humidity. Avoid installing in direct wind, rain, snow, or extreme temperature conditions.

Step 1: Preparation & Tooling

• Required Tools: Lint-free microfiber cloth, Isopropyl Alcohol (IPA, 75%+ concentration), felt-edge squeegee, utility knife, measuring tape, masking tape, low-temperature heat gun.

• Compatible Substrates: Smooth, flat surfaces including stainless steel, aluminum panels, glass, ABS/PC plastics, and painted/baked metal surfaces.

• Incompatible Surfaces: Porous surfaces, rough masonry, silicone-coated paints, or flaking paint surfaces.

Step 2: Surface Degreasing & Cleaning

1. Wipe away loose dust, dirt, and oil from the mounting panel.

2. Saturate a microfiber cloth with IPA/alcohol cleaner and wipe the surface in one single direction to prevent re-contaminating the target area.

3. Allow the alcohol to evaporate completely (30–60 seconds). Ensure the surface is 100% dry and oil-free.

Step 3: Positioning & Label Application

1. Measure and mark the target area using masking tape as a horizontal baseline guide.

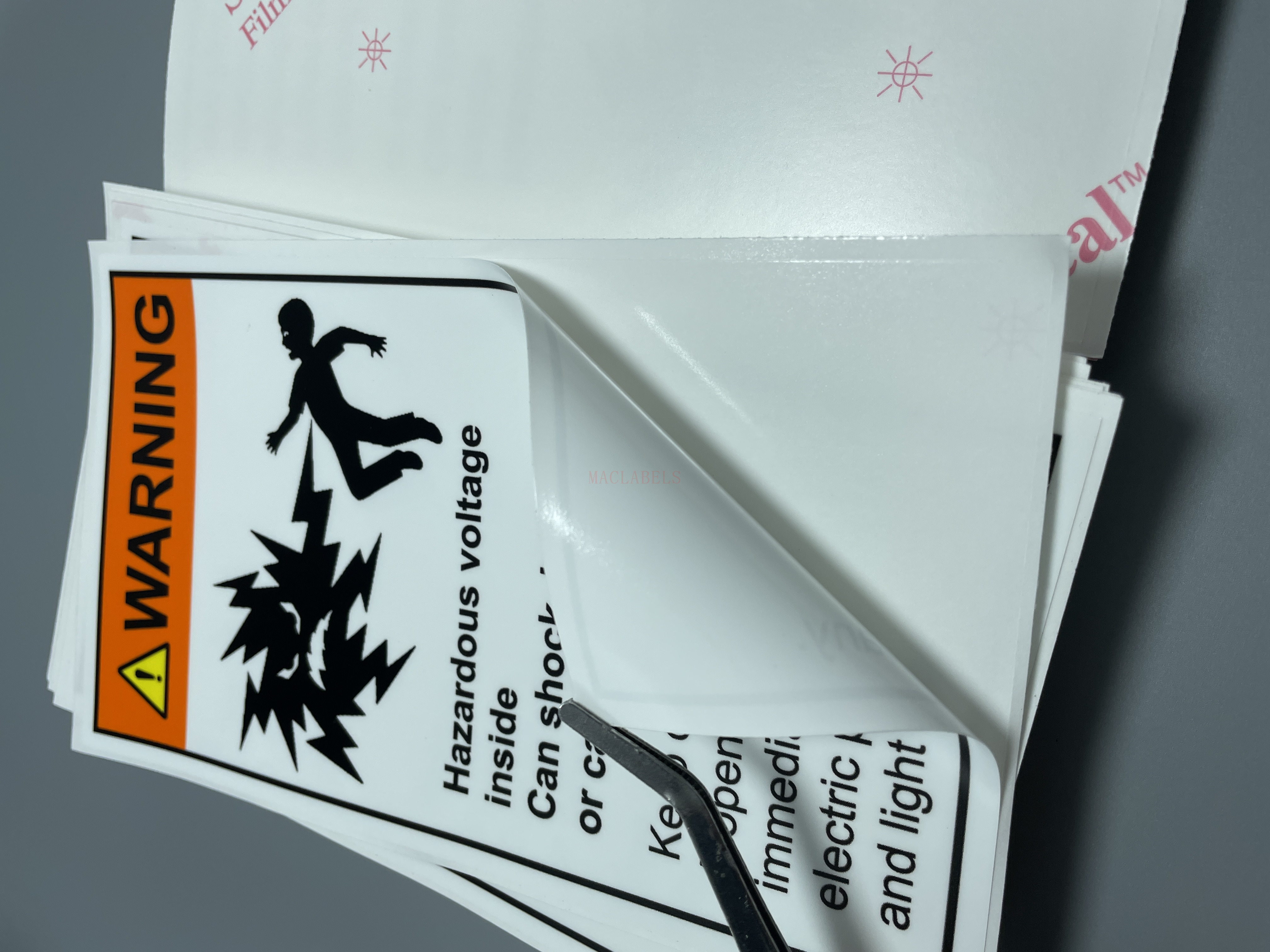

2. Peel back roughly 1/3 of the release liner, taking care not to touch the exposed adhesive with fingers.

3. Align the exposed top edge with your baseline guide, press down the top edge, and slowly peel away the remaining liner.

4. Using a felt-edge squeegee, sweep firmly from the center outward to push trapped air to the edges.

Step 4: Air Displacement & Edge Pressure

1. Perform a final firm sweep across the entire graphic, paying special attention to corners and edges.

2. For small air pockets, push them toward the edges using the squeegee. For larger bubbles, puncture the bubble with a fine pin tip and flatten with the squeegee.

3. For curved surfaces, use a heat gun set to a low heat (40°C–50°C) to soften the film slightly before squeegeeing down contours.

Step 5: Post-Installation Curing

• Inspect edges to ensure zero lifting or curling.

• Dwell Time: Do not touch, clean, or expose the label to water for 24 hours to allow the pressure-sensitive adhesive to build full bond strength.

Troubleshooting Guide
