Industry Standard Bonding: Powered by the legendary 3M™ 200MP acrylic adhesive, establishing the definitive global standard for structural bonding on metals and high surface energy (HSE) plastics.
Ultra-Precision Cutting: Fabricated within a cleanroom environment using industry-leading machinery to guarantee tightly controlled dimensional tolerances (within $\pm0.1\text{mm}$) with completely smooth, burr-free edges.
Exceptional Environment Resistance: Offers robust defense against moisture, UV aging, and harsh industrial solvents, maintaining flawless bonding elasticity across extreme high and low temperatures.
Anti-Curling PCK Liner: Utilizes heavy-duty multi-coated polycoated kraft paper (PCK) liners that eliminate wrinkling and curling in high-humidity conditions, maximizing die-cutting yields.
Bespoke Production Flexibility: Certified original 3M supply supporting any irregular custom shapes, backing sheets, or precision coils with a flexible minimum order quantity starting at 1 PC.
Model | Substrate Type | Adhesive Thickness | Liner Type & Thickness | Key Features & Applications |
467MP | Adhesive Transfer (None) | 0.05 mm (2.0 mil) | 58# PE Coated Kraft (0.11 mm) | Thin design, excellent thermal shock resistance. Ideal for nameplates, membrane switches, and flexible circuits. |

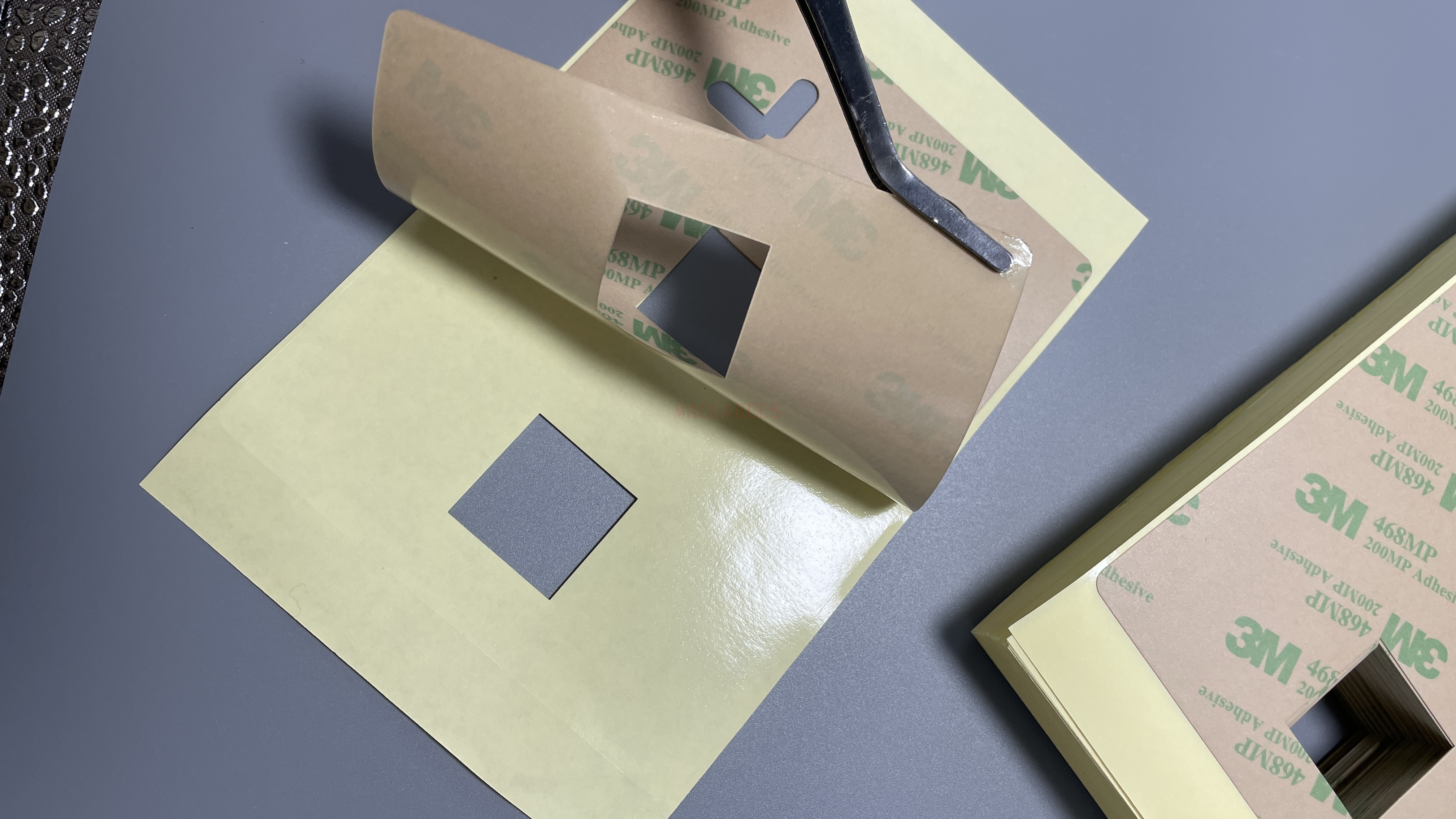

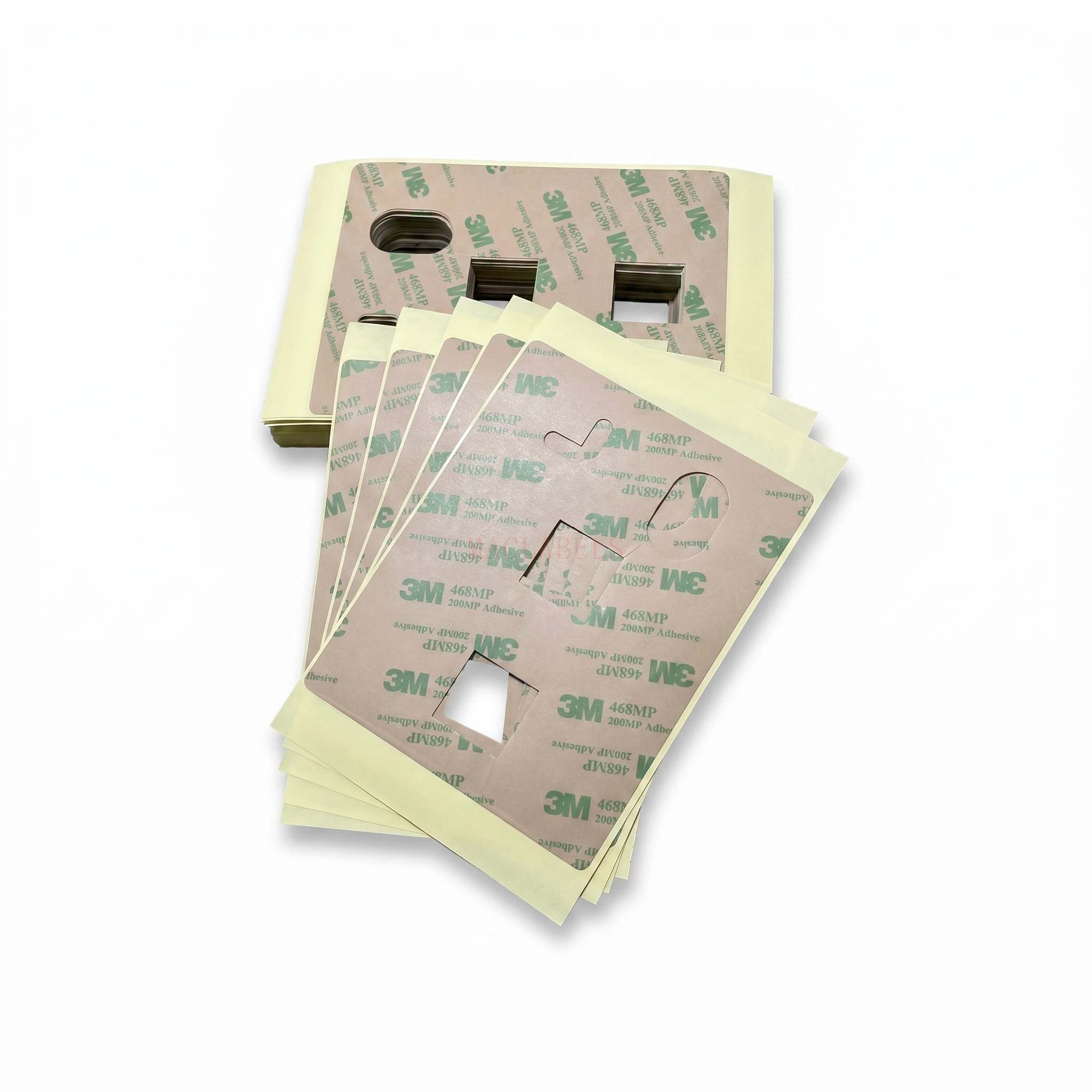

468MP | Adhesive Transfer (None) | 0.13 mm (5.0 mil) | 58# PE Coated Kraft (0.11 mm) | Thickened version of 467MP with higher peel strength. Used for heavy-duty metal overlays and component bonding. |
7952MP | Adhesive Transfer (None) | 0.058 mm (2.3 mil) | Double-layer 58# PCK | Short-term heat resistance up to 204°C. Perfect for graphic attachments and membrane switch spacers. |
7955MP | Adhesive Transfer (None) | 0.13 mm (5.0 mil) | Double-layer 58# PCK | Outstanding performance on HSE plastics and metals. Resists heavy-duty structural loads under severe conditions. |
7969MP | Adhesive Transfer (None) | Ultra-Thick Adhesive Layer | Double-layer 58# PCK | Engineered for rough, uneven surfaces requiring extreme gap-filling and maximum adhesive wet-out. |
7956MP | Adhesive Transfer (None) | Variable Industrial Thickness | Double-layer 58# PCK | Complements 7955MP configurations, offering expanded thickness profiles for diversified architectural layouts. |
9495MP | Clear PET Film Carrier | 0.14 mm (5.7 mil total) | Double-layer 58# PCK | Dual-coated formulation. Delivers elite dimensional stability, chemical defense, and seamless aesthetics for LCDs. |
Surface Treatment: Ensure the bonding substrate is completely clean, dry, flat, and free of dust, grease, or oil contaminants prior to lamination.
Operational Environment: Execute the assembly at stable room temperatures. Avoid working in sub-zero cold, wet, or heavily airborne-dust heavy zones.
Lamination Pressure: Align the tape carefully (re-positionable for a short time initially) and apply firm, even pressure to ensure absolute contact without air bubbles.
Curing Timeframe: Allow the bond line to rest undisturbed for 24 hours to achieve maximum physical cross-linking. Avoid moisture or mechanical stress during this window.
Substrate Matching: Excellently matches metals, acrylics, ABS, and polycarbonates. Note: Cross-testing is recommended for low surface energy (LSE) materials before mass deployment.
Storage Parameters: Retain products within original protective packaging. Store at 21°C ($70^\circ\text{F}$) and 50% relative humidity for a validated shelf life of 24 months from the manufacturing date.
