100% Closed-Cell Waterproofing: Engineered with a solid, air-and-waterproof closed-cell acrylic matrix that blocks moisture and gas transfer, delivering IPX7-rated permanent sealing protection.
Viscoelastic Energy Absorption: Simultaneously flows into microscopic surface pores to optimize adhesive wet-out and acts as an elastic cushion to absorb dynamic shock loads, dampen vibrations, and distribute mechanical stress evenly.
Thermal Expansion Accommodation: The ultra-flexible, compliant acrylic foam core flexes naturally to absorb differences in thermal expansion rates when bonding dissimilar materials like metals to plastics.
Elimination of Mechanical Fastening: Replaces traditional screws, rivets, and spot-welding processes, removing time-consuming tasks like drilling, grinding, screwdriving, and post-assembly cleanup.
Immediate Operational Handing: Achieves excellent initial green strength upon application, allowing bonded components to move instantly to the next assembly stage without extended structural clamping.
Elite Chemical & UV Stability: Inherently stable acrylic chemistry provides unmatched long-term anti-aging resistance, preventing yellowing, cracking, or loss of holding power under constant UV exposure and chemical weathering.
Extreme Substrate Compatibility: Bonds seamlessly across a vast array of high, medium, and low surface energy materials, including powder-coated surfaces, aluminum, stainless steel, glass, polycarbonate, ABS, and sealed masonry or woods.

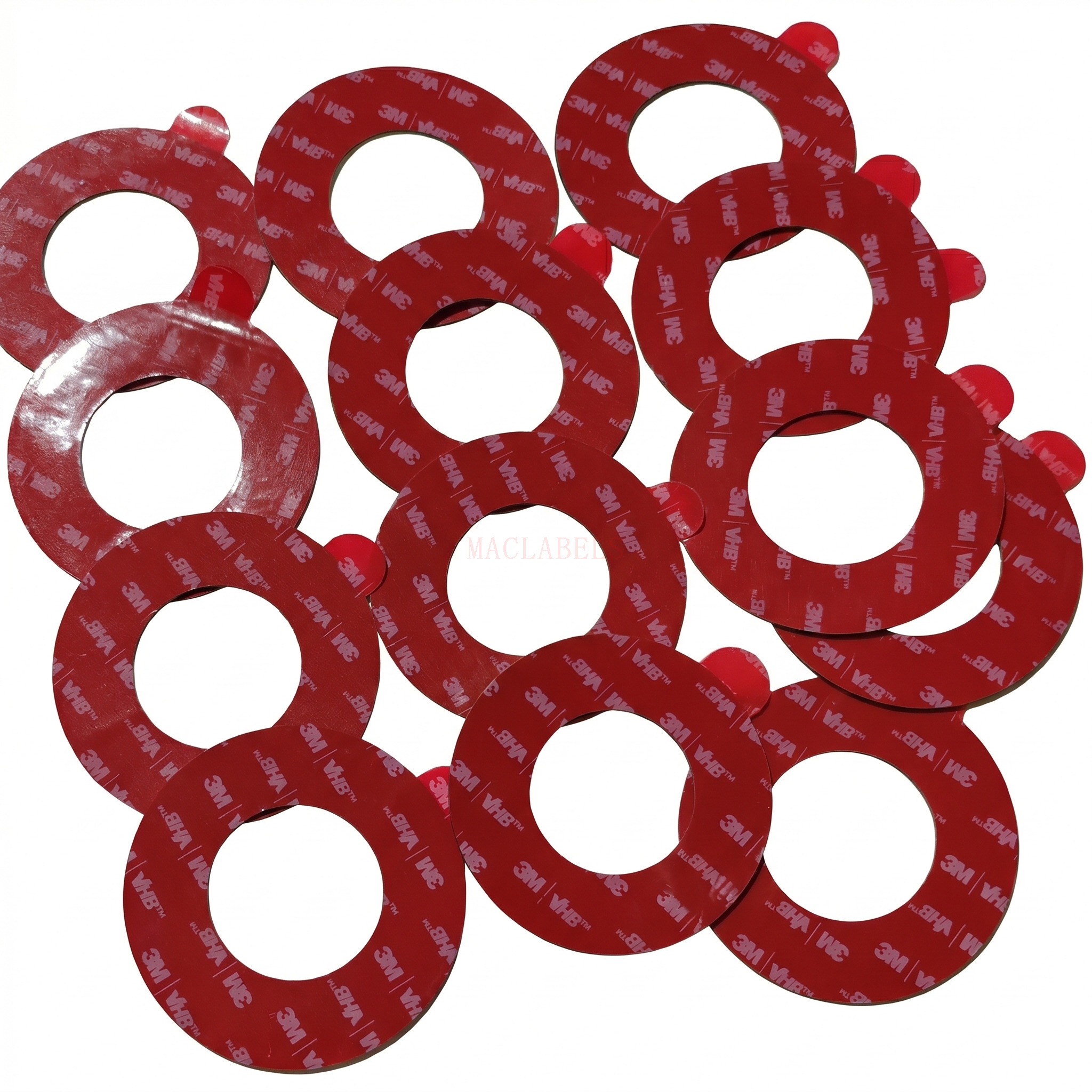

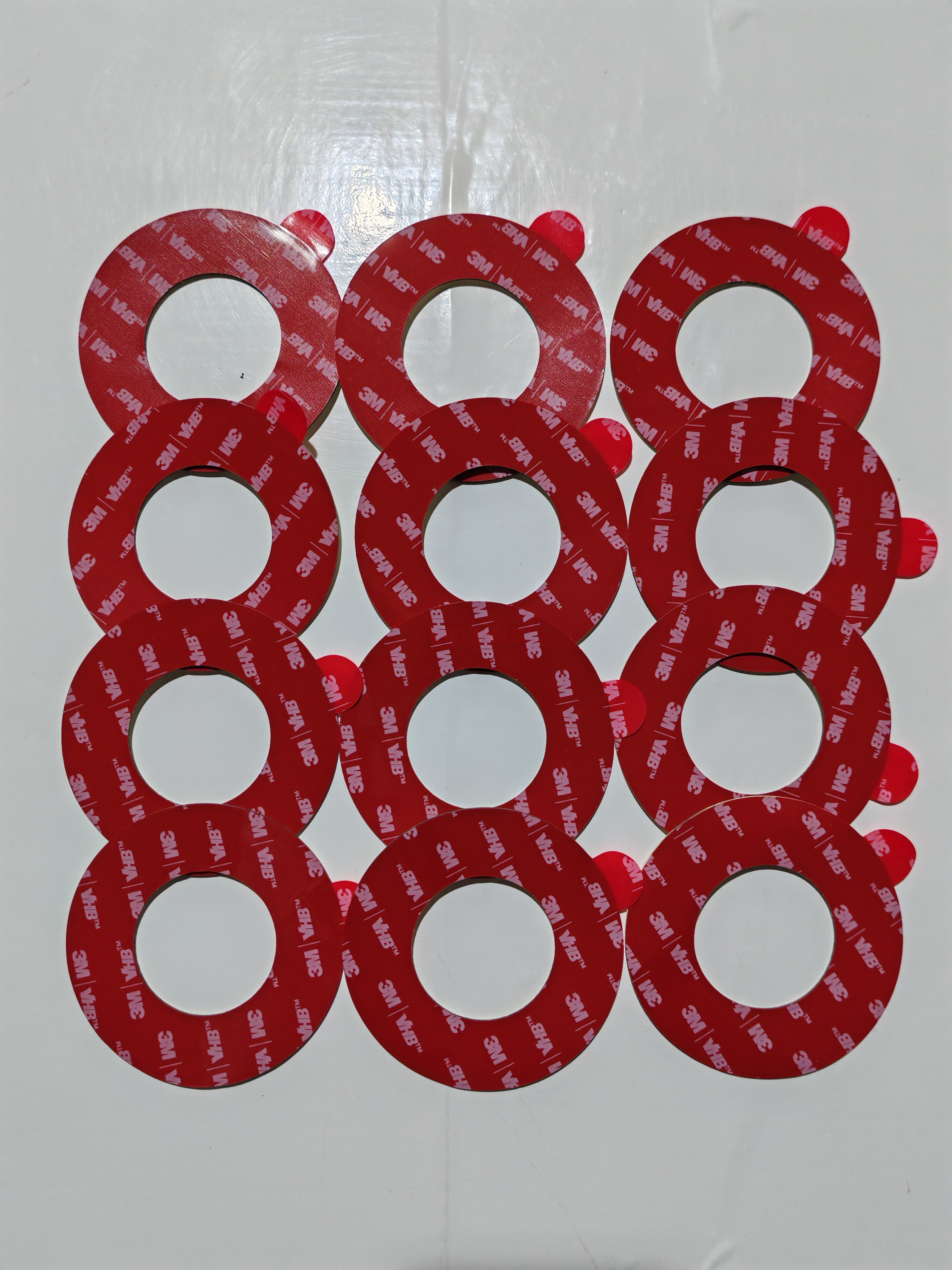

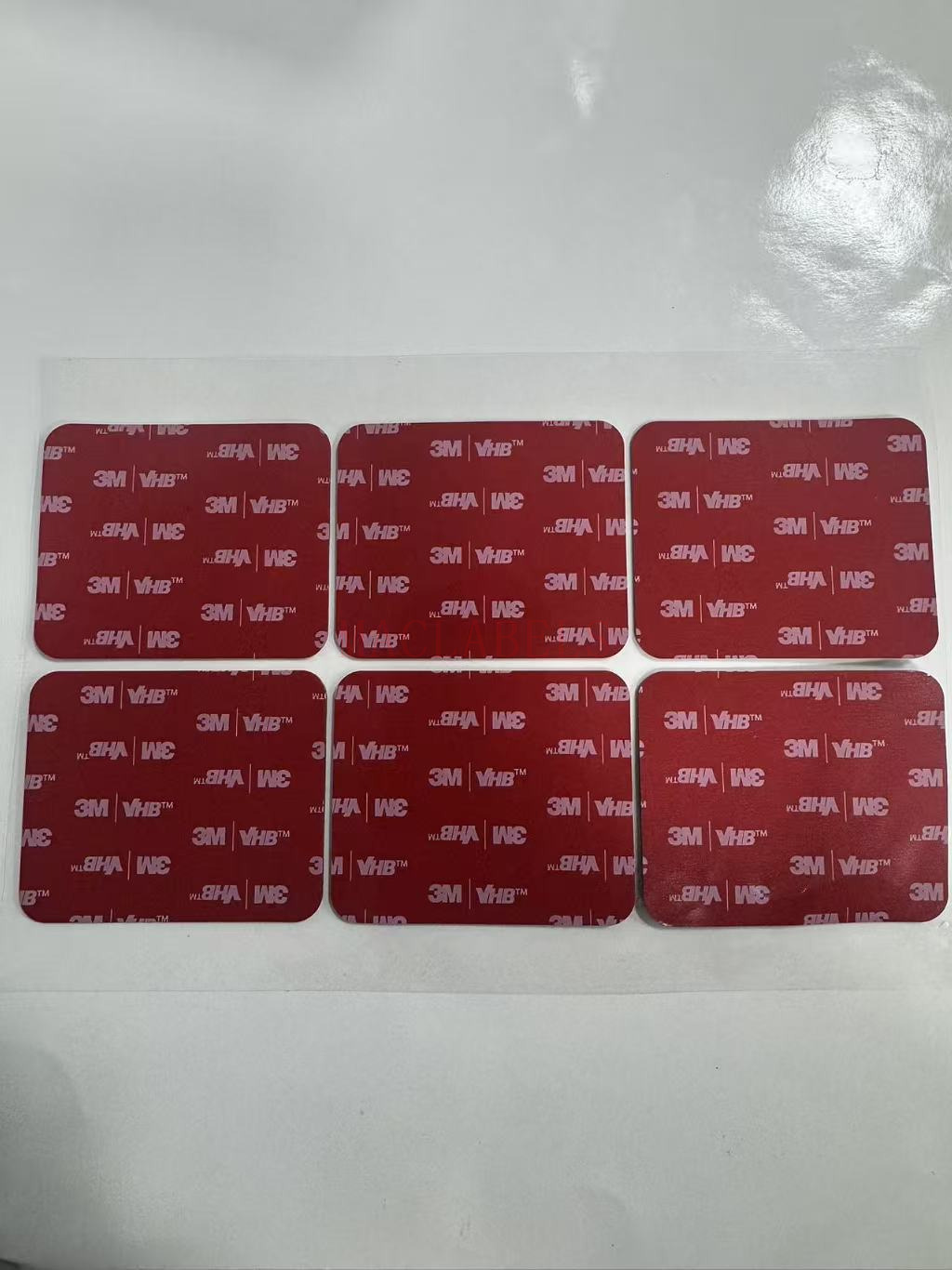

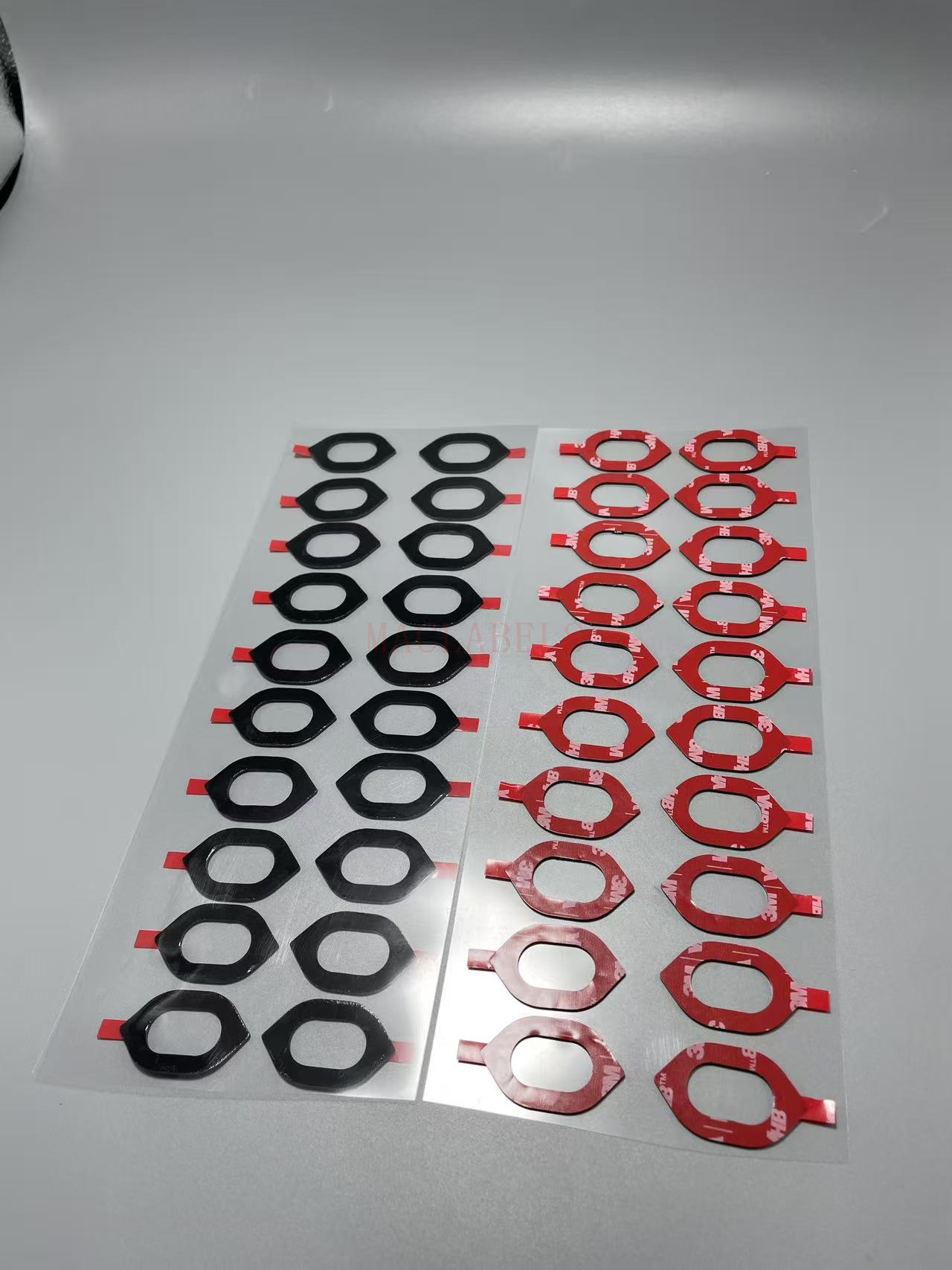

Precision Cleanroom Fabrication: Processed via industry-leading flatbed or rotary die-cutting systems with tolerances strictly managed within tight limits, delivering crisp, burr-free edges without foam delamination. Delivered at an ultra-low MOQ of 1 PC.
Model | Foam Tape Thickness | Primary Color Options | Standard Master Size | Thermal Limits (Short / Long Term) | Specialized Substrate Fit & Applications |
5915 | 0.4 mm | Black | 23 in × 36 yd | 149°C / 121°C | Thin-profile design. Best for difficult powder-coated paints, stainless steel, glass, and ceramics. |
5925 | 0.64 mm | Black (5925) / White (5925WF) | 23 in × 36 yd | 149°C / 121°C | Specifically balanced for HSE, MSE, and LSE plastics. Ideal for securing LCD polycarbonate lenses and control panels. |
5952 | 1.1 mm | Black | 23 in × 36 yd | 149°C / 121°C | High-performance flagship tape. Delivers a flawless balance of shear strength and conformability; exceptional for PE and PP. |
5962 | 1.6 mm | Black | 23 in × 36 yd | 149°C / 93°C | Thickest version in the 59 line. Engineered with maximum gap-filling capabilities to bridge heavy irregularities on uneven surfaces. |
Surface Preparation: The target substrate surface must be completely clean, dry, flat, and entirely free of dust, scale, grease, or heavy oils. Clear away contaminants using a 50:50 Isopropyl Alcohol (IPA)/water wipe before application.
Environmental Conditions: Perform the bonding installation at normal room temperatures. Avoid working in sub-zero cold, wet, or dust-heavy areas, as cold temperatures can restrict adhesive flow and lower initial tack.
Lamination Pressure: Align the die-cut piece precisely with the target position and apply firm, heavy, uniform pressure (minimum 15 psi) across the entire bond line using a roller or press to eliminate air gaps.
Curing Timeframe: Allow the bond line to rest undisturbed for 24 hours to develop full chemical cross-linking and reach structural holding capacity. Avoid mechanical shear loads, vibration, or liquid contact during this curing window.
Substrate Matching: Highly recommended for mixed-material bonding. For critical low surface energy (LSE) materials like raw polyethylene or polypropylene, performing localized cross-testing or using a 3M tape primer is advised before full mass assembly.
Storage Parameters: Keep the tape stored inside its original protective packaging. Maintain ambient warehouse conditions at 21°C and 50% relative humidity for a validated shelf life of 24 months from the initial date of manufacture.
