Printing UL969 nameplate labels that consistently pass safety audits requires more than a standard desktop printer. It demands the right combination of label material, printing technology, surface preparation, and finishing processes. Manufacturers exporting electrical and electronic products to North America must ensure their nameplate labels survive UL audit inspections without fading, peeling, or becoming illegible. This guide explains how to select the right printing method, choose durable materials, prepare surfaces correctly, and apply protective finishes to produce UL969-compliant labels that withstand real-world conditions.
Material selection drives audit success. Matte silver PET and polyimide substrates resist heat, solvents, and UV exposure far better than paper-based alternatives, ensuring long-term legibility.
Printing method determines durability. Screen printing, thermal transfer, and laser engraving each offer distinct advantages for UL969 labels depending on volume, substrate, and environmental requirements.
Overlamination extends label life. Adding a protective laminate layer prevents chemical abrasion, UV fading, and mechanical wear during the product's operational lifespan.
UL969 is the Underwriters Laboratories standard governing safety-related labels attached to certified products. A nameplate label carries critical information: the manufacturer's name, model number, electrical ratings, UL certification marks, and traceability codes. During factory safety audits, inspectors verify that these labels remain permanently affixed, legible, and correctly formatted. Failure to meet UL969 label requirements can delay certification, trigger re-inspection, or block market access.
The core challenge is producing labels that maintain legibility and adhesion throughout the product's expected lifecycle—often 10 to 20 years for industrial equipment. Labels must resist heat generated by the product, ambient UV exposure, cleaning solvents, and mechanical abrasion from handling. UL969-certified label materials are engineered specifically to meet these demands, but material selection alone is insufficient without compatible printing and finishing processes.
The substrate forms the foundation of a durable UL969 nameplate. Three primary materials dominate industrial applications, each with distinct performance profiles suited to different operating environments.
Matte silver PET offers an optimal balance of printability, chemical resistance, and moderate heat tolerance. It withstands continuous operating temperatures up to 150°C and resists most industrial solvents, oils, and cleaning agents. Its matte surface provides excellent ink adhesion for screen printing and thermal transfer processes. This substrate remains the most common choice for electronics nameplates, power supply labels, and appliance markings where moderate heat and chemical resistance are sufficient.
Polyimide substrates tolerate extreme temperatures up to 260°C and beyond, making them essential for nameplates on motors, transformers, generators, and components near heat sources. They resist solder flux, flux residues, and most solvents encountered during PCB assembly and rework. However, polyimide costs significantly more than PET, so it should be reserved for applications where high-temperature performance is genuinely required.
Standard polyester films offer good dimensional stability and printability for general-purpose nameplates at lower cost. Vinyl substrates provide conformability for curved surfaces but offer inferior heat and chemical resistance compared to PET. For products with complex contours or outdoor exposure requirements, vinyl-based overlaminated labels may provide better long-term durability than uncoated rigid substrates.
The printing method directly affects label legibility, durability, and audit acceptance. Each technology presents trade-offs in resolution, cost, chemical resistance, and production volume efficiency.

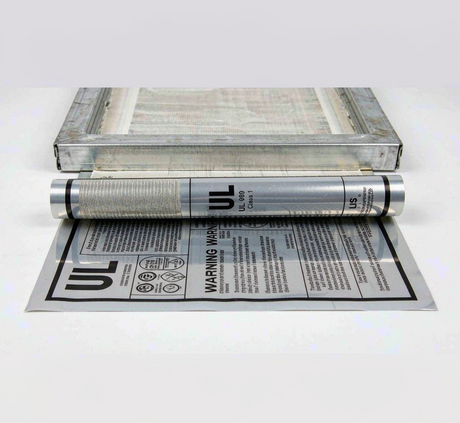

Screen printing deposits thick ink layers that resist abrasion, UV fading, and chemical exposure. It produces consistent, opaque text and graphics even on dark substrates. For UL969 nameplates requiring bold safety warnings and mandatory compliance marks, screen printing offers unmatched visual permanence. Setup costs make it economical for runs of 50 labels or higher, but the per-unit cost drops substantially at volume. Screen-printed labels with UV-cured inks perform exceptionally well in outdoor and industrial environments.
Thermal transfer uses heat to transfer resin or wax-resin ink from a ribbon onto the label substrate. Resin ribbons produce highly durable, chemically resistant prints suitable for UL969 compliance. This method excels at variable data: serial numbers, batch codes, barcodes, and QR codes that change between labels. Thermal transfer works well for low to medium volumes and prototyping where screen printing setup is impractical. The key is matching ribbon chemistry to substrate type—resin ribbons for PET, specialized high-performance ribbons for polyimide.
UV inkjet printing cures ink instantly with ultraviolet light, producing durable prints without the setup time of screen printing. It handles variable data natively and prints full-color graphics if required. Laser printing and engraving create permanent marks by altering the substrate surface rather than depositing ink, offering extreme durability. For UL969 labels, laser-marked substrates provide the highest resistance to chemical and thermal degradation since the mark becomes part of the material itself rather than a surface layer.
Printing Method | Durability | Variable Data | Best For | Volume Sweet Spot |
|---|---|---|---|---|
Screen Printing | Very High | No | Static safety marks, compliance text | 50+ labels |
Thermal Transfer (Resin) | High | Yes | Serial numbers, barcodes, variable ratings | 1–10,000 labels |
UV Inkjet | Moderate–High | Yes | Full-color graphics, short runs | 1–500 labels |
Laser Marking | Highest | Yes | Permanent marks on polyimide/PET | Any volume |
Even the best printing process fails if the label substrate bonds poorly or the print surface is contaminated. Surface preparation directly determines whether labels peel off during thermal cycling or become illegible from chemical contact.
Remove oils, mold release agents, and dust from the target surface using isopropyl alcohol or a dedicated industrial degreaser. For metal substrates, light abrasion with fine grit followed by solvent wiping improves mechanical adhesion. Plastic surfaces, particularly polypropylene and polyethylene, may require flame treatment or plasma activation to raise surface energy above 38 mN/m for reliable adhesive bonding.
Textured and powder-coated surfaces present the greatest adhesion challenge. Smooth, glossy surfaces offer limited mechanical bonding, while overly rough surfaces reduce contact area and create stress concentration points. For textured surfaces, rubber-based adhesives or foam-backed label materials conform better to surface irregularities than thin acrylic adhesive films. When applying labels to curved surfaces, select thinner substrates with aggressive acrylic adhesives that maintain intimate contact during application.
Overlamination adds a transparent protective film over the printed surface, dramatically extending label life in harsh environments. For UL969 nameplates destined for outdoor use, chemical exposure, or frequent cleaning, overlamination transforms a moderately durable label into one that withstands years of abuse.
Polyester overlaminates offer excellent UV resistance and dimensional stability, making them ideal for outdoor nameplates. Polycarbonate overlaminates provide superior flexibility and conformability for curved surfaces. Matte overlaminates reduce glare and improve readability under bright lighting, while gloss finishes enhance color saturation and visual impact. The overlaminate adhesive must be chemically compatible with both the label substrate and the printed ink to prevent delamination at the edges.
For applications involving frequent washdown, chemical splash, or prolonged moisture exposure, edge sealing prevents moisture ingress between the label and the overlaminate. Thermal edge sealing or perimeter adhesive application creates a complete moisture barrier. This step is particularly important for labels on commercial kitchen equipment, medical devices, and outdoor electrical enclosures.
Many UL969 label failures during safety audits trace back to preventable errors in material selection, printing, or application. Understanding these pitfalls helps manufacturers avoid costly re-inspection and rework.
Using paper substrates. Paper labels absorb moisture, yellow under heat, and tear easily. UL969 nameplates must use synthetic substrates like PET or polyimide for long-term durability.
Omitting overlamination. Unprotected printed surfaces fade under UV exposure and abrade during handling, causing illegibility within months rather than years.
Incorrect adhesive selection. Labels on low-surface-energy plastics like polypropylene require specialized acrylic or rubber adhesives. Standard adhesives will detach during thermal cycling.
Poor placement. Labels positioned near heat sources, moving parts, or areas subject to chemical splash require higher-performance materials than those in benign locations.
Inadequate adhesion testing. Skipping peel adhesion testing on the actual production substrate risks field failures that surface only after audits or customer complaints.
Using non-authorized label suppliers. UL audits verify that label materials come from suppliers holding valid PGDQ2 file numbers. Labels from unauthorized sources can invalidate the entire product certification.
Not all label printers hold the necessary UL authorization to produce PGDQ2-compliant labels. Before committing to a supplier, verify their UL file number through the UL Product iQ database. Request documentation showing their PGDQ2 recognition specifically covers the substrate, adhesive, printing method, and overlaminate combination used for your labels. A supplier with a valid PGDQ2 file for matte silver PET does not automatically have approval for polyimide substrates or alternative printing technologies.
Discuss your application requirements in detail: operating temperature range, chemical exposure, UV environment, substrate material, and expected product lifecycle. Authorized suppliers can recommend appropriate material combinations from their recognized portfolio. Request printed samples on your actual production substrate for adhesion testing before approving production runs. For guidance on selecting a qualified partner, application engineering resources can help match your requirements with the right supplier capabilities. For custom adhesive solutions and die-cut label products, industrial adhesive tape resources provide additional technical context.
Before mass production, validate that your chosen label, printing method, and surface preparation produce audit-ready results. Document the following tests to demonstrate due diligence if questioned during UL inspections.
Initial adhesion test. Apply labels to production substrates and measure peel adhesion after 24 hours at room temperature. Record values and verify they meet the adhesive manufacturer's specifications.
Environmental aging. Expose labeled samples to accelerated aging: 72 hours at 85°C and 85% relative humidity simulates years of moderate environmental exposure. Inspect for edge lifting, discoloration, or illegibility.
Chemical resistance. Apply common cleaning solvents, oils, and chemicals to the label surface. Wipe gently after 30 seconds of contact. Verify print legibility and adhesive integrity remain intact.
Abrasion resistance. Rub the printed surface with a specified force and cycle count using a standardized Abrasion Taber or equivalent method. Confirm safety marks and compliance text remain legible.
Thermal cycling. Subject labeled samples to repeated temperature cycles between the product's minimum and maximum operating temperatures. Verify adhesion, legibility, and dimensional stability after cycling.
Define pass-fail criteria before testing begins. Retain approved samples as production references. Repeat validation after any change to substrate, ink, adhesive, overlaminate, or supplier.
Confirm your UL969 label requirements with your certification body or authorized supplier to understand mandatory content, formatting, and placement rules.
Request material samples from UL-authorized suppliers in candidate substrates and test adhesion on your actual production surfaces.
Select the printing method based on volume, variable data needs, and environmental durability requirements.
Specify overlamination for any label exposed to UV, chemicals, moisture, or frequent handling.
Document and validate your full label specification including substrate, printing, adhesive, and finishing before approving production tooling.
A: No. Standard office laser printers deposit toner that lacks the UV resistance, chemical resistance, and thermal stability required for UL969 compliance. Production-grade thermal transfer or screen printing with UL-recognized substrates is necessary.
A: Matte silver PET with a UV-resistant polyester overlaminate handles outdoor exposure effectively. Polyimide is unnecessary unless the enclosure generates significant internal heat that pushes surface temperatures above 150°C.
A: With appropriate substrate selection, compatible printing, and protective finishing, UL969 labels routinely remain legible and adhered for 10 to 20 years. Lifespan depends heavily on the actual operating environment and maintenance practices.
A: Yes. Thermal transfer printing with resin ribbons or laser marking accommodates variable data while maintaining the durability required for UL969 compliance. Ensure your UL-authorized supplier's PGDQ2 recognition covers the variable data printing method.
A: The inspector may issue a non-conformance, requiring label replacement and re-inspection before certification is granted or maintained. Repeated label failures can trigger more intensive scrutiny of the entire manufacturing and quality process.
A: Thermal transfer is more practical for runs below 50 labels since it requires no screen setup and handles variable data natively. Screen printing becomes cost-effective at higher volumes where setup costs amortize across many units.
