Choosing UL969 labels for power adapters and switching power supplies comes down to four decisions: a facestock and adhesive combination that survives the heat a switch-mode supply generates, a construction recognized under a valid PGDQ2 file, a printing method that keeps markings legible on a small label, and an application process that matches the adapter's enclosure surface and production line. Get any one of these wrong and the label — not the electronics — becomes the reason a certification audit fails or a shipped unit comes back with a peeled or faded rating mark. This article walks through what UL969 and PGDQ2 actually require for adapter and power supply labeling, which material and adhesive constructions hold up on hot enclosures, how to plan printing and placement, and the specification questions that separate reliable label suppliers from risky ones.
Heat is the deciding factor. Power adapters and switch-mode supplies run warm on the enclosure surface, so the label must combine a dimensionally stable facestock — typically PET or polyimide — with an adhesive rated for continuous temperatures above the worst-case housing temperature.
PGDQ2 recognition is non-negotiable. A label only counts as a UL969 recognized component if the supplier holds a valid PGDQ2 file covering that exact material and construction; US and Canadian market access differ, with PGDQ8 applying in Canada.
Small labels fail on detail, not durability alone. On an adapter housing, print legibility, required markings (UL logo, file number, electrical ratings), and placement on the approved surface matter as much as the material choice itself.
UL969 is the Underwriters Laboratories standard for printed marking and labeling systems — the materials that carry safety markings, ratings, and warnings on products that are themselves UL certified. A power adapter or switching power supply is a classic example: the enclosure carries a permanent rating label listing input and output specifications, safety certifications, and warnings, and external regulations and inspection bodies expect that label to remain legible for the life of the product.
The mechanics of compliance work through the PGDQ2 file category. When a label converter — such as a manufacturer offering recognized UL969 certified label materials — completes UL evaluation of a label construction, UL issues a PGDQ2 file number. That file documents which facestocks, adhesives, inks, and printing methods are approved. Any label the converter produces within the scope of that file is a recognized component; a label made outside any valid file is simply a piece of printed film, no matter how good it looks. For the Canadian market, the equivalent category is PGDQ8, and buyers exporting to both markets should confirm which file — or both — the supplier's construction falls under.
One caution worth stating plainly: using a recognized UL969 label supports a product's UL certification, but the label alone does not certify the adapter. The end-product evaluation and its own file are separate, and requirements vary by product category, standard, and destination market.
Switch-mode power supplies pack transformers, switching transistors, and rectification stages into a small sealed housing, and that heat has to go somewhere — much of it through the enclosure walls. Depending on the design, load, and ambient conditions, an adapter shell can sit well above room temperature during sustained operation, and surfaces near the heat-generating components run hottest. A label specified at room temperature can soften, creep, or lose adhesion on that surface.
Three other factors compound the thermal problem. First, adapter housings are usually molded plastic — often ABS, PC, or blends — whose surface energy and plasticizer content vary between grades, so the same adhesive can behave differently across two visually identical enclosures. Second, the label must carry a dense block of legally required text and symbols in a very small footprint, which pushes printing toward fine-line, high-contrast methods. Third, adapters are handled constantly: plugged and unplugged, carried in bags, rubbed against other objects. Abrasion resistance is not optional.
Matte silver PET is the workhorse for power supply nameplates. It is dimensionally stable at elevated temperatures, resists shrinking, and its matte metallic finish gives high print contrast and a technical appearance on dark or colored housings. White PET offers the same stability with a bright background, which helps when the required artwork includes dense small text or multi-color certification logos on a dark enclosure. Polyimide is the premium option for labels that must survive directly on or beside heat-generating components, tolerating far higher continuous temperatures than standard PET. Vinyl is flexible and conformable but is generally the weakest choice for a hot adapter shell, since it softens at lower temperatures than PET-based films; it fits better on cooler, curved, or flexible surfaces elsewhere in the system.
Acrylic adhesives are the default for power adapter labels because they hold their bond at elevated temperature, resist aging and UV exposure, and stay put over years of thermal cycling. Rubber-based adhesives offer stronger initial tack and better wet-out on slightly textured or low-energy plastics, but their long-term performance on a warm, plasticizer-bearing enclosure is generally weaker, which is why they are less common for safety markings in this application. Silicone adhesives occupy a niche where extreme temperature — far beyond what an external adapter shell sees — is the governing factor. When evaluating self-adhesive label constructions, ask the supplier for the continuous and short-term temperature ratings of the specific adhesive in the PGDQ2 file, not a generic family rating, and confirm the adhesive is approved for the facestock-and-ink combination you plan to order.

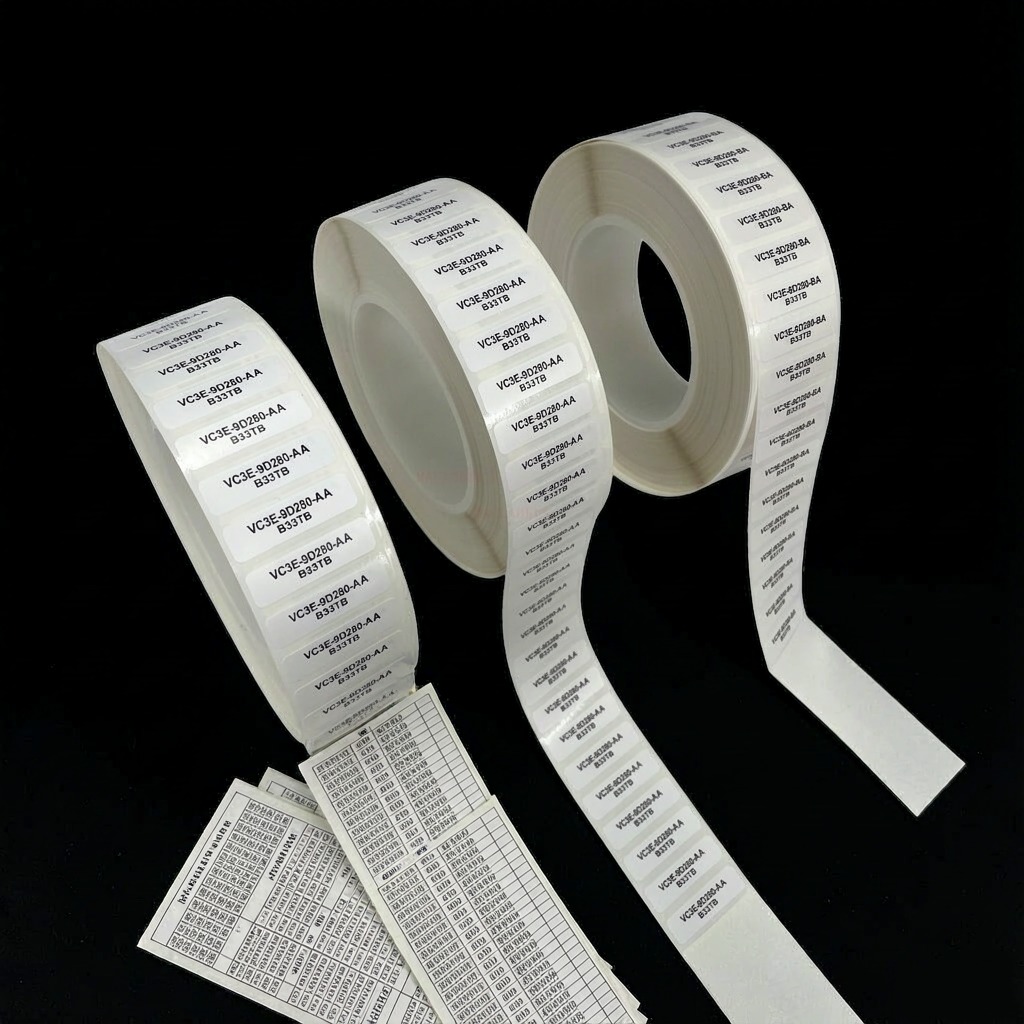

Thermal transfer printing is widely used for adapter and power supply labels because it delivers crisp, durable resin-ribbon output on PET facestocks and supports variable data — serial numbers, date codes, and batch traceability — without plate changes. Screen printing suits solid-color certification logos and delivers excellent outdoor and abrasion durability. Digital printing handles short runs and frequent artwork revisions economically, which matters when rating tables differ between model variants. What ultimately matters is that the printing method is one of those covered by the supplier's PGDQ2 file for the chosen material, because a recognized construction approved for thermal transfer is not automatically approved for screen-printed ink systems.
Adapter housings leave little flat area. The label must fit the available footprint, tolerate any curvature along its edges, and sit on the surface area designated in the product's certification documentation. Minimum text size is a real constraint: certification bodies and market-surveillance inspectors expect ratings and warnings to be permanently legible, and a label that prints beautifully at draft size but blurs when reduced is a specification failure waiting to surface. Where the housing is textured or curved, a thinner facestock with a conformable acrylic adhesive generally outperforms a thick rigid film.
The table below summarizes how common label constructions behave in the specific context of power adapters and switch-mode power supplies. Treat the ratings as directional guidance for shortlisting, and verify the exact construction's recognition and temperature data in the supplier's file documentation before committing.
Construction | Heat tolerance | Surface behavior on adapter housings | Typical fit |
|---|---|---|---|
Matte silver PET + acrylic adhesive | Good continuous elevated-temperature performance | Strong on smooth PC/ABS shells; stable on warm surfaces | Default rating and compliance label for most adapters |
White PET + acrylic adhesive | Good continuous elevated-temperature performance | Best print background for dense small text and color logos | Rating labels on dark housings; multi-market artwork |
Polyimide + acrylic or silicone adhesive | Excellent; survives temperatures far above enclosure levels | Thin, conformable, high dimensional stability | Internal component labels near heat sources; high-temp variants |
Vinyl + rubber or acrylic adhesive | Moderate; softens at lower temperatures than PET | Conformable on curves and textured surfaces | Cool or flexible surfaces; less suited to hot adapter shells |
A correct construction can still fail if it is applied badly. The steps below reflect what consistently works in production environments:
Prepare the surface. Wipe the application area with an appropriate solvent such as isopropyl alcohol to remove mold release agents, fingerprints, and dust, and let it flash off completely. Surface contamination is the most common root cause of edge lifting on plastic enclosures.
Respect the application temperature window. Most pressure-sensitive adhesives need both the substrate and the label within a stated range — commonly above roughly 10–15 °C — to wet out properly. Applying labels to cold housings straight from an unheated storage area invites delayed adhesion failure.
Apply firm, even pressure. Use a roller or automated applicator so the adhesive makes full contact, working from the center outward to avoid trapped air under small labels.
Label before final packaging, after the housing has cooled. Applying a label to a housing still hot from molding or assembly accelerates adhesive flow and can distort the print area.

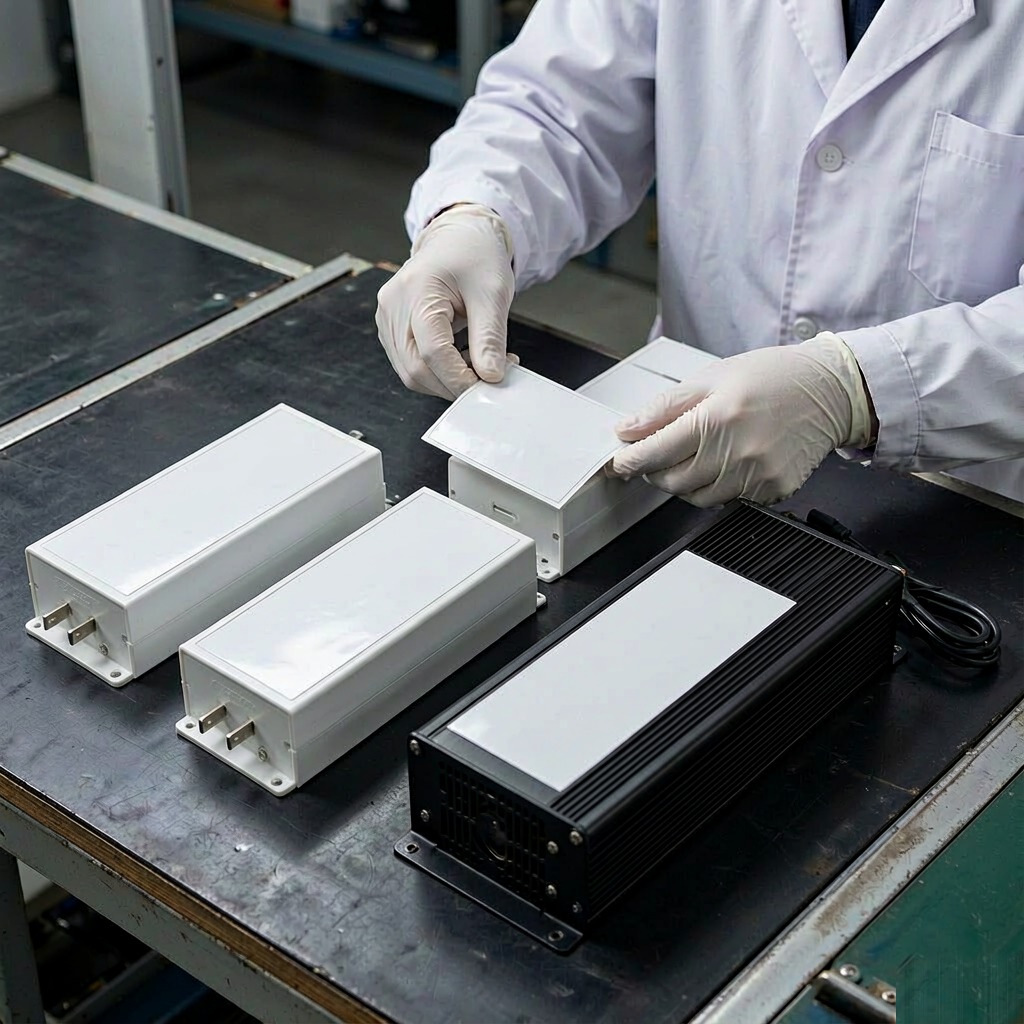

Validate on real parts. Run a documented check: initial peel after application, then adhesion after 24 and 72 hours of dwell, followed by exposure simulating worst-case operation — elevated ambient, sustained load, and normal handling abrasion. Define pass and fail criteria before testing and retain approved samples for reference.
This kind of process validation does not replace the formal UL evaluation behind the PGDQ2 file; it confirms that the recognized construction performs on your specific housing, with your specific handling, in your specific production environment.
The most damaging mistake is buying on print appearance alone. A label that looks identical to a recognized one can still be produced from material outside any valid PGDQ2 file, and during a factory audit or field inspection that difference surfaces as a certification problem for the entire product line. Always ask for the file number and verify it against the exact construction being quoted.
Heat-driven adhesive creep is the classic physical failure: the label stays in place but edges lift or the whole label slides on a housing that runs hotter than the adhesive's continuous rating. Choosing a rubber adhesive for its initial tack on a warm enclosure is a recurring version of this error. Fading and abrasion are the print-side failures — labels printed with unapproved ink systems or without adequate over-protection lose contrast where adapters are handled daily. And legibility failures show up at the worst time: text that survives but shrinks below readable size when artwork is scaled to fit a smaller housing revision.
Placement errors round out the list. A label applied to a surface not covered by the product's certification documentation, or positioned where handling wear concentrates, creates compliance and durability problems even when the label itself is fully recognized.
Supplier quality separates smooth certification from repeated audit findings. Before ordering, put these questions to any candidate — including experienced converters such as MAC Labels — and compare answers directly:
What is your PGDQ2 file number, and does it cover the exact facestock, adhesive, ink, and printing method in this quotation? Is a PGDQ8 file available for Canadian shipments?
What are the continuous and short-term temperature ratings of the specific adhesive in the recognized construction?
Has the construction been evaluated on molded plastic enclosures similar to ours (ABS, PC, blends), and what surface preparation does the file or your experience require?
Which variable-data options — serial numbers, date codes, barcodes — are supported, and how is print durability validated on PET facestocks?
What are the minimum order quantity, lead time, and sample policy for prototype quantities before a production commitment?
Can you supply material certification documentation and retained reference samples for our own validation records?
Suppliers who answer these precisely, without hedging, are usually the ones whose labels pass audits without drama.
Confirm the required markings, label footprint, and approved placement surface from your product's certification documentation before requesting quotations.
Request the supplier's PGDQ2 (and PGDQ8, if relevant) file details in writing, matched to the exact construction and print method quoted.
Test candidate labels on production housings with a documented peel, dwell, heat-exposure, and abrasion protocol.
Record approved samples, test conditions, and pass/fail criteria so the validation survives personnel changes and supplier transitions.
Review the specification whenever the housing material, surface finish, or power rating changes — any of these can invalidate an otherwise solid label choice.
Ready to source labels that survive the heat, pass the audit, and keep your power adapters compliant from day one? Explore the MAC Labels options below and request samples matched to your enclosure material and printing method.
Dimensionally stable facestocks with acrylic adhesives, recognized for elevated-temperature power supply nameplates.
A: Not by law directly. The requirement flows from the product's certification scheme: if the adapter is UL certified to a power supply standard, the rating markings must use a labeling system recognized under the applicable file — PGDQ2 for US evaluation. Requirements vary by product category, standard, and market, so confirm with the certification body or your compliance team.
A: PGDQ2 is the UL file category covering label materials and constructions recognized for US market evaluations, while PGDQ8 is the Canadian equivalent. If you ship to both markets, check whether the supplier's file covers both categories or whether separate constructions are needed.
A: No. Printing a UL logo on ordinary film does not make it a recognized label. The construction — facestock, adhesive, ink, and printing method — must be produced by a converter holding a valid PGDQ2 file that covers it, otherwise the marking will not be accepted during certification audits.
A: Matte silver or white PET with an acrylic adhesive is the standard choice for external rating labels on warm housings. Polyimide is the upgrade path where the label sits near major heat sources. Vinyl is generally avoided on hot adapter shells because it softens at lower temperatures than PET films.
A: Ask for the file number and the recognized construction details in writing, and verify through UL's official certification directory that the file is current and covers the material, adhesive, and print method you are buying. Counterfeit and out-of-scope labels exist, so documentation checks matter.
A: Yes, provided the variable-data printing method is covered by the supplier's recognized file. Thermal transfer printing with resin ribbons is the most common route for serial numbers and traceability barcodes on PET-based adapter labels, and it supports per-unit variation without plate changes.
