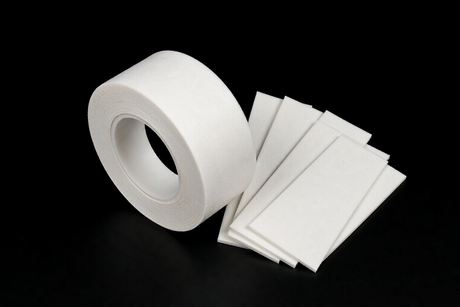

Why do die cut foam tapes ooze adhesive or lift at the edges?

Die cut foam tapes ooze adhesive when the adhesive layer is softer than the foam structure can support under compression, and they lift at the edges when stress concentrates along the cut line where adhesion is weakest. Both problems trace back to a handful of controllable factors: foam density, adhesive softness and coat weight, die-cut edge quality, substrate preparation, and the temperature at which the tape is applied. Understanding why each failure happens makes it predictable and, in most cases, preventable before a single part is converted. This article explains the mechanics behind adhesive bleed and edge lifting, the material and process factors that drive them, and the specification and application steps that keep die cut foam tapes bonded flat and clean over their service life.

Key Takeaways

1. Ooze is a pressure-and-hardness problem. Soft adhesive trapped inside a compressible foam squeezes sideways when the part is die cut, over-compressed during application, or exposed to heat, and it escapes at the only open boundary: the cut edge.

2. Edge lift is a stress problem. Mechanical stress concentrates at the outer boundary of a foam part, where the foam springs back and the adhesive face is smallest. A crushed cut edge, a low-tack adhesive, or a contaminated surface gives that stress a place to start.

3. Most failures are preventable at specification time. Matching foam density, adhesive firmness, and die-cutting quality to the substrate, part geometry, and service environment removes the two most common root causes before production begins.

What Adhesive Ooze and Edge Lifting Actually Are

Adhesive ooze — sometimes called adhesive bleed — is the visible migration of adhesive beyond the intended boundary of a die cut foam part. It shows up as a shiny ring or soft beads around the edge of the foam, transfer onto adjacent surfaces in a roll or sheet, or residue on the liner after peeling. The adhesive itself has not failed chemically; it has simply been pushed, pulled, or softened to a point where it flows past where it belongs.

Edge lifting is different. It is a loss of contact that begins at the outer boundary of the part and can progress inward. The edge of a foam part is its most vulnerable zone: the cut face exposes raw adhesive, the compressed foam pushes back against the bond line, and any dust, release agent, or oil sitting on the substrate tends to accumulate at geometric edges first. Once the edge starts to rise, the exposed underside collects contamination and the lift accelerates.

The two failures are related but not identical. Ooze can occur with no lifting at all — a well-bonded part can still bleed at the edge. And an edge can lift with no ooze, particularly in cold conditions where the adhesive has stiffened. Treating them as one generic "quality problem" leads to the wrong fix, so it helps to keep the mechanisms separate.

Why Foam Tapes Behave This Way

A foam tape is a three-layer system: a compressible foam core, a viscoelastic adhesive on one or both faces, and usually a release liner. Each layer has its own mechanical personality. The foam compresses and recovers. The adhesive flows slowly under sustained stress and stiffens when cold. The bond line holds only where the adhesive has wet out the substrate surface.

When the part is compressed — during die cutting, during application with a roller or press, or later under a screwed-down housing — the foam volume shrinks. The adhesive occupying that volume has nowhere to go except sideways. If the adhesive is soft relative to the foam's firmness, it is forced out past the cut edge. Heat accelerates the same behavior because adhesive viscosity drops as temperature rises, which is why parts that look clean in a cool warehouse can develop shiny edges after sitting in a shipping container or on equipment near a heat source.

Edge lifting follows from the geometry of compression. A foam part that is squeezed during application stores elastic energy. At the center of the part, the bond is continuous and the stored stress is spread across the full area. At the edge, the foam can recover upward and the adhesive contact area tapers to nothing. If the adhesive is too firm to re-flow into that recovering zone, or if the surface was not properly prepared, the edge peels back a fraction of a millimeter — and from there the failure grows.

Factors That Determine Whether a Die Cut Foam Tape Will Ooze or Lift

Foam density and cell structure

Density is the single most important foam property for both failure modes. Low-density foams compress easily and recover quickly, which is comfortable for the user but means they store more elastic energy at the edge and transmit more compression to the adhesive. Closed-cell foams resist adhesive penetration into the cells, so ooze tends to stay at the boundary; open-cell foams can wick adhesive internally, which sometimes hides bleed until the part is compressed in service. Higher-density foams resist over-compression and reduce both the squeeze-out driving force and the edge spring-back, at the cost of a stiffer feel.

Adhesive softness and coat weight

Soft, high-tack adhesives wet out surfaces quickly and bond well to rough or low-energy substrates, but they are also the ones that bleed under pressure and heat. Firmer acrylic adhesives resist flow and hold their edge definition, though they may need higher application pressure or longer dwell time to reach full adhesion. Coat weight matters as much as chemistry: a thick adhesive layer on a thin, soft foam guarantees ooze on narrow parts, because there is more adhesive volume per millimeter of cut edge to escape. When buyers evaluate die cut foam tape options, the adhesive-to-foam ratio deserves as much attention as the adhesive brand.

Die-cut edge quality

How the edge is cut determines what the adhesive does at that edge. A sharp, cleanly sheared die cut leaves a flat boundary and an intact adhesive face. A dull die or a cutting stroke that crushes the foam leaves a rounded, compressed edge with adhesive smeared outward — a part that arrives at the assembly bench already showing a faint ooze ring. For high-volume converting, rotary die cutting with well-maintained tooling generally holds edges better than worn flatbed tooling on thick foams. Suppliers who control their own converting, such as those offering custom die cutting and converting services, can usually tune die sharpness, cutting depth, and speed to the specific foam rather than forcing a generic setup.

Substrate condition and surface energy

Edge lifting is far more likely on low surface energy plastics, powder-coated textures, or surfaces carrying mold release agents, oils, or plasticizer migration. Even a good adhesive will only anchor at the edge as well as the surface allows. Cleaning with an appropriate solvent and abrading smooth, hard surfaces where the design permits both raise the boundary adhesion substantially. Application temperature matters here too: most pressure-sensitive adhesives need the substrate and the tape itself to be within a stated temperature window — commonly above roughly 10–15 °C — for the adhesive to flow and wet out. Applying a foam tape to a cold substrate in an unheated workshop is a classic recipe for edge lift that appears days later.

Part geometry

Narrow parts, sharp inside corners, and small features concentrate stress. A long straight edge distributes stress along its length; a tight corner piles it up at one point. If the design forces narrow widths, a firmer adhesive and a higher-density foam compensate better than simply choosing the tackiest tape available.

How Foam Type Changes the Risk

No single foam suits every application, and the choice directly shifts the balance between ooze risk and lift risk. The comparison below summarizes how common foam families behave in die cut form.

Read the table as a starting point, not a verdict. A high-density open-cell PU from one supplier can outperform a low-grade closed-cell PE from another. The reliable approach is to compare candidate materials on the actual production substrate, under the actual application conditions, before committing.

Application Practices That Prevent Both Failures

Material choice sets the ceiling; application practice decides whether the tape reaches it. The following steps address the most common field failures:

1. Clean the substrate properly. Wipe with isopropyl alcohol or a supplier-recommended cleaner and let it flash off completely. On oily or heavily handled parts, mechanical cleaning may be needed. Residue at the edge is where lifting starts.

2. Apply within the temperature window. Bring both parts and tape to room temperature if they have been stored cold. Cold adhesive does not wet out, and the resulting weak boundary shows up as edge lift after thermal cycling.

3. Use even, adequate pressure. Apply with a roller or platen across the full part, using enough force to compress the foam to roughly the percentage the supplier recommends — not so little that contact is patchy, and not so much that the adhesive is hydraulically squeezed outward.

4. Allow dwell time before loading. Pressure-sensitive bonds build strength over 24–72 hours. Handling or stressing parts immediately after application tests the bond at its weakest point.

5. Handle liners and parts by the edges carefully. Fingerprints and dust on the adhesive face of small die cut parts create localized dead zones that later become lift points.

For production validation, test parts on the real substrate and record the conditions: application temperature, pressure or roll passes, dwell time before test, and peel results at the edge versus the center. Re-run the check whenever the substrate coating, adhesive lot, or converting setup changes. A documented record of what was tested and what passed is far more useful in a supplier discussion than a subjective impression that "the last batch seemed stickier."

Common Mistakes That Cause Ooze and Edge Lift

Most recurring failures map onto a short list of avoidable errors:

• Choosing the tackiest adhesive instead of the right one. High initial tack usually means soft adhesive, and soft adhesive bleeds. If the substrate is difficult, the answer is surface preparation or a specialty adhesive, not maximum tack.

• Over-compressing during assembly. Screwing housings down over a foam gasket until it is nearly flat forces adhesive out and permanently reduces the foam's recovery. Follow the recommended compression range.

• Ignoring package compression in transit. Tightly stacked or shrink-wrapped die cut parts in a hot container ooze before they ever reach the customer. Loosen packing tension and avoid heat-soaked storage.

• Using worn die tooling. Crushed cut edges pre-load the failure. Inspect cut quality on incoming parts, especially after tooling has been re-sharpened or replaced.

• Applying to cold or recently molded plastics. Freshly molded or coated parts can outgas plasticizers or solvents that attack the bond at the edge. Allow parts to fully cure and cool before taping.

• Expecting foam tape to do a fastener's job. Where parts face repeated peeling, heavy vibration, or reclosable access, an adhesive alone is the wrong tool. For applications that need repeatable opening and closing, dual lock reclosable fastening tape engages mechanically instead of relying on a viscoelastic bond, which eliminates ooze and edge lift as failure modes entirely.

Questions to Ask a Foam Tape Supplier

A supplier's answers to a few pointed questions reveal whether the material has been engineered against these failures or simply relabeled from a datasheet:

• What is the foam density and cell structure, and how does it behave at the recommended compression percentage?

• What is the adhesive coat weight, and is there a firmer-adhesive variant for narrow parts or warm service conditions?

• What application temperature range and minimum substrate temperature do you recommend, and what pressure or compression percentage should production target?

• How is the part die cut — rotary or flatbed, and how is tooling condition controlled over a long run?

• What storage conditions and shelf life apply to the die cut parts, and how should they be packed to avoid compression ooze in transit?

• Can you supply sample parts for validation on our substrate, and will you support a joint review of peel and bleed results?

Buyers comparing sources of industrial adhesive tape products will find that suppliers who can answer these questions with specific numbers, rather than general assurances, are also the ones most likely to hold consistency across production lots. MAC Labels works with customers at this specification level through its die cut tape and material converting business, including material selection support before tooling is committed.

Next Steps

1. Confirm the substrate material, surface finish, application temperature, and service temperature range for the parts in question.

2. Request foam density, adhesive coat weight, and recommended compression data for each candidate tape, not just a peel-value datasheet.

3. Test sample parts on the production substrate at both the low and high ends of your workshop temperature range.

4. Record application pressure, dwell time, and edge peel results, and retain approved samples for future lot comparison.

5. Review incoming die cut edges under magnification on a defined schedule to catch tooling wear before it becomes a field failure.

FAQ

Q: What causes adhesive to ooze out of die cut foam tape?

A: Compression is the main driver. When a soft adhesive inside a compressible foam is squeezed — by die cutting, heavy application pressure, packaging compression, or heat — the adhesive is forced sideways and escapes at the cut edge. Soft adhesives, heavy coat weights, and low-density foams raise the risk.

Q: How do I stop foam tape edges from lifting?

A: Clean and dry the substrate, apply within the recommended temperature window, and use even pressure across the full part. If lifting persists, move to a higher-density foam or a firmer adhesive, and check whether die-cut edge quality or substrate contamination is the underlying cause.

Q: Is a small amount of adhesive bleed always a defect?

A: Not necessarily. A faint, stable ooze ring that does not grow, transfer to mating surfaces, or attract dirt may be acceptable in many industrial uses. Whether it is acceptable depends on the cosmetic requirements of the application, so define the visual pass criteria with the supplier before production.

Q: Does storage affect adhesive ooze in die cut parts?

A: Yes. Heat softens pressure-sensitive adhesive, and compression in tightly stacked packaging pushes it out over time. Store die cut foam parts in a cool, dry place, keep packaging tension moderate, and follow the supplier's stated shelf life.

Q: Which foam tape is least likely to lift at the edges?

A: Higher-density acrylic foam tapes generally hold edges best because their internal strength resists spring-back and their firmer adhesive resists flow. On difficult plastics, surface preparation matters more than foam choice, so combine the material upgrade with proper cleaning.

Q: When should I replace foam tape with a mechanical fastening solution?

A: When the joint is opened and closed repeatedly, exposed to sustained peel loads, or subject to vibration that works the edge. Reclosable mechanical fastening tapes handle those conditions without relying on adhesive creep, while single-application foam tapes remain the better choice for permanent, load-spreading bonds.
