Ordering custom PGDQ2 labels for North American export requires a structured approach that covers material selection, supplier verification, print method matching, and compliance documentation. When you order PGDQ2 labels from a UL-authorized supplier, you ensure that the label materials used on your finished product have already been recognized under a valid UL file, which is mandatory for UL product certification audits. This guide walks you through the practical steps, decision points, and verification checks needed to place a successful order for custom PGDQ2 labels destined for the US and Canadian markets.
Supplier verification first. Confirm the supplier holds a valid UL file with PGDQ2 recognition for the specific material construction you need, and request a copy of the UL file authorization letter before placing any order.
Material must match environment. Select label facestock, adhesive, and overlaminate based on the operating temperature range, UV exposure, chemical contact, and surface substrate where the label will be applied.
Ordering requires complete artwork and data. Provide print-ready artwork with correct UL logo placement, file number, variable data fields if needed, and substrate adhesion testing requirements to avoid production delays.
PGDQ2 is a UL file category that identifies label materials recognized for use on products requiring UL certification in the United States. When UL evaluates a finished product—such as a power supply, home appliance, or LED lighting fixture—the safety label on that product must either be part of the product's own UL listing or be sourced from a UL-authorized label supplier with PGDQ2 recognition. If the label is not PGDQ2-recognized, the product certification audit may be delayed or failed, and the product may not gain market access in North America. For Canada, the equivalent recognition is PGDQ8. Some label suppliers hold both PGDQ2 and PGDQ8 recognition, which allows a single label construction to serve both markets simultaneously.
Before placing any order, verify that the label supplier holds a valid UL file with PGDQ2 recognition for the specific material construction you need. Ask the supplier for their UL file number and request a copy of the UL file authorization letter or the relevant UL file page. Cross-check the file number in the UL Product Database (product.ul.com) to confirm the file is active, covers label materials, and lists the specific material construction you intend to order. A valid PGDQ2 file typically specifies the facestock material, adhesive type, overlaminate film if applicable, printing inks, and ribbon if thermal transfer printing is used. If the supplier cannot provide a verifiable PGDQ2 file number, or if the file does not cover your intended construction, order from a different supplier.
MAC Labels provides label compliance solutions including PGDQ2-verified label materials and custom printing for North American market access.
Several variables determine the right PGDQ2 label construction for your application. Start by identifying the substrate where the label will be applied: bare metal, powder-coated metal, plastic (polypropylene, ABS, polycarbonate), glass, or painted surface. Next, define the operating environment: indoor controlled conditions, outdoor UV exposure, temperature extremes, chemical contact, or frequent cleaning. The label format matters too—self-adhesive labels are the most common, but heat transfer labels are used where a no-label-look finish is required. Determine whether you need variable data on the label: serial numbers, barcodes, QR codes, or date codes for traceability. Finally, specify the production volume, label dimensions, color requirements (single-color, four-color process, or specialized colors such as UL-required yellow for caution labels), and any overlaminate needs for additional durability or chemical resistance.
Matte silver PET is one of the most widely used facestocks for UL969 nameplate labels because of its clean appearance, good printability, and wide PGDQ2 recognition among authorized suppliers. White PET offers similar performance but with higher contrast for dark product housings. Polyimide (Kapton) facestock is selected when the label must withstand sustained high temperatures, such as inside motors, transformers, or heating elements. Vinyl facestock provides conformability on curved surfaces and is commonly used for warning labels and instructional markings. When the label will be applied to textured powder-coated surfaces or low-energy plastics, specify an adhesive formulated for those substrates—typically a high-tack acrylic or a rubber-based adhesive with higher initial tack. For outdoor applications or environments with chemical exposure, a clear polyester overlaminate adds UV and chemical resistance while protecting the printed image.
PGDQ2 label materials from MAC Labels include matte silver PET, white PET, polyimide, and vinyl options, each paired with UL-recognized adhesives and available with custom printing services.
Screen printing is the most common method for custom PGDQ2 labels because it produces durable, opaque images on matte silver PET, white PET, and vinyl facestocks. Digital UV inkjet printing is suitable for short runs, variable data, and multi-color artwork, provided the printing method is covered under the supplier's UL file. Thermal transfer printing is used for high-resolution variable data such as serial numbers and barcodes, often as a secondary operation after the base label is screen-printed. Laser printing may be used for on-demand variable data on compatible facestocks. When specifying the print method, confirm with the supplier that the combination of facestock, ink, adhesive, and print method falls within their recognized PGDQ2 file. Mixing non-recognized components—such as using an unrecognized ink on a recognized facestock—can invalidate the PGDQ2 status of the finished label.
Follow these steps to place a custom PGDQ2 label order for North American export:
Define the label specification. Document the facestock material, adhesive type, label dimensions, print colors, overlaminate requirements, and variable data fields.
Verify supplier PGDQ2 status. Confirm the supplier's UL file covers your intended construction and request written confirmation.
Request samples. Order material samples or press proofs before committing to a production run to verify print quality, adhesive performance, and color match.
Prepare artwork. Supply print-ready vector artwork with correct UL logo placement, file number, and required safety wording. Confirm the supplier's artwork template and minimum text size requirements.
Conduct adhesion testing. Test the label on the actual production substrate under realistic conditions—temperature, humidity, and surface cleanliness—before mass production.
Place the production order. Provide final artwork, approved sample reference, quantity, packaging requirements, and delivery schedule.
Receive and inspect. Verify the delivered labels against the approved sample: print quality, color, dimensions, UL logo and file number accuracy, and variable data readability.
Specification | Matte Silver PET | White PET | Polyimide | Vinyl |
|---|---|---|---|---|
Temperature range | -40°C to 150°C | -40°C to 150°C | -40°C to 260°C+ | -40°C to 80°C |
UV resistance | Good | Good | Fair | Good with overlaminate |
Chemical resistance | Good | Good | Excellent | Moderate |
Surface conformability | Moderate | Moderate | Good | Excellent |
Typical applications | Power supplies, LED drivers | Home appliances, dark housings | Motors, transformers | Warning labels, curved surfaces |
Overlaminate recommended | For outdoor or chemical exposure | For outdoor or chemical exposure | For chemical exposure | For outdoor or abrasion resistance |
Custom PGDQ2 label services from MAC Labels include material selection assistance, print method matching, and variable data integration for North American export compliance.
One of the most frequent mistakes is ordering PGDQ2 labels without verifying the supplier's UL file for the exact construction. A supplier may hold a valid PGDQ2 file for matte silver PET with a specific adhesive, but not for the same facestock with a different adhesive formulation or overlaminate. Another common error is neglecting to specify the correct UL logo size and placement requirements, which can lead to labels that fail compliance review. Ordering without testing on the actual production substrate is a risk—labels that perform well on clean metal may fail on textured powder-coated surfaces. Insufficient artwork preparation is another source of delay: missing UL file numbers, incorrect safety symbols, or low-resolution images require revision and extend lead times. Finally, failing to confirm print method coverage under the supplier's UL file can result in a label construction that is not PGDQ2-recognized.
Request the following information before finalizing your order:
What is your UL PGDQ2 file number, and does it cover the specific facestock, adhesive, and overlaminate combination I need?
Do you hold PGDQ8 recognition as well, so the same label is acceptable in Canada?
Which print methods are covered under your PGDQ2 file—screen, digital, thermal transfer, or laser?
What is the minimum order quantity, and do you offer prototype or short-run options before full production?
Can you provide a material sample or press proof for adhesion testing on my substrate?
What are the lead times for sampling, production, and delivery?
Confirm your product's target market (US, Canada, or both) and the applicable UL standard for your product category.
Document the exact label specification: dimensions, colors, variable data, substrate, and operating environment.
Request samples from a UL-authorized PGDQ2 label supplier and test them on your actual production substrate.
Verify the supplier's UL file covers your intended facestock, adhesive, print method, and overlaminate combination.
Validate the final printed label against your approved sample before the full production run ships.
A: PGDQ2 is a UL file category indicating that the label material construction has been recognized by UL for use on products requiring UL certification in the United States. The label supplier must hold a valid UL file listing the specific facestock, adhesive, and overlaminate.

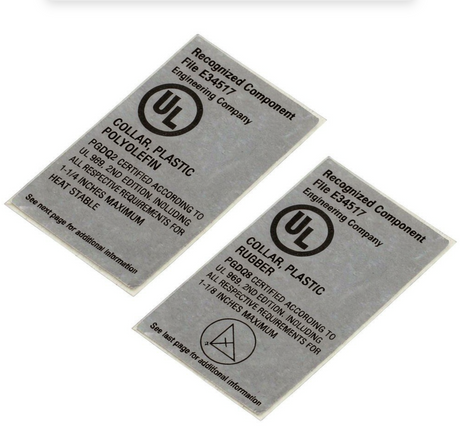

A: PGDQ8 is the Canadian equivalent of PGDQ2. Some label suppliers hold both PGDQ2 and PGDQ8 recognition, allowing a single label construction to serve both US and Canadian markets. Confirm with your supplier which recognition applies to your order.
A: No. The adhesive must be part of the recognized construction listed in the supplier's UL file. Substituting a non-recognized adhesive can invalidate the PGDQ2 status of the finished label. Always verify the exact adhesive specification with the supplier.
A: Request the supplier's UL file number and check it in the UL Product Database. Confirm the file is active, covers label materials, and lists the specific material construction you intend to order.
A: A PGDQ2 label typically must include the UL logo, the manufacturer's name or file identification, and sometimes the UL file number or traceability codes. The exact marking requirements depend on the product standard and applicable UL certification requirements.
A: Yes. Variable data such as serial numbers, barcodes, and date codes can be printed on PGDQ2 labels using thermal transfer, laser, or digital methods, provided the print method and consumables are covered under the supplier's UL file.
A: Lead times vary by supplier and order complexity. Sampling and proofing typically take 5–10 business days, while production runs of 1,000–50,000 units may take 10–20 business days. Confirm lead times with your supplier before placing the order.
