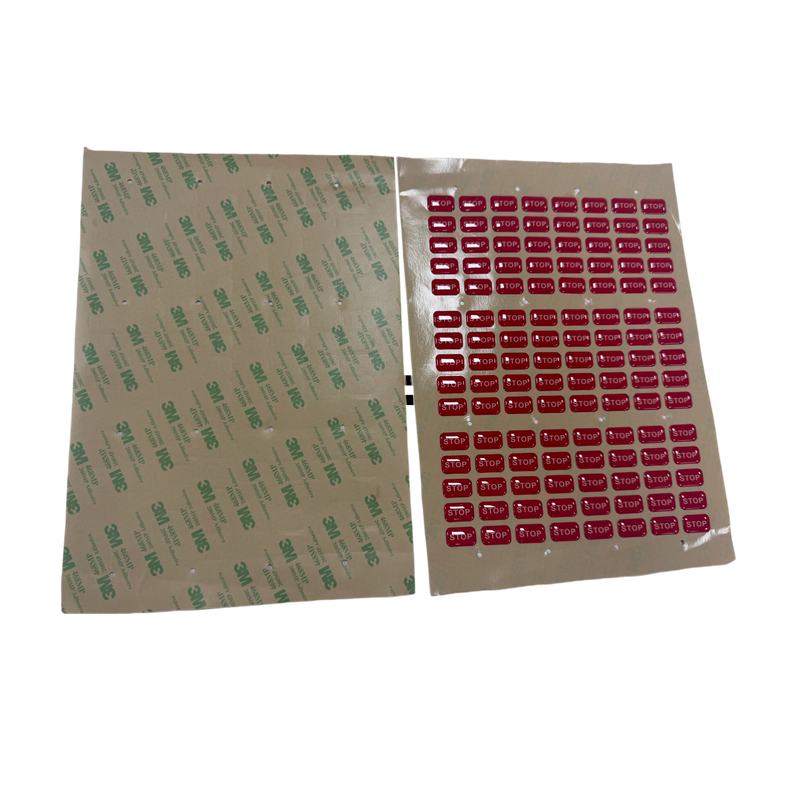

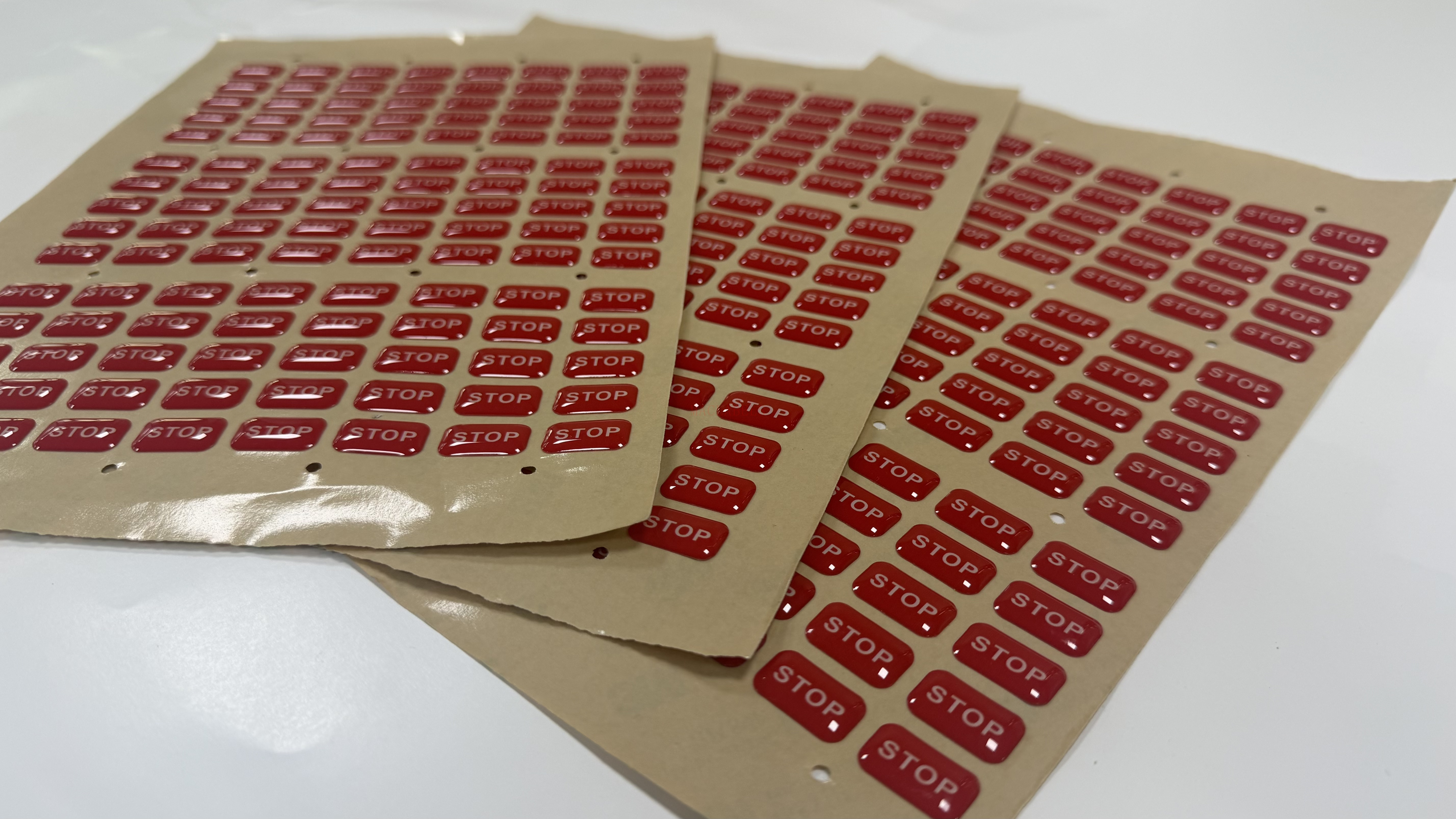

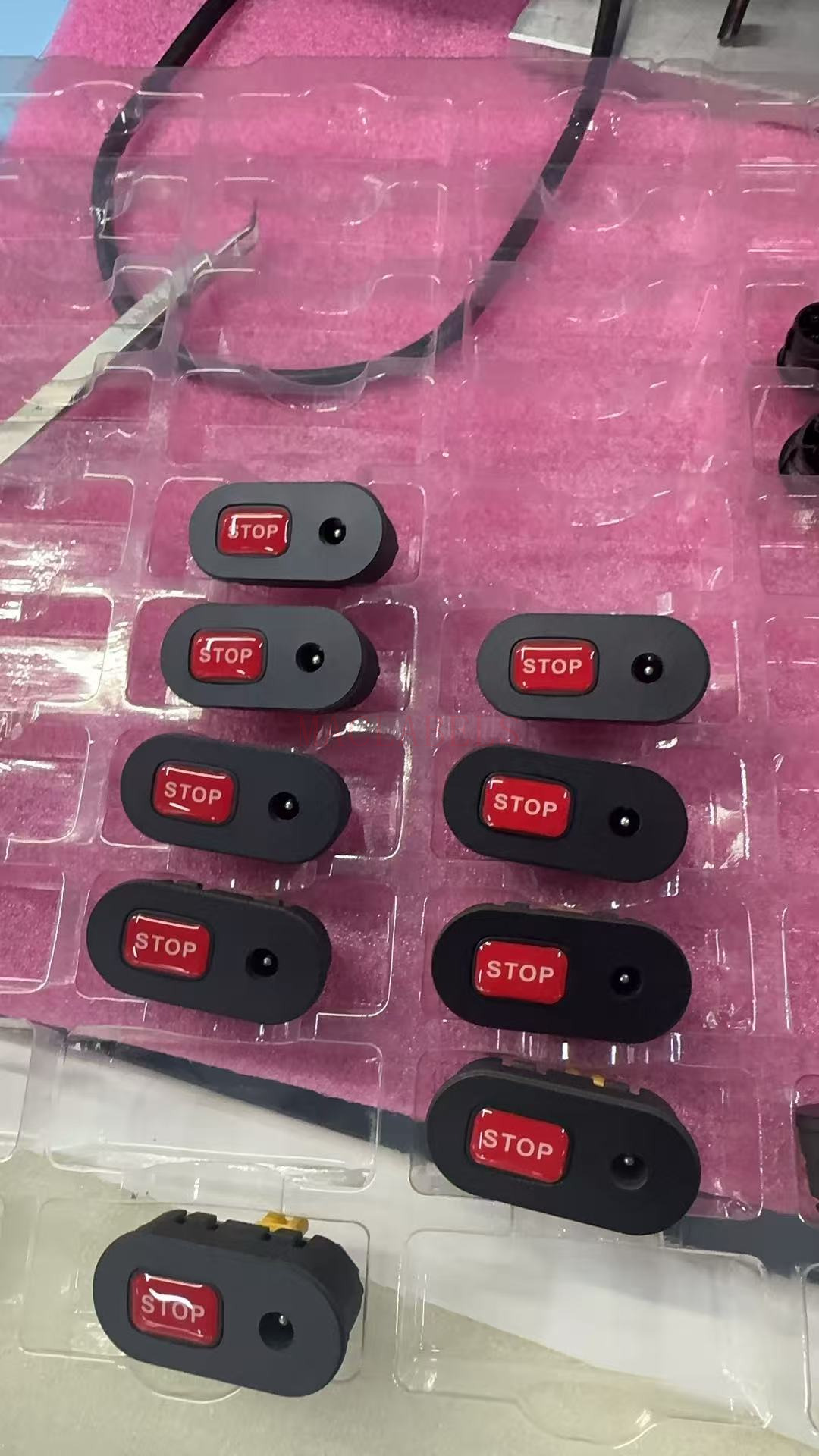

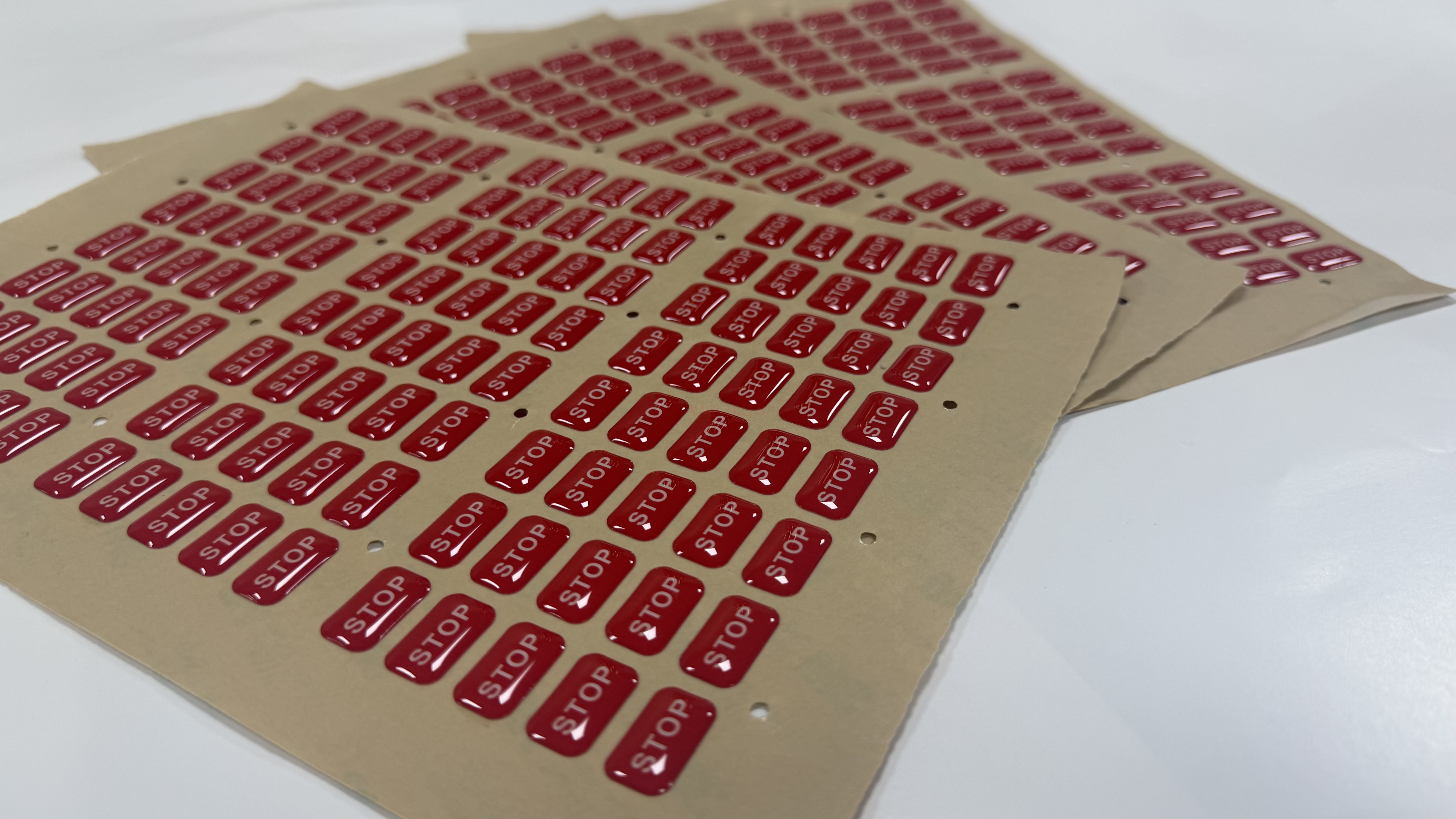

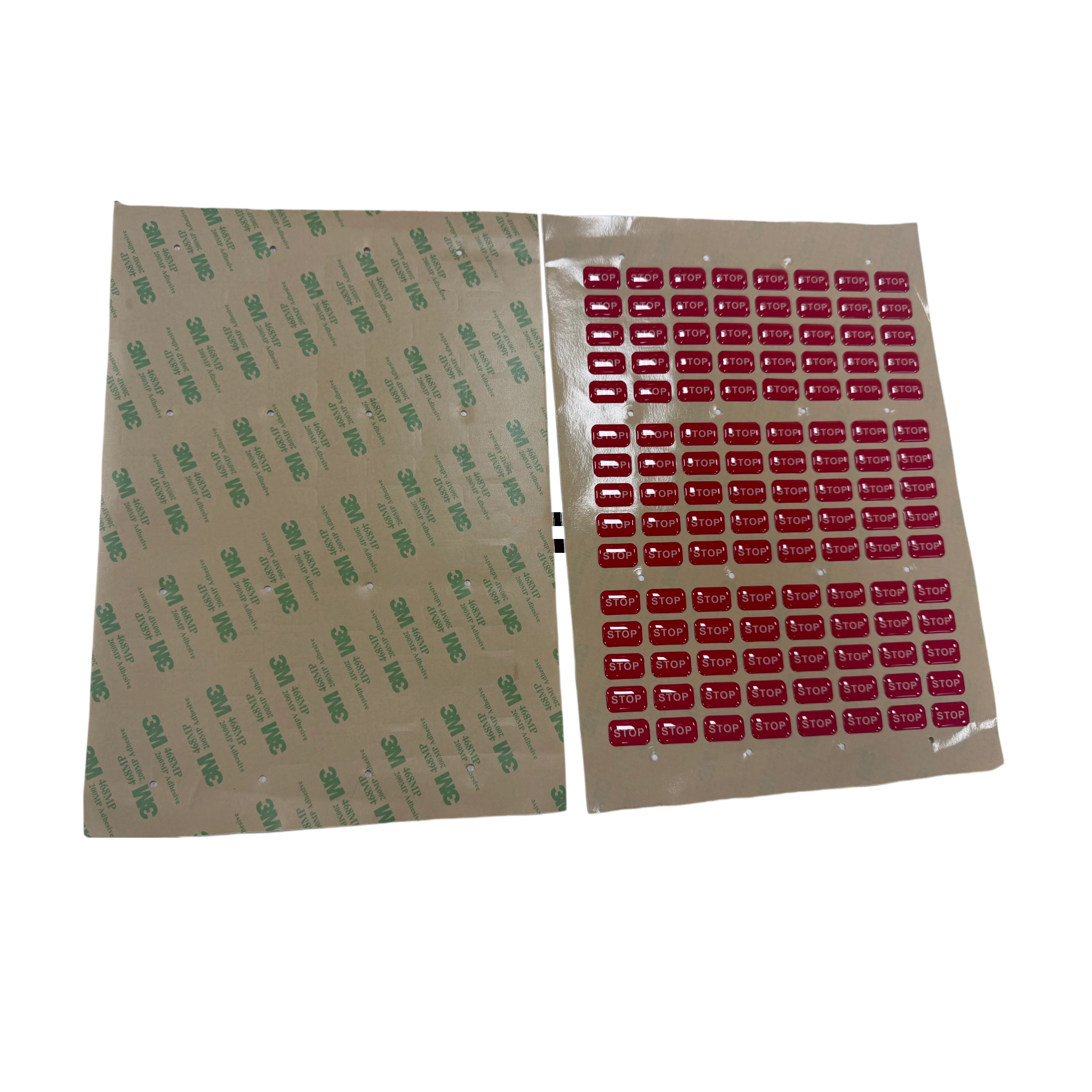

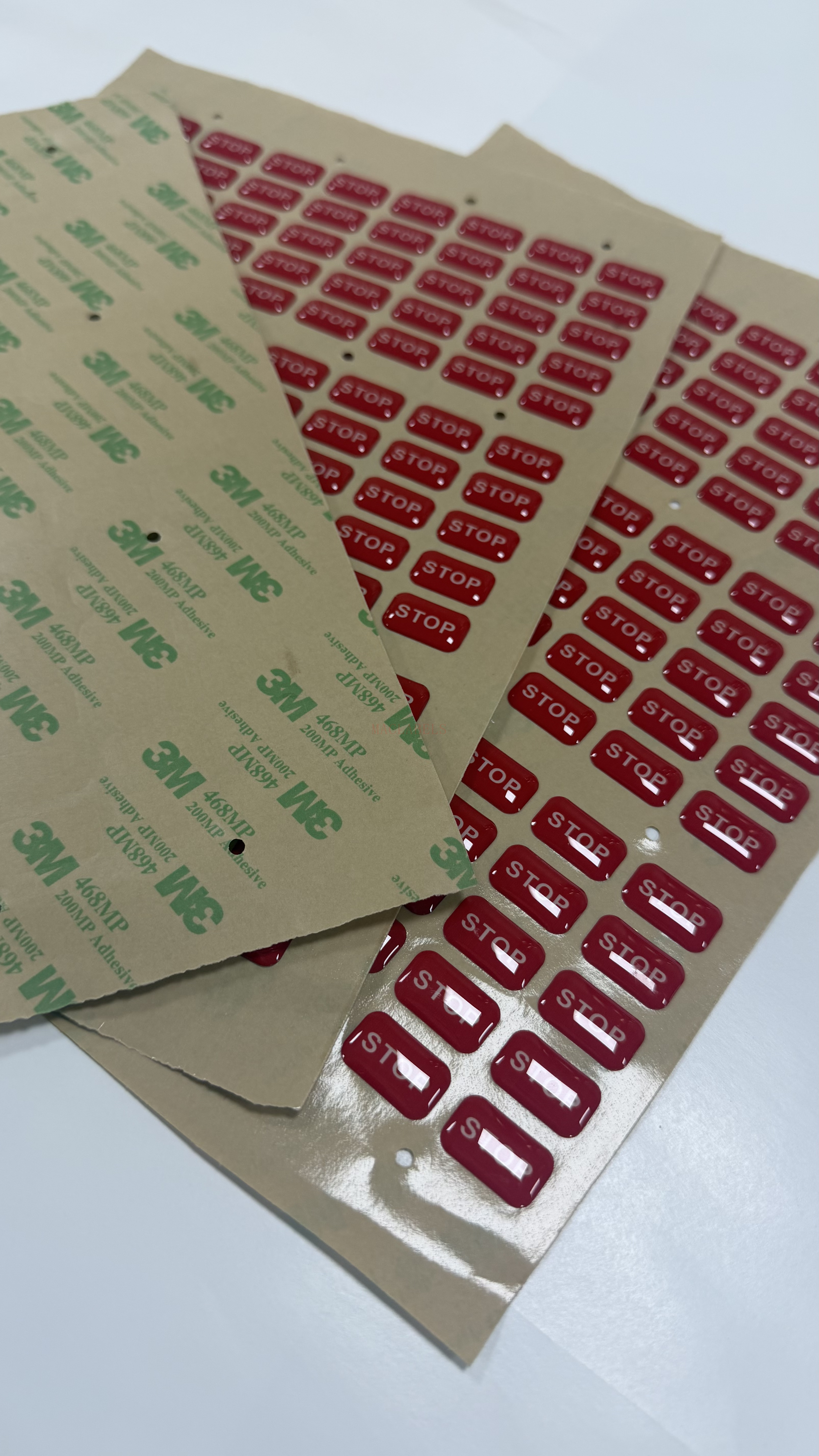

Enhance your electronic devices and industrial equipment with Mactape’s Custom Epoxy Resin Dome Keypads & Labels. Engineered for tactile comfort, exceptional visual depth, and ultimate environmental endurance, our domed labels combine genuine 3M™ Adhesive Transfer Tape 468MP with an advanced, non-yellowing epoxy formulation.
Whether you need prototype quantities or full-scale industrial runs, we offer Low MOQ (Starting at 1 Piece), custom shapes, high-precision die-cutting, and full color or metallic 3D print customization.
Genuine 3M™ 468MP Adhesive Backing: Powered by authentic 3M™ Adhesive Transfer Tape 468MP, delivering outstanding shear strength, temperature resistance, and high-bond reliability across metal, plastic, acrylic, and rubber substrates.
Non-Yellowing Outdoor Resin (5-Year Guarantee): Unlike traditional epoxy resins that turn brittle and yellow under UV exposure, our specialized formula is guaranteed anti-yellowing for up to 5 years, making it suitable for both indoor and outdoor environments.
High Elasticity & Scratch Recovery: Excellent flexible rebound properties ensure the 3D clear dome resists surface scratches, dents, and continuous finger presses without retaining permanent marks.
Dust-Free Cleanroom Manufacturing: Produced in certified cleanroom environments as an authorized 3M converter, guaranteeing clear resin lenses with zero dust inclusions or surface blemishes.
Ultra-Precise Die-Cutting: High-precision CNC die-cutting delivers flat, burr-free edges, exact dimensional tolerances, and complete freedom over intricate shapes and sizes.
Flexible Ordering: Minimum Order Quantity starting at 1 Piece, ideal for rapid engineering prototyping and custom small-batch runs.
Feature | Specification |
Product Type | Custom Epoxy Dome Keypads / 3D Tactile Overlays |
Adhesive Substrate | Genuine 3M™ 468MP (200MP High-Performance Acrylic) |
Surface Coating | Crystal Clear Flexible Epoxy Resin Lens |
UV & Weather Resistance | Anti-Yellowing Guaranteed for 5 Years |
Moq (Minimum Order) | 1 Piece (Fully Customizable Dimensions & Shapes) |
Manufacturing Environment | Certified Dust-Free Cleanroom Facility |
Tolerances | Ultra-precise edge alignment, clean die-cut finish |
Industry Applications | Electronics, Control Panels, Appliances, Medical Devices, Automotive |
Follow these simplified steps to ensure maximum adhesive bond strength and flawless long-term performance:
Surface Preparation: Ensure the application surface is clean, dry, and free of oil, grease, silicone, or dust. Clean thoroughly with isopropyl alcohol if necessary.
Environmental Conditions: Apply in a standard room-temperature environment. Avoid working in excessively cold, humid, or dusty spaces.
Application: Align the domed label precisely over the target area. Press firmly across the entire surface to ensure complete contact and eliminate air pockets.
Curing Period: Allow the adhesive to dwell for 24 hours at room temperature to reach full bonding strength. Avoid pulling, wiping, or exposing to water during this window.
Substrate Compatibility: Binds strongly to metals, plastics, acrylics, paper, and rubbers. Note: For low surface energy (LSE) materials, surface testing or specialized priming is recommended.
Authorized 3M Converter & Processor: Direct access to genuine materials ensures consistent batch quality and performance compliance.
Rapid Sample Delivery: Initial designs ready in 24 hours; physical samples dispatched within 48 hours.
Complete Customization: Unlimited options for 3D textures, metallic accents, cutouts, button embossing, and custom shapes.
