Adhesive-Free PC Panel Nameplate Overlays for Honeywell HA71 Gas Detection Controllers

Introduction

When a gas detection controller sits in a chemical plant control room for a decade, the front panel has to survive everything the environment throws at it — solvent fumes, wide temperature swings, oil mist, constant vibration, and the abrasive wipe-downs of routine maintenance. The printed overlay on that panel is not decoration. It is the operator's interface: the alarm legends, the terminal designations, the warning text, and the LED windows that tell a technician which channel has gone into alarm at three in the morning.

This case study documents a replacement overlay program we produced for the Honeywell HA71 sixteen-channel gas detection controller. The requirement was not simply "print a label." It was to deliver a panel that met flame-retardancy and temperature requirements, survived more than ten years of service, stayed optically clear over its windows, and — critically — carried no adhesive backing at all.

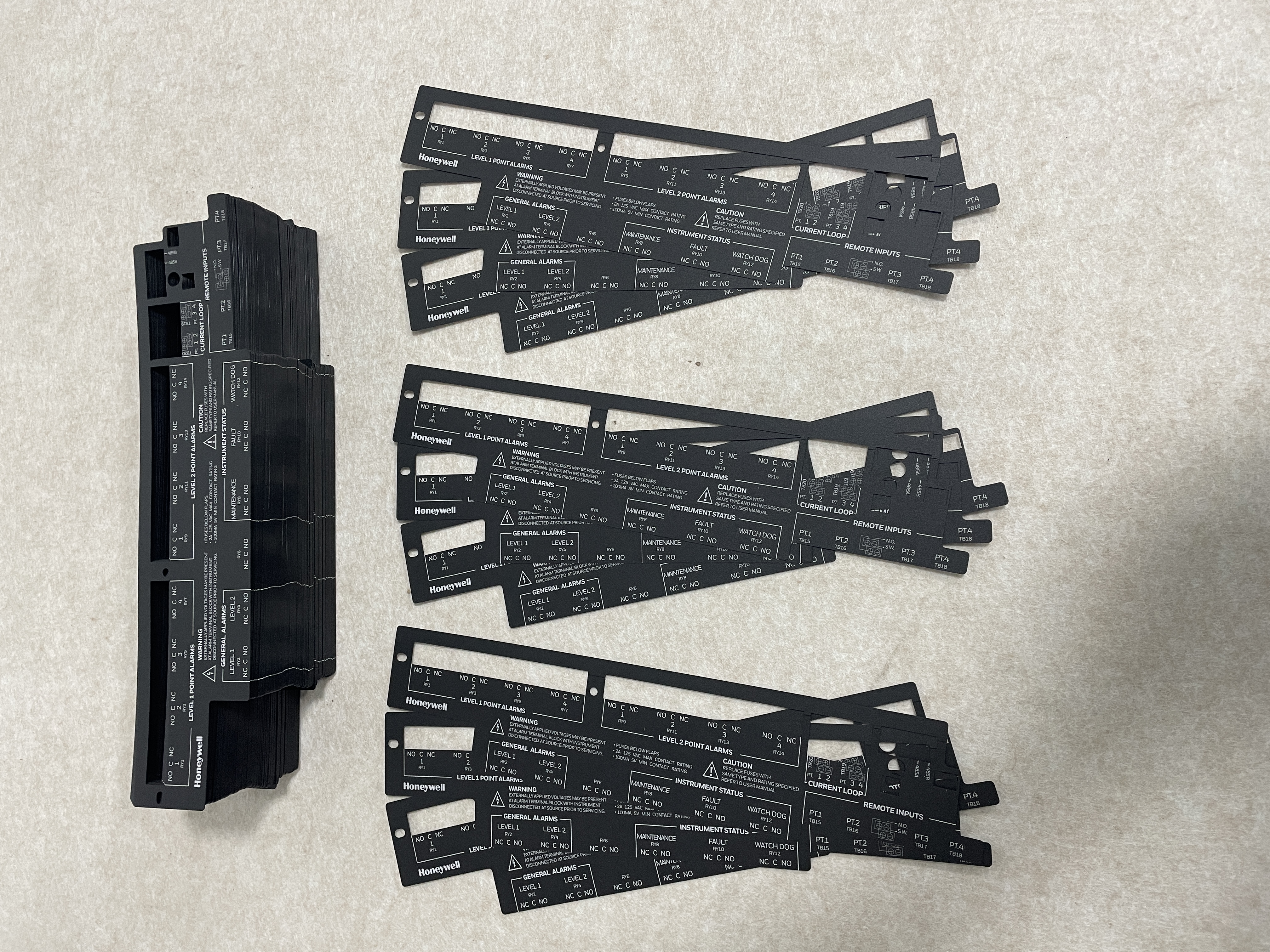

Black adhesive-free PC panel overlays for Honeywell HA71 gas detection controllers, shown as finished die-cut parts alongside mounted controller units

The Application: HA71 Gas Detection Controllers

The HA71 is an industrial combustible and toxic gas detection controller. A single unit accepts up to sixteen gas transmitter inputs and is typically installed in chemical plants, tank farms, and other process environments where continuous gas monitoring is mandatory.

Our scope covered the front panel overlay — the printed nameplate that sits on the controller fascia. Production included both full-face overlays with LED and display windows, and the individual legend segments that fit the controller's segmented frontage. The parts were supplied in sets, with the die-cut geometry matched precisely to the existing housing so each overlay seats correctly against the controller's moulded front.

Because these units are already in service, every overlay functions as a replacement part. That raises the bar: the panel must be a drop-in fit on hardware that has been in the field for years, and it must restore original legibility without any rework on the customer's side.

Why Standard Adhesive Labels Fail Here

The instinctive solution for a printed panel is a pressure-sensitive adhesive label. For this application it is the wrong answer, and the reasons are worth spelling out because they apply across most industrial control equipment:

• Oil, dust, and heat attack the adhesive. On a surface that accumulates oil mist and sees elevated temperatures, pressure-sensitive adhesive gradually loses tack. The label lifts at the edges first, then creeps.

• Continuous vibration works the bond. Equipment mounted on skids, near compressors, or in vibrating cabinets progressively shears the adhesive layer.

• Residue is unacceptable. Adhesive residue on a painted or powder-coated panel cannot be cleaned without damaging the finish. For equipment that must be re-certified or re-labelled, residue is a genuine defect.

• Nameplates get replaced. Serial numbers change, firmware designations change, and segments get swapped. An adhesive label is a one-shot part; a mechanically fixed panel is serviceable.

• Adhesive fogs optical surfaces. On any panel with windows over LEDs or displays, an adhesive layer behind or around the window scatters light and degrades contrast and recognition.

• The customer often has their own assembly sequence. Many OEMs want to assemble and test the unit first and apply adhesive only before final shipment — which means they need clean, adhesive-free printed parts as incoming material.

That last point decided the specification. The overlay had to arrive as a finished printed and die-cut part with no adhesive, to be retained by mechanical means.

The Solution: Adhesive-Free 8B35 PC Overlay

Substrate — 8B35 Matte Polycarbonate

We specified 8B35 matte-finish polycarbonate. Polycarbonate is the correct base for this duty because the material itself, with no coating or adhesive involved, already delivers what the panel needs:

• Flame retardancy to satisfy the equipment's safety requirement

• High and low temperature resistance across the controller's operating envelope

• Solvent and oil resistance — the panel face is wiped with aggressive cleaners in service

• Abrasion resistance — legends do not rub away under repeated cleaning

• Dimensional stability — critical for a drop-in replacement part, since the die-cut outline must not grow or shrink with age

The matte (8B35) surface matters as much as the polymer. A gloss face reflects overhead lighting directly into the operator's eye and washes out the printed legends and LED indication. The matte finish diffuses that reflection and keeps the panel readable under the harsh, high-mounted lighting typical of a plant control room.

Thin-gauge 8B35 polycarbonate overlay held to the light, showing material consistency, dimensional stability, and the absence of any adhesive backing

Printing — Front-Side Screen Printing

All graphics are applied by front-side screen printing using a durable ink system selected for water resistance, high-temperature resistance, and oil resistance. Screen printing remains the right process for this class of overlay because it lays down a heavy, opaque ink film that delivers:

• Crisp, high-contrast legends at the small type sizes used for terminal designations such as NC C NO and point identifiers like PT1 through PT4

• Dense black coverage on the panel background, with white legends reading cleanly against it

• Print durability that survives wiping, solvent contact, and abrasion far better than a thin digital ink film

Front-side screen printing in progress — heavy opaque ink laid down through a mesh stencil to produce durable, high-contrast panel legends

Because the graphics sit on the front face of the PC rather than being reverse-printed behind it, the ink must carry the full durability burden — which is exactly why the ink system was specified for water, heat, and oil resistance rather than chosen for cost.

Die-Cutting — Precision to the Housing Geometry

Every overlay is die-cut to the exact size and shape of the panel it replaces. The tooling must reproduce:

• LED and display windows, cut cleanly so no ink or burr intrudes into the viewing aperture

• Segmented outlines — the HA71 frontage is broken into discrete zones, and each segment is a separate die-cut part

• Mounting cut-outs and locating holes that align with the controller's moulded features

• Sharp internal corners and narrow webs without tearing or delamination at the edges

Precision die-cut HA71 overlay parts laid out flat, showing segmented geometry, window apertures, and locating cut-outs

Close-up of the die-cut overlay profile and printed legend detail, held to show the thin gauge and clean edge finish

Tolerance control is what separates a drop-in replacement from a rework job. A window cut a fraction off-centre will mask an LED; an outline a fraction oversize will not seat in the fascia recess. Because these parts are mechanically located rather than adhesively placed, there is no compliant adhesive layer to absorb fit error — the die-cut edge is the fit.

Specification Summary

Engineering Requirements and How They Were Met

Design Detail: What the Overlay Has to Communicate

An industrial gas detection panel is an information-dense surface, and the overlay has to render all of it without compromise. The HA71 panels we produced carry:

• Brand and model identification — Honeywell wordmark and controller designation

• Alarm hierarchy legends — LEVEL 1 POINT ALARMS, LEVEL 2 POINT ALARMS, GENERAL ALARMS, and TROUBLE zones, so an operator can identify severity at a glance

• Safety warning text — the full WARNING and CAUTION blocks, including the servicing instruction to disconnect primary power in accordance with NFPA 72 and to remove all battery power and other power sources before servicing

• Terminal designations — repeated NC C NO contact markings across each alarm zone, plus point and terminal identifiers (P1–P4, PT1–PT4) that let a technician land wires without consulting a drawing

• Function labels — WATERSAFE, INSTRUMENT STATUS, CURRENT LOOP, and REMOTE INPUTS zones

• Warning triangles — the standard alert symbols reproduced with clean, sharp edges

Complete segmented overlay panel set for the HA71 frontage, each die-cut segment carrying its own alarm legends, terminal designations, and warning text

Small type at this density is exactly where screen printing earns its place. Every one of those legends must remain legible after a decade of cleaning, and the register between printed window apertures and die-cut openings must hold to a tight tolerance.

Installation Methods

Because the overlay carries no adhesive, it is retained by one of four methods depending on the customer's assembly process:

1. Screws or rivets — the most durable option for panels exposed to heat, oil, and vibration, and the method used where a nameplate must never shift or lift

2. Label frame or card slot — the part is inserted into a moulded frame or slot; common for segmented legend cards that may be revised later without replacing the whole panel

3. Punched hole with cable tie or wire — for hang tags and asset identification on tooling, moulds, fixtures, valves, and pipework

4. Customer-applied adhesive at final assembly — the OEM receives clean adhesive-free PC parts, completes assembly and testing, then applies double-sided tape or structural adhesive immediately before shipment

Option four is common in practice and is one of the main reasons OEMs order adhesive-free parts in the first place: it lets them keep adhesive application inside their own controlled final-assembly step instead of inheriting a pre-applied bond that may have aged in a warehouse.

Where Adhesive-Free PC Nameplates Fit

This construction is not limited to gas detection equipment. The same logic applies wherever a pressure-sensitive bond is the weak link:

• Equipment nameplates and machine parameter plates — control cabinets, automation equipment, construction machinery, motors, instruments, and new energy equipment carrying model, serial number, specification, and CE/RoHS markings

• Slot-type identification cards — pushbutton labels on distribution boards, shelf slot labels, cabinet insert cards, and equipment panel cards

• Hang tags and asset identification — tooling, moulds, fixtures, valves, pipework, and warehouse assets, punched and hung on cable ties

• Fixtures, gauges, and vision targets — datum markings and reflective or vision positioning targets mounted in fixture slots, where an adhesive layer would fog or contaminate an optical surface

• Secondary processing stock — plain or printed PC sheets supplied adhesive-free for customers who apply their own bonding system downstream

Quality Control

For replacement parts going into fielded equipment, inspection is not optional. Each production run is checked for:

• Die-cut dimensional accuracy against the drawing, particularly window apertures and mounting cut-outs

• Print registration between printed graphics and die-cut features

• Legend legibility at the smallest type sizes on the panel

• Ink adhesion and cure — verified so the print survives wiping and solvent contact

• Edge quality — no burrs, nicks, or delamination along the die-cut profile

• Flatness — the part must sit flush against the housing with no bowing

FAQ

What does "adhesive-free PC nameplate" mean?

It is a printed polycarbonate nameplate supplied with no pressure-sensitive adhesive backing. The part is printed, die-cut, and finished, then retained mechanically by screws, rivets, clips, a label frame, or an adhesive the customer applies during final assembly.

Why choose no adhesive instead of a standard adhesive label?

Adhesive fails where the application is hostile — oil, dust, elevated temperature, and sustained vibration all attack the bond, and residue cannot be removed without damaging the panel finish. An adhesive-free PC part is also serviceable and replaceable, which an adhesive label is not.

Can the overlay be made as a direct replacement for an existing panel?

Yes. The part is die-cut to the exact dimensions and shape of the panel being replaced, including windows, segmented outlines, and mounting cut-outs, so it seats on existing hardware without modification.

What is the service life?

The construction is specified for ten years or more in service. There is no adhesive layer to age, no thin ink film to wear through, and no laminate to delaminate — the durability rests on the PC substrate and the screen-printed ink film.

Can the legends be customised?

Yes. Screen printing accommodates custom legends, warning text, terminal designations, symbols, and window layouts. Artwork is prepared to the panel drawing and printed to the required registration tolerance.

Can you supply matching segmented sets?

Yes. Panels with a segmented frontage are supplied as complete die-cut sets, with each segment cut to its specific position on the housing.

Conclusion

The HA71 overlay program came down to a single decision: stop relying on an adhesive bond in an environment designed to destroy it. By specifying 8B35 matte polycarbonate, printing the graphics by front-side screen printing with a durable water-, heat-, and oil-resistant ink system, and die-cutting to the exact housing geometry, the resulting panel is flame retardant, abrasion resistant, optically clean over its windows, and specified to last beyond ten years — with nothing to delaminate, degrade, or leave residue behind.

If you are sourcing replacement panel overlays or designing a nameplate for new equipment and want to eliminate the adhesive failure mode entirely, send us your panel drawing and we will quote a printed, die-cut, adhesive-free PC part to match.
