What backing materials are available for die cut adhesive tape？

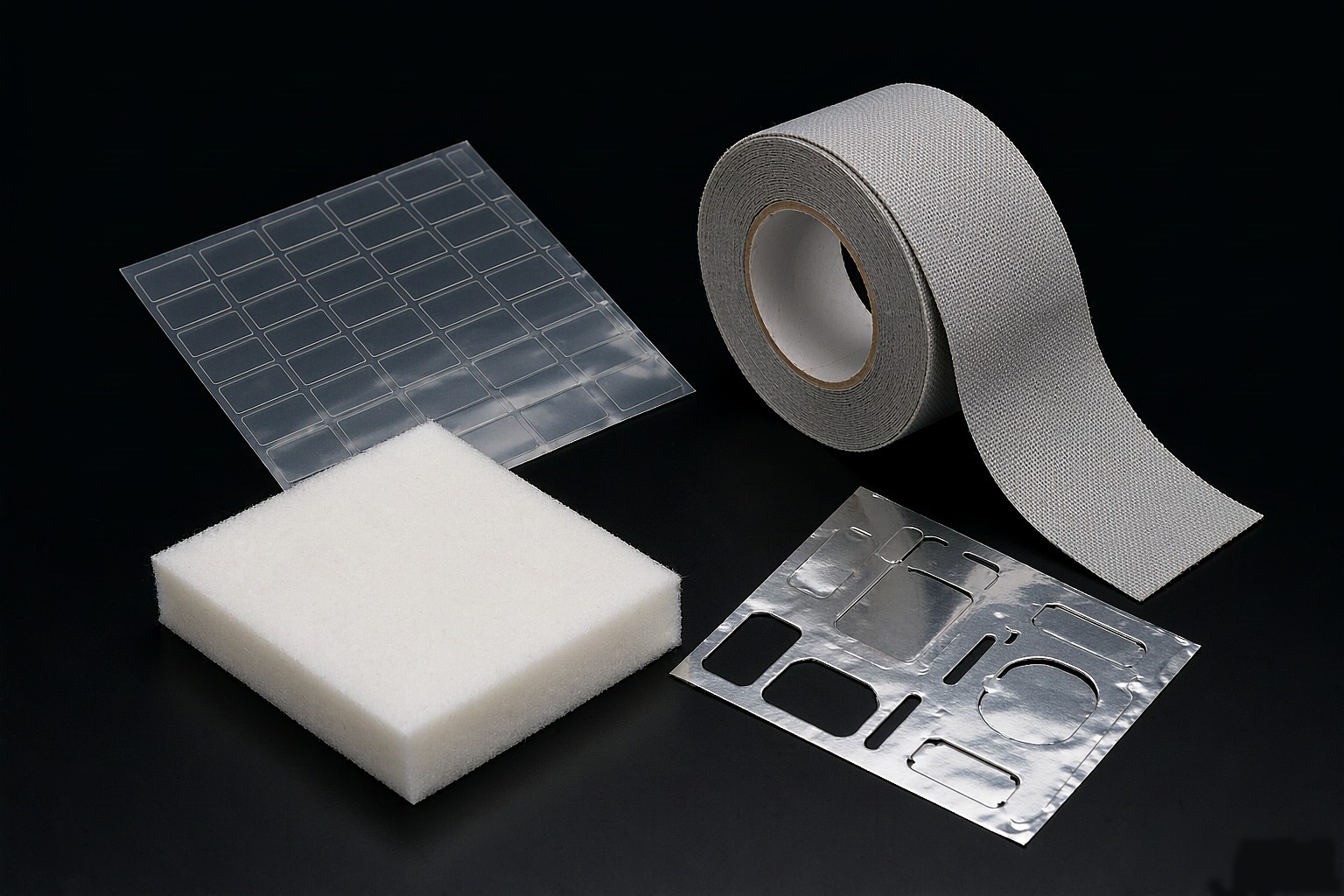

Die cut adhesive tape backing materials fall into four main families: PET film, foam, cloth, and aluminum foil. Each family solves a different engineering problem. PET delivers dimensional stability and thin, precise parts. Foam handles gaps, vibration, and sealing. Cloth brings conformability and tear strength. Aluminum foil adds heat shielding and EMI performance. Choosing the wrong backing is one of the most common reasons a die cut part fails on the production line, long before the adhesive itself is questioned. This article explains what each backing does, where it performs best, and how to select and validate the right option for your application. If you are still deciding between converting formats, start with the overview of precision die cut adhesive tape and then match the backing to your substrate, environment, and assembly method.

Key Takeaways

1. The backing is the structural half of the tape. The adhesive decides how the part sticks, but the backing decides how the part survives: its strength, thickness tolerance, temperature resistance, and die-cutting behavior all come from the carrier layer.

2. Match the backing to the failure mode, not the spec sheet. PET for precision and stability, foam for gap filling and vibration, cloth for conformability and tear resistance, foil for heat and electrical shielding.

3. Validate on the real substrate. Backing stiffness changes how a die cut part conforms to curved or textured surfaces, so trial cuts on production materials are the only reliable proof before mass production.

What a Backing Does in Die Cut Adhesive Tape Construction

Every pressure-sensitive tape is a sandwich: a backing (also called the carrier), one or two adhesive layers, and a release liner that protects the adhesive until assembly. When the tape is converted into die cut parts, the backing becomes the visible, functional body of the component. It carries the mechanical loads, defines the part's final thickness, and absorbs most of the environmental stress the part will ever see.

The backing also controls how the tape behaves during converting. A stiff film cuts cleanly with sharp inside corners; a soft foam compresses under the die and needs different tooling; a woven cloth can fray at the edges unless the cutting method is matched to the weave. This is why backing selection is made at the design stage, not as an afterthought at the converter.

Because the backing dominates both performance and manufacturability, most die cut adhesive tape constructions are named by their carrier first — a "PET tape," a "foam tape," a "cloth tape" — with the adhesive chemistry specified second.

Why Backing Choice Determines Die-Cut Part Performance

Two tapes with the same adhesive can behave completely differently once die cut. Consider three practical consequences:

• Dimensional accuracy. A PET film holds its cut dimensions within tight tolerances even in humid conditions. A paper or soft backing can swell and shrink, moving holes and slots out of registration with mating features.

• Conformability. A thin backing wraps around a curved housing; a thick foam bridges a gap between two uneven panels. If the backing is too stiff for the surface, the adhesive bond line becomes stressed at the edges and lifting begins.

• Environmental resistance. The backing is the part's armor. It faces UV, heat, chemicals, abrasion, and moisture first. An adhesive may survive an environment the backing cannot, and vice versa.

Failures blamed on "bad adhesive" are frequently backing failures: a foil carrier cracked by vibration, a foam that compressed permanently under a clamp load, or a PET part that slid on a curved surface because the backing had no mechanical grip. Understanding each family prevents these mismatches early.

Main Backing Material Families for Die Cut Adhesive Tape

PET film backing: precision and stability

Polyethylene terephthalate (PET) is the workhorse film backing for precision die cut parts. It is strong for its thickness, dimensionally stable across a wide temperature range, resistant to most chemicals and moisture, and available from roughly 12 to 250 microns. PET cuts cleanly, holds small features and tight corner radii, and stays flat on automated dispensing equipment.

PET-backed die cut tape suits electronics assembly, nameplate mounting, spacers and insulators, and any part where hole positions must register precisely. Typical use cases overlap heavily with general adhesive tape products for bonding and mounting, where thin, stable carriers are preferred over thick conformable ones. The main limitations: PET offers little gap-filling ability and can be noisy or brittle on rough, uneven surfaces.

Foam backing: gap filling, sealing, and vibration control

Foam backings — PE, PU, and acrylic foams are the common families — compress to absorb tolerances between mating parts. A die cut foam gasket seals against dust and water splash, damps vibration, cushions impact, and bonds uneven or textured surfaces that a film backing cannot wet out. Thickness typically ranges from about 0.4 mm to several millimeters.

The trade-offs are real. Foam compresses under load and can take a permanent set if over-compressed in the design. Soft foams deform during die cutting, so tooling and cutting speed must be controlled to keep edges clean. And where the application needs parts that can be opened and reclosed rather than permanently bonded, a dual lock reclosable fastener is often a better engineering answer than any foam adhesive tape.

Cloth backing: conformability and tear strength

Cloth (woven fabric, usually cotton, polyester, or blends) backings combine high tensile strength with hand-tearable convenience. The weave lets the tape conform to irregular shapes and wire bundles, resists tearing along the tape direction, and survives abrasion better than most films. Duct-style cloth tapes and friction-tape constructions are the classic examples.

Die cut cloth parts appear in cable harness securing, temporary fixing during manufacturing, protective wrapping, and splicing applications. Edge quality is the converting challenge: the weave can fray, so sharp tooling, appropriate cutting pressure, and sometimes edge treatment are required. Cloth also absorbs moisture, so outdoor or immersion use needs careful evaluation.

Aluminum foil backing: heat, light, and electrical shielding

Aluminum foil backings bring properties no polymer film can match: continuous service at high temperatures, near-total light and moisture barrier, and electrical conductivity for EMI shielding and grounding. Die cut foil tapes are used for heat reflecting in appliance and lighting assemblies, EMI shielding in electronics enclosures, ESD grounding paths, and HVAC sealing.

Foil cuts cleanly but has almost no elongation — it cannot conform to deep curves or textured surfaces without creasing, and sharp edges demand careful handling. Many constructions add a polymer coating or liner-side treatment to improve puncture resistance and printing. Match the adhesive to the temperature profile, because the foil itself rarely fails first; the adhesive does.

How to Select the Right Backing Material

Work through the following factors in order. Most applications eliminate two families in the first two questions.

1. Surface geometry. Flat, smooth, rigid surfaces favor PET or foil. Curved, irregular, or textured surfaces favor foam or cloth. The backing must reach the surface before the adhesive can bond to it.

2. Gap and tolerance. If the parts to be bonded have a visible gap or loose tolerance, foam thickness does the work. Film backings cannot bridge gaps; they stress and lift.

3. Temperature range. Check both ends: PET and foil handle heat far better than PE foam; adhesives and liners often set the real limits. Confirm continuous and peak temperatures separately.

4. Mechanical stress. Dynamic loads, vibration, and peel forces push toward cloth or high-strength foam. Static, low-load mounting tolerates thin films.

5. Environmental exposure. UV, moisture, chemicals, and abrasion each penalize different backings. Foil blocks light and moisture; PET resists chemicals; cloth absorbs moisture and needs protection outdoors.

6. Electrical requirements. EMI shielding, grounding, or insulation targets point directly to foil (conductive) or PET (insulating) respectively.

7. Converting and assembly method. Tight die-cut tolerances and automated application favor PET. Hand-applied, tear-to-length parts favor cloth. Compressible gaskets require foam-appropriate tooling.

Converting and Validation Guidance

Once a candidate backing is shortlisted, treat converting as part of the design rather than a downstream step. Backing hardness dictates cutting method: hard films cut well with rotary or flatbed steel-rule tooling, foams often need matched-metal or kiss-cut approaches to avoid edge distortion, and cloth benefits from sharp blades and controlled speed. When the part geometry is complex or the backing is unforgiving, involve your converter's custom die-cutting and converting services at the drawing stage; small changes to corner radii and hole spacing can dramatically improve yield.

Validation should be documented and repeatable:

• Cut trial parts from the production lot material, not samples from a different batch.

• Apply to the actual production substrate with the real application pressure and dwell.

• Measure peel and shear after 24 hours and after any conditioning the part will see (heat, cold, humidity, chemicals).

• Inspect edges for lifting, foam for compression set, foil for cracking, cloth for fraying.

• Define pass/fail criteria before testing and retain approved samples for comparison.

• Revalidate whenever the substrate, coating, adhesive, or backing supplier changes.

No bench test replaces the applicable formal standard where one exists for your industry. Use internal validation to de-risk the design, then confirm compliance requirements separately.

Backing Material Comparison for Die Cut Applications

Common Mistakes and Failure Risks

• Choosing thickness to solve an adhesion problem. If a film backing lifts on a curved surface, the fix is a more conformable backing or better surface preparation — not a stronger adhesive on the same stiff carrier.

• Over-compressing foam in the design. Specifying a foam gasket to compress more than roughly 25–30% of its thickness accelerates compression set. Design the gap so the foam works in its healthy range.

• Ignoring liner and adhesive limits. The foil or PET backing may tolerate 150 °C while the adhesive or liner fails at 90 °C. Always confirm the full construction's ratings, not the backing alone.

• Cutting cloth with worn tooling. Frayed edges begin as a tooling problem. If a cloth die cut part shows fuzz, check blade condition and cutting pressure before blaming the material.

• Testing on pristine samples only. Production substrates carry oils, mold release, and texture. Validation on cleaned lab panels overstates real-world bond performance.

• Skipping revalidation after supplier changes. A "same spec" PET from a new mill can behave differently in die cutting. Treat material changes as design changes.

Questions to Ask Your Die Cut Tape Supplier

Arrive at the conversation with drawings and, ideally, substrate samples. Then press on these points:

1. Which backing families and thicknesses do you stock, and what is truly custom for you?

2. What die-cutting tolerance can you hold on this backing at this part size?

3. How do you handle edge quality on foam and cloth backings?

4. What is the full construction's temperature and chemical rating, including adhesive and liner?

5. Can you supply trial die cut parts from production-intent material for our validation?

6. What application data do you need from us to recommend a backing — surface energy, gap, loads, environment?

Suppliers with genuine application engineering depth will answer with specifics. MAC Labels supports backing selection and construction design through its application engineering and material solutions services, and the broader MAC Labels material portfolio covers label, tape, and film constructions for industrial converting.

Next Steps

1. Confirm the substrate geometry, gap, temperature range, and environmental exposure for your application in writing.

2. Compare one candidate backing per family (PET, foam, cloth, foil) against your failure mode before narrowing further.

3. Request trial die cut parts produced from production-intent material and liners.

4. Test peel, shear, edge lift, and compression set on the real substrate with documented pass/fail criteria.

5. Review converting feedback — tooling, tolerances, edge quality — before releasing the part drawing for production.

FAQ

Q: What is the most common backing material for precision die cut adhesive tape?

A: PET film is the most common for precision work. It is dimensionally stable, resists chemicals and moisture, cuts cleanly at small feature sizes, and holds hole and slot positions accurately. Foam, cloth, and foil backings serve specialized roles where gap filling, tear strength, or heat and EMI performance matter more than precision.

Q: When should I choose foam backing instead of PET film?

A: Choose foam when the joint has a gap, the surfaces are textured or uneven, or the part must seal or damp vibration. Foam compresses to absorb tolerances that a thin PET film cannot. Choose PET when parts are flat, smooth, and the design needs tight dimensional accuracy and low profile.

Q: Can aluminum foil die cut tape be used for EMI shielding?

A: Yes, foil-backed conductive adhesive tapes are a standard solution for EMI shielding and grounding in electronics enclosures. Confirm the adhesive's conductivity or the shielding path design with your supplier, and verify foil thickness against the frequencies and mechanical handling the assembly will face.

Q: Does cloth backing tape work outdoors?

A: Cloth backings absorb moisture and degrade under sustained UV, so standard cloth constructions are best treated as indoor or short-term outdoor products. For continuous outdoor exposure, PET or foil backings with UV-stable adhesive systems are safer choices. Always validate under realistic weathering before committing.

Q: How does backing thickness affect die cutting accuracy?

A: Thicker, softer backings compress under the die, which widens effective tolerances and can round edges. Thin, hard films like PET hold the tightest cut tolerances. Foam requires tooling and cutting parameters designed for compression, and cloth needs sharp blades to prevent fraying along the weave.

Q: What information should I give a supplier when requesting die cut parts?

A: Provide the part drawing with tolerances, substrate materials and surface condition, the gap or stack-up to be bridged, operating temperature range, environmental exposure, expected loads, and application method (manual or automated). With this, the supplier can recommend backing and adhesive combinations and quote trial parts realistically.
