Neither steel rule die cutting nor laser die cutting is universally more precise. Precision means different things in converting, and each method leads on a different one. A steel rule die holds dimensional repeatability across very long runs and produces clean, sheared edges on laminated tape. Laser cutting wins on geometric freedom, on parts that are too complex or too short-run to justify tooling, and on thick foams where a blade struggles. The confusion starts when a buyer asks for "the most precise method" and receives parts that fail for a reason precision alone cannot explain: charred adhesive at the edge, liner scored by blade pressure, or a tolerance that drifts after thousands of strokes. This article separates the three kinds of precision, explains how each process behaves on pressure-sensitive material, and shows how to validate a method before production tooling is committed.
Separate dimensional precision from edge precision. Steel rule dies typically hold tighter repeatability on high-volume kiss-cut parts, while laser cutting produces a smaller achievable feature size but a heat-affected edge that changes how the adhesive behaves.
Let volume and design stability pick the method. Steel rule tooling rewards long, stable programs with consistent geometry. Laser cutting avoids tooling entirely, which suits prototypes, low volumes, and outlines that change often.
Validate on the real tape construction. Adhesive chemistry, liner release, and total caliper decide whether either method delivers a usable part, so approval should come from samples cut on production stock rather than a generic laminate.

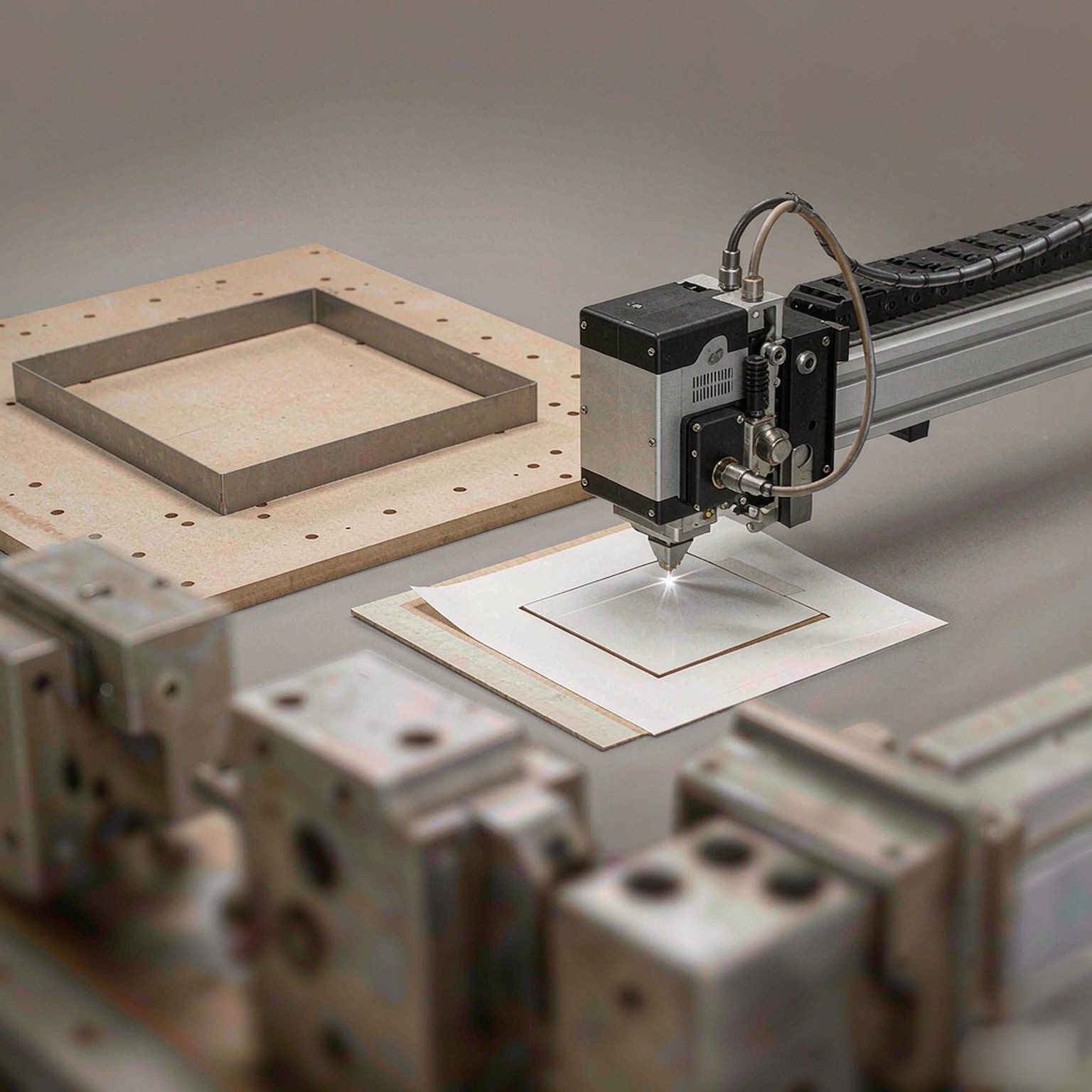

Both processes turn a roll or sheet of laminated tape into finished parts. The outline is identical; the way the material is severed is not.
Steel rule die cutting uses a formed blade, called a steel rule, bent to the shape of the finished part and set into a die board. The press forces the blade into the material, shearing the layers it is set to cut. Depth is controlled so the blade severs the facestock and adhesive while leaving the liner intact, which is the standard format for parts dispensed from a roll. The cut is mechanical, so the edge is a clean shear with no thermal change to the adhesive.
Laser die cutting uses a focused beam that vaporizes or melts material along a programmed path. There is no blade and no die board. The same machine can cut a new outline in minutes by loading a different file. The trade-off is thermal: the beam heats the material it passes through, and on pressure-sensitive tape that heat reaches the adhesive, the liner, and sometimes the facestock.
Most production converting for industrial adhesive tapes uses one or both of these routes, and many suppliers run them side by side so a job can be routed to whichever method fits the geometry and volume.
The mechanics explain where each method earns its reputation, so it helps to look at four practical consequences.
A steel rule shears the tape. The blade enters at an angle, compresses the material locally, then separates it. Because the action is mechanical, the cut faces are the same material as the bulk of the part. A laser removes material instead of separating it, leaving a narrow channel where the tape used to be. On thin films that channel is small; on thick foams it becomes a visible gap that changes part dimensions.
Every cutting method removes or displaces a small amount of material, and that width is the kerf. A laser kerf is typically narrower than a steel rule kerf, which is why laser cutting can produce finer internal features, tighter radii, and delicate webs that a blade would distort or tear. When a part needs a slot narrower than a practical blade width, laser is often the only realistic route.
This is the difference buyers most often underestimate. Laser energy heats the adhesive near the cut line. Depending on chemistry and dwell, that heat can soften the adhesive, darken or char the edge, generate fumes and residue, and alter tack at the perimeter of the part. The effect is not automatically a defect, but it must be evaluated on the specific construction. Steel rule cutting introduces no such change, so the adhesive performs the same at the edge as in the middle.
A steel rule die is a physical tool that must be produced, mounted, and periodically replaced as the blade wears. That cost is fixed, so it only makes sense when volume or program length spreads it across enough parts. Laser cutting carries no tooling, so the first part and the ten-thousandth part cost the same to set up. Design changes are effectively free. This is why prototypes and low-volume variants almost always start on a laser.
Whichever route is used, the cut only defines the outline. What the finished part does in service still depends on the tape construction itself, so it pays to understand how general adhesive tape products are built before locking in a converting method.
Work through these factors in order. Volume and geometry usually settle the question on their own.
Write down the requirement in the right terms. If the concern is that every part must match the drawing across a long run, dimensional repeatability is the target. If the concern is that a feature must be smaller or more intricate than a blade can manage, feature resolution is the target. If the concern is that the bond must be uniform right to the edge, edge integrity is the target. The three rarely point to the same method.
Estimate total parts over the life of the program, not the first order. Long, stable, high-volume programs absorb steel rule tooling easily. Seasonal demand, engineering iterations, and many low-volume part numbers favor laser, where nothing is written off when a design changes.
List every layer: facestock, adhesive, liner, and any foam, foil, or additional film. Note total caliper and the stiffness of each layer. Thin, dimensionally stable laminates shear cleanly under a steel rule. Thick foams, dense constructions, and materials with heat-sensitive adhesives or low-melt liners need closer scrutiny on a laser, because the beam interacts with every layer it crosses.
Decide whether the part needs a kiss cut, which severs the facestock and adhesive but leaves the liner intact, or a through cut that severs every layer. Kiss cutting depends on depth control, and depth control is a mechanical adjustment on a steel rule press. Laser kiss cutting relies on precisely tuned power and speed to stop at the adhesive-liner interface, and any drift either leaves parts attached or scores the liner so it breaks during dispensing.
Very large formats and unusual outlines are straightforward with a steel rule, because the die board can be built to almost any footprint. Very fine internal detail, narrow slots, and tight radii favor laser.
Ask what the edge must look like and what touches it next. Exposed adhesive edges that will be handled, stacked, or fed into automated equipment generally benefit from a shear-cut edge with no residue. Edges that are hidden inside an assembly are far more forgiving, which can open the door to laser on parts where it would otherwise be excluded. Suppliers with in-house custom die-cutting capability can usually advise on which format reduces handling between steps.
Consider how often the part will be reordered. A die used once and shelved rarely pays for itself; one that runs monthly for years becomes the more consistent option, provided the material stack does not change.
A method decision made on paper still needs physical confirmation. Use this sequence to reduce the risk of approving a process that cannot hold the tolerance you need.
Define the requirement in numbers. Write down part dimensions, cut type, tolerance limits, minimum feature size, and any print-to-cut registration window. Vague requirements make method comparison impossible.
Confirm the production material stack. Name the exact facestock, adhesive chemistry, liner type, and caliper. Cutting behavior changes when any layer changes.
Request samples from both methods where feasible. Cutting the same part on a steel rule press and a laser shows the real differences in edge condition, kerf, and dimensional consistency.
Measure the samples against the requirement. Check dimensions, edge condition, adhesive squeeze-out, discoloration, liner integrity, and whether parts release cleanly for handling.
Test the assembled part. Adhesion after dwell time, peel, and shear belong to the tape construction, but a poor cut can reduce bond area or damage edges. Validate on the actual substrate.
Run a production-length trial. Short samples can hide blade wear, laser power drift, or liner stretch. A trial long enough to reveal drift gives a far more reliable answer.
Approve and retain reference samples. Keep a signed physical sample from the accepted method as the baseline for incoming inspection.
Revalidate after any change. A new adhesive, liner, or facestock can shift how the material cuts, so the approved method should be revisited.
Recording power, speed, focus, blade pressure, and tool condition during the trial makes the result reproducible. A generic test laminate proves nothing about your production stack.
Factor | Steel Rule Die Cutting | Laser Die Cutting |
|---|---|---|
Cutting mechanism | Formed blade shears the material mechanically | Focused beam vaporizes or melts along a path |
Tooling required | Yes, a die board and rule bent to the part outline | None, only a digital cutting file |
Typical best fit by volume | High volume, long-running, repeat programs | Prototypes, low volume, frequent design changes |
Dimensional repeatability | Very consistent across long runs until the blade wears | Consistent within a file, but sensitive to power and focus drift |
Achievable feature size | Limited by practical rule width and bending radius | Finer internal features, tighter radii, narrow slots |
Kerf | Wider, set by the rule thickness | Narrower, but the removed channel is visible on thick foams |
Effect on adhesive | None, the edge is sheared without heat | Heat-affected zone may soften, discolor, or char the edge |
Liner handling | Kiss cut depth set mechanically | Kiss cut depends on precise power and speed control |
Design change cost | New or modified die required | Effectively none beyond programming time |
Material range | Best on thin, dimensionally stable laminates | Handles thick foams and dense stacks with geometry freedom |
Most precision complaints trace back to a mismatch between the method and the material, or to a requirement that was never confirmed in production conditions.
Tolerance alone does not describe a part. Two suppliers can both hold a dimensional tolerance while one delivers clean sheared edges and the other delivers a discolored adhesive line. Precision must be specified as dimensional, geometric, and edge quality together, or the comparison is meaningless.
Some adhesive chemistries tolerate laser energy well and some do not. Charring, tack loss at the perimeter, and residue that transfers to handling equipment appear only on certain combinations.
If blade pressure is too deep, the liner is scored and the roll can break during dispensing. If pressure is too light, parts stay attached and jam downstream equipment. Laser kiss cutting faces the same window from the other direction, where small changes in power or speed push the cut into the liner.
A part that cuts perfectly can still fail in production if it cannot be stripped, oriented, or dispensed efficiently. Automated feeding of small parts, or converting tape for electrical assemblies such as electrical insulation tape applications, places specific demands on liner release and part stability that should be defined before any tooling is cut.
Hand-cut or short-run samples can look identical to production output while hiding blade wear, focus drift, or liner stretch that appears only after thousands of cycles. Trial length should reflect the real run, and the trial should be measured, not eyeballed.
Two laminates that look the same can cut differently because of facestock stiffness, adhesive flow under pressure, or liner release characteristics. Reviewing the full label facestock and liner construction with the converter avoids surprises at scale.
A die approved on one liner may behave differently on another. A laser recipe tuned for one adhesive may char a substitute. Any change to the stack should trigger a revalidation, not a silent substitution.
The answers reveal whether a supplier can genuinely support your part, or only quote it.
Which method do you recommend for this volume, geometry, and material, and why?
What tolerance and minimum feature size can you hold on this specific construction, measured on production material?
Can you provide samples cut on the recommended method from our actual stock?
How do you control kiss cut depth so the liner stays intact?
What edge condition should we expect, and how is it inspected?
For laser cutting, how do you manage the heat-affected zone on our adhesive chemistry?
What is the changeover time and cost if the design changes?
Which downstream feeding formats can you supply, such as rolls, sheets, or pre-cut parts?
How do you validate a new adhesive, liner, or facestock before it enters production?
A supplier that can also contribute application engineering support will typically flag material or handling risks earlier in the process, when changes are still inexpensive.
Confirm in writing which precision you need: dimensional repeatability, minimum feature size, or edge condition.
Document the exact material stack, including facestock, adhesive chemistry, liner, and caliper.
Request comparative samples from both a steel rule press and a laser where your supplier can offer them.
Measure the samples against written limits, then test the finished parts on the real substrate.
Approve a production-length trial, retain reference samples, and revalidate after any material or supplier change.
A: It depends on the type of precision. Steel rule dies generally hold dimensional repeatability more consistently across long production runs and produce a clean sheared edge with no thermal change to the adhesive. Laser cutting achieves finer internal features and tighter radii because its kerf is narrower and it is not limited by blade geometry. For high-volume kiss-cut parts, steel rule usually wins on repeatability. For intricate or short-run geometry, laser usually wins. Specify which precision matters before comparing the two.
A: Yes, and it is widely used for prototypes, low volumes, and complex outlines. The main consideration is heat. The beam raises temperature along the cut line, which can soften, discolor, or char the adhesive and generate residue at the perimeter. Whether that matters depends on the adhesive chemistry, the thickness, and how the edge is used. Test the specific construction before assuming laser output will match a sheared edge.
A: Blade wear is the most common cause. As the rule dulls, required pressure rises, the material compresses more before it separates, and the finished dimension shifts. Die board movement, worn press components, and changes in material caliper contribute as well. Drift usually appears gradually across a long run rather than in a single bad batch, which is why a production-length trial and periodic dimensional checks matter more than a first-article inspection alone.
A: Laser cutting is normally the lower-risk starting point because it requires no tooling. You can produce parts, test fit and function, and revise the design without writing off a die. Steel rule tooling becomes easier to justify once the design is stable and the volume is confirmed. Many programs follow exactly that path, moving from laser prototypes to a steel rule die for ongoing production.
A: Heat from the beam can reduce tack in a narrow band along the cut edge, and in some chemistries it darkens or chars the adhesive. If the part bonds across its full face, a small perimeter effect may be irrelevant. If the bond depends on edge contact or the part is very small, that band can represent a meaningful share of the bond area. Evaluate peel and shear on laser-cut samples rather than assuming the center performance applies to the edge.
A: Specify the tolerance the application genuinely requires, then confirm the supplier can hold it on your material. Tighter tolerances than necessary add cost and may force a method you do not need. State the dimension, the cut type, and the inspection method together, because a tolerance is only meaningful when both parties measure the same feature the same way. Where print-to-cut registration matters, define that window separately.
A: Yes, but they control depth differently. A steel rule press sets kiss cut depth mechanically, so the blade severs the facestock and adhesive while stopping at the liner. A laser achieves the same result by tuning power and speed to stop at the adhesive-liner interface. Both are workable, and both have a narrow window on some material combinations. Confirm that the liner survives handling and dispensing, not just that the cut depth looked correct on a sample.
