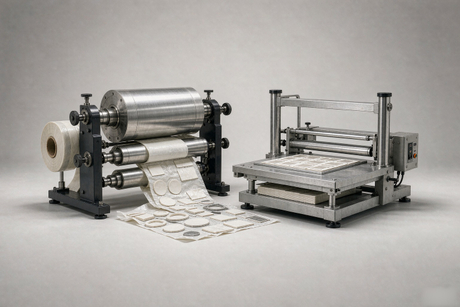

Rotary die cutting and flatbed die cutting are two converting methods that turn rolls or sheets of material into finished adhesive parts. The mechanical difference is simple: a rotary press forces the web against a rotating cylindrical die, while a flatbed press forces it against a flat die mounted on a platen. Neither platform is universally better. Rotary systems reward long, repetitive runs with speed and consistent registration. Flatbed systems reward short runs, thick or rigid materials, and frequent design changes. Choosing the wrong platform rarely fails on day one. It shows up later as tooling costs that never amortize, tolerances that drift across a long run, or parts that cannot be stripped cleanly from the liner. This article explains how each method works, which factors should drive the decision, and how to validate a method before committing to production tooling.
Match the platform to the run, not the part alone. Rotary die cutting amortizes expensive cylindrical tooling across high volumes, while flatbed die cutting keeps entry costs low for short runs, prototypes, and designs that change often.
Material thickness and rigidity set a practical ceiling. Thin films and laminates feed smoothly through rotary presses, whereas thick foams, heavy foils, and stacked constructions usually convert more reliably on a flatbed platen.
Validate on production material before cutting steel. Tolerance, liner release, and edge quality depend on the exact adhesive, facestock, and liner combination, so approve samples from real production stock rather than a generic test laminate.
Both methods share the same goal: cut a defined shape through some or all layers of a laminated material without damaging the layers that must stay intact. The shape comes from a die, a formed cutting edge that mirrors the finished part outline. What differs is how force is applied and how the material is presented to that die.
In rotary die cutting, the die is wrapped around a cylinder. As the cylinder turns, its blade contacts the moving web at a controlled pressure and cuts continuously. The process is inherently web-fed, which means material arrives from a roll and finished parts exit in a continuous stream. Because rotation is smooth and constant, the cutting action is gentler on the material than a repeated impact, and registration between print, lamination, and cut position stays steady across very long runs.
In flatbed die cutting, the die is flat and the press closes vertically, like a stamping press. Material is typically presented as sheets, or as a web that indexes forward and stops for each stroke. Each cycle is a discrete event with a dwell at the bottom of the stroke. That dwell is useful: it allows time and pressure for thick or dense materials to shear cleanly, and it tolerates constructions that would distort under continuous rotary tension.
Most production converting for industrial adhesive tapes uses one of these platforms, and some suppliers run both so they can route a job to whichever method fits the geometry and volume.
The mechanics determine what each platform can realistically deliver, so it helps to look at four practical consequences.
A rotary die is a precision-machined cylinder, which makes it the more expensive tool. That cost is fixed regardless of order size, so it only makes sense when the volume is large enough or the program long enough to spread it across many parts. A flatbed die is a flat plate, cheaper to produce and faster to replace. For a new part with uncertain demand, a flatbed tool lets you start production without betting on a forecast.
Rotary presses run continuously and generally reach higher linear speeds, which matters when a program needs millions of small parts. Flatbed presses cycle in discrete strokes, so throughput is lower per hour, though the gap narrows on thick materials where rotary speeds must be reduced anyway to achieve a clean cut.
Because a rotary cylinder rotates without stopping, cut position relative to printed features stays consistent along the entire web. That stability helps when a part carries printed graphics, barcodes, or alignment features that must land within a tight window. Flatbed presses can also hold tight tolerances, but the repeated index-and-stop motion introduces more opportunity for positional variation, especially at high stroke rates or on stretchy materials.
Continuous rotary pressure suits thin, dimensionally stable webs: PET films, paper liners, thin foams, and standard laminates. Flatbed pressure suits thick, dense, or multi-layer stacks where the material needs dwell time to shear and where compression during the stroke is tolerable. This is the single most common reason a job is routed to flatbed even at high volume.
Whichever platform is used, the die only sets the outline. What the finished part actually does in service depends on the tape construction itself, which is why it pays to understand how general adhesive tape products are built before locking in a converting method.
Work through these factors in order. The first two usually settle the question on their own.
Estimate total parts over the life of the program, not the first order. If the program will run for years at high volume, rotary tooling cost is absorbed quickly. If demand is seasonal, experimental, or split across many part numbers, a flatbed tool keeps the downside small and lets you change the design without writing off a cylinder.
List every layer: facestock, adhesive, liner, and any additional films or foams. Note total caliper and the stiffness of each layer. Thin, flexible laminates feed well on rotary equipment. Thick foams, dense foils, heavy paperboards, and stacked constructions generally convert more predictably on a flatbed platen.
Decide whether the part needs a kiss cut, which severs the facestock and adhesive but leaves the liner intact, or a through cut, which severs every layer. Rotary presses are widely used for kiss cutting because pressure can be controlled precisely and continuously. Through cutting of thick stacks is often easier on a flatbed, where the full stroke force is available in one clean action.
Tight tolerances on small parts with fine internal features favor rotary. Very large parts, unusual outlines, and designs with deep narrow slots may favor flatbed, where a large flat die can be produced without the geometric constraints of wrapping a pattern around a cylinder.
Consider how the parts leave the press. If downstream operations are web-based, such as inline lamination, printing, or automated dispensing from a roll, rotary integrates naturally. If parts are assembled by hand from sheets or fed into a sheet-fed process, flatbed output matches better. Suppliers with in-house custom die-cutting capability can often advise on which format reduces handling between steps.
Count how many times the design is expected to change. Rotary tooling changes are slower and more costly. Flatbed tooling changes are quicker, which suits iterative development, custom runs, and programs with frequent variants.
A method decision made on paper still needs physical confirmation. Use the following sequence to reduce the risk of approving a platform that cannot hold the tolerance you need.
Define the requirement in numbers. Write down part dimensions, cut type, tolerance limits, annual volume, and any print-to-cut registration window. Vague requirements make method comparison impossible.
Confirm the production material stack. Name the exact facestock, adhesive chemistry, liner type, and caliper. Converting behavior changes when any layer changes.
Request samples from both methods where feasible. Cutting the same part on rotary and flatbed equipment shows the real differences in edge quality, liner marking, and dimensional consistency.
Measure the samples against the requirement. Check dimensions, burr or edge condition, adhesive squeeze-out, liner integrity, and whether parts release cleanly for handling.
Test the assembled part. Adhesion after dwell time, peel, and shear performance belong to the tape construction, but a poor cut can reduce bond area or damage edges. Validate on the actual substrate.
Run a production-length trial. Short samples can hide drift. A trial that runs long enough to reveal tool wear, registration shift, or liner stretch gives a far more reliable answer.
Approve and retain reference samples. Keep a signed physical sample from the accepted method. It becomes the baseline for incoming inspection.
Revalidate after any change. A new adhesive, liner, facestock supplier, or coating can shift how the material cuts, so the approved method should be revisited.
Documenting temperature, pressure, speed, and tool condition during the trial makes the result reproducible. A generic test laminate proves nothing about your production stack.
Factor | Rotary Die Cutting | Flatbed Die Cutting |
|---|---|---|
Cutting mechanism | Rotating cylindrical die applies continuous pressure | Flat die closes vertically on a platen with a dwell |
Material feed | Web-fed from a roll | Sheet-fed, or web indexed in discrete strokes |
Typical best fit by volume | High volume, long-running programs | Low to medium volume, prototypes, trial runs |
Tooling cost | Higher, because the die is a machined cylinder | Lower, because the die is a flat plate |
Tooling changeover | Slower and more costly | Faster and cheaper |
Throughput | Higher linear speed, continuous output | Lower per hour, limited by stroke rate |
Registration stability | Very consistent across long runs | Good, with more positional variation from indexing |
Material thickness and rigidity | Best on thin, flexible, dimensionally stable webs | Tolerates thick, dense, or multi-layer stacks |
Part geometry | Suited to small parts with fine internal detail | Suited to large formats and unusual outlines |
Design change flexibility | Limited by tooling cost and lead time | High, supporting frequent variants |
Most die cutting problems trace back to a mismatch between the method and the material, or to a specification that was never confirmed in production conditions.
A lower quoted piece price assumes the tooling cost is amortized across the full volume. If actual orders come in below forecast, the effective cost per part rises sharply. Volume assumptions deserve scrutiny before a cylinder is ordered.
Running a dense foam or heavy multi-layer stack on rotary equipment at high speed often produces incomplete cuts, torn edges, or adhesive smear. Reducing speed may help, but the cleaner solution is usually to route the job to flatbed.
If die pressure is too deep, the liner is scored and the roll can break during dispensing. If pressure is too light, parts stay attached and cause jams downstream. The window between those two failures is narrower on some liner and adhesive combinations than others, which is why liner selection and cut depth must be validated together.
A part that cuts perfectly can still fail in production if it cannot be stripped, oriented, or dispensed efficiently. Automated feeding of small parts, or converting tape for electrical assemblies such as electrical insulation tape applications, places specific demands on liner release and part stability that should be defined before tooling is cut.
Hand-cut or short-run samples can look identical to production output while hiding tool wear, registration drift, or liner stretch that appears only after thousands of cycles. Trial length should reflect the real run.
Two laminates that look the same can cut differently because of facestock stiffness, adhesive flow under pressure, or liner release characteristics. Reviewing the full label facestock and liner construction with the converter avoids surprises at scale.
The answers reveal whether a supplier can genuinely support your part, or only quote it.
Which platform do you recommend for this volume and material, and why?
What tooling cost applies, and how does it change if volume falls below forecast?
What tolerance can you hold on this specific construction, measured on production material?
Can you provide samples cut on the recommended method from our actual stock?
How do you control kiss cut depth so the liner stays intact?
What is the changeover time and cost if the design changes?
Which downstream feeding formats can you supply, such as rolls, sheets, or pre-cut parts?
How do you validate a new adhesive, liner, or facestock before it enters production?
A supplier that can also contribute application engineering support will typically flag material or handling risks earlier in the process, when changes are still inexpensive.
Confirm total program volume, cut type, tolerance limits, and feed format in writing.
Document the exact material stack, including facestock, adhesive chemistry, liner, and caliper.
Request comparative samples from both rotary and flatbed equipment where your supplier can offer them.
Test the finished parts on the real substrate, including adhesion after dwell time and handling during assembly.
Approve a production-length trial, retain reference samples, and revalidate after any material or supplier change.
A: Rotary die cutting generally reaches higher linear speeds because the cylinder turns continuously, so it usually produces more parts per hour on thin, stable webs. The advantage narrows on thick or dense materials, where rotary speed must be reduced to achieve a clean cut. On those constructions, flatbed die cutting can be competitive in throughput while delivering better edge quality. The right comparison uses your actual material and part geometry, not a general speed figure.
A: Flatbed die cutting is usually the lower-risk starting point. The tooling costs less and changes faster, so you can begin production, gather real demand data, and revise the design without writing off an expensive cylinder. Once volume is confirmed and the design is stable, moving the part to rotary tooling becomes easier to justify. Many programs follow exactly this path from prototype to high-volume production.
A: Both platforms can hold tight tolerances when the press, die, and material are properly matched. Rotary tends to hold registration more consistently across long runs because the motion never stops, which helps when the cut must align with printed features. Flatbed presses can achieve similar dimensional accuracy but introduce more positional variation from repeated indexing. Always confirm tolerance capability on your specific construction rather than relying on a general claim.
A: Base the decision on what happens after cutting. If the part will be dispensed from a roll and the liner must stay intact, you need a kiss cut that severs only the facestock and adhesive. If the finished part leaves the press as an individual piece, a through cut that severs every layer is required. Tell your converter which format downstream equipment expects, because that choice influences both the die design and the cutting method.
A: Total thickness and layer stiffness matter most. Thin, flexible, dimensionally stable webs such as PET films and standard paper liners feed well on rotary equipment. Thick foams, dense foils, heavy boards, and multi-layer stacks generally cut more reliably on a flatbed platen, where the stroke can deliver full force with a dwell. Adhesive flow under pressure and liner release characteristics also influence edge quality and whether parts strip cleanly.
A: Approve enough to cover the range of variation you expect in production. That means samples from the actual production material stack, cut on the recommended platform, measured against your written tolerance limits, and tested after assembly on the real substrate. A single sample rarely exposes tool wear or registration drift. Where possible, run a trial long enough to reveal how the process behaves after thousands of cycles, then retain a signed reference sample.
A: Expect some cost either way, but the impact differs by platform. Flatbed tooling is cheaper and faster to replace, so design changes are absorbed more easily. Rotary tooling may require a new cylinder or modification, which takes longer and costs more. If you anticipate frequent variants, discuss that upfront, because it can shift the recommendation toward flatbed even at higher volumes. Documenting the expected design roadmap helps the converter plan tooling accordingly.
