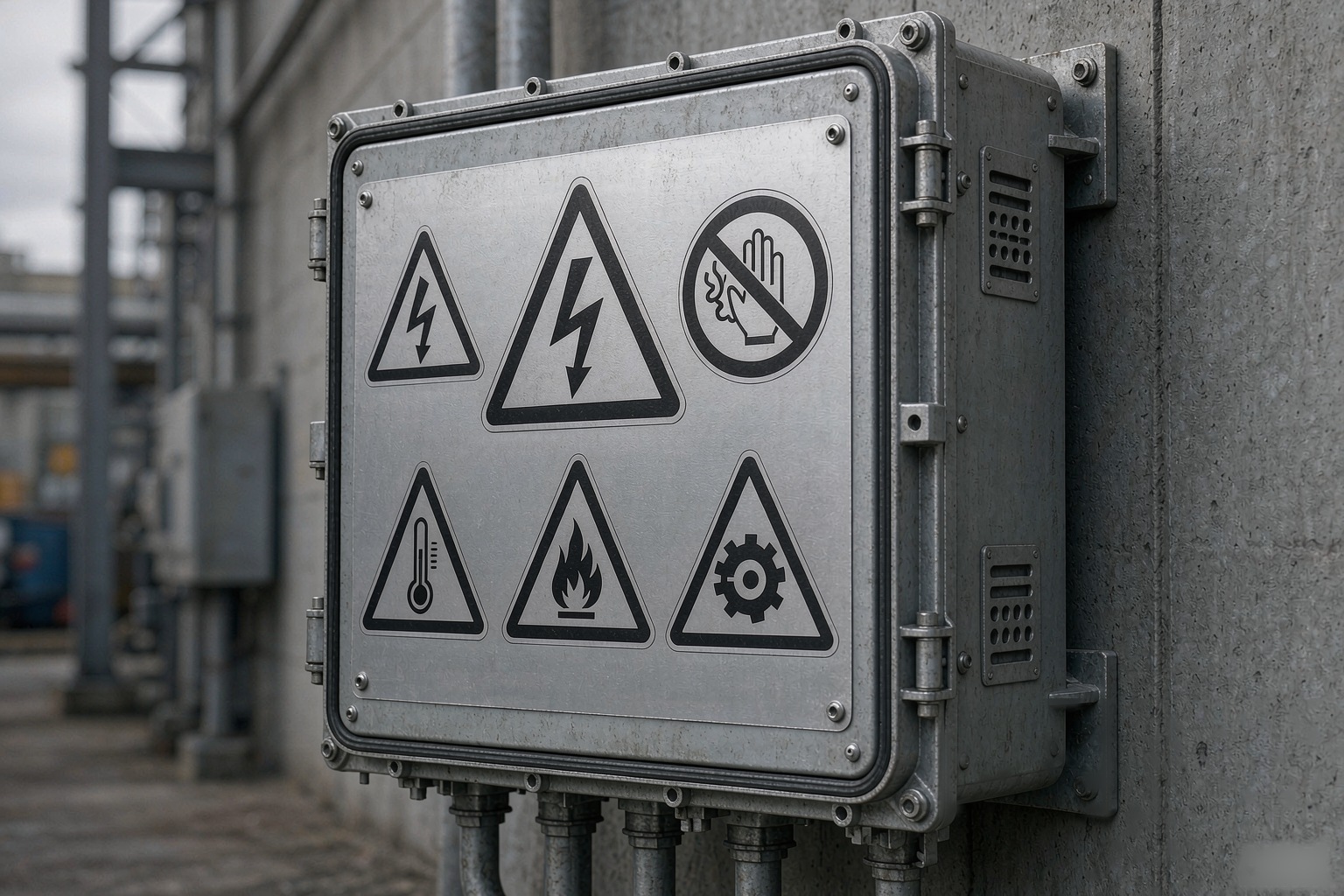

UL969 warning labels are safety labels that warn users about hazards on products requiring UL certification, and designing them for outdoor or industrial equipment means matching the message, material, adhesive, and placement to the conditions the product will actually endure. UL969 is the standard Underwriters Laboratories applies to safety-related labels used on certified products. The label must stay legible and permanently attached through the product's service life, so a design that ignores UV exposure, moisture, or chemical contact becomes a compliance problem rather than a cosmetic one.
The difficulty is that failures rarely appear at incoming inspection. Ink fades after a season in direct sun, adhesive creeps at the edges after repeated wash-down, or a hazard pictogram loses contrast once the housing is oily. By then the equipment is installed and the label no longer communicates the warning it was designed to carry. This article sets out a practical design sequence — hazard analysis, message and symbol selection, material and adhesive choice, printing method, overlamination, placement, and validation — so engineers and procurement teams can specify a warning label that survives its environment and holds up in an audit.
Design from the hazard backward. Warning text, pictograms, and signal words should follow a documented hazard analysis rather than a borrowed template, because the label's job is to change behavior before an incident occurs.
Material and adhesive follow the environment. Outdoor and industrial service brings UV, moisture, temperature cycling, and chemical exposure, so facestock, adhesive, and overlamination are selected together against those specific conditions.
Compliance is a system, not a sticker. UL969 labeling depends on an authorized supplier with a valid PGDQ2 file, correct placement, and documented validation; a label that fails in the field can put certification and market access at risk.
UL969 covers the marking and labeling systems applied to products that carry UL certification. In practical terms it defines what a safety label must do: identify the manufacturer, communicate the relevant hazard or rating, and remain readable and attached for the expected life of the product. Warning labels are one category within that scope, distinguished from instruction labels by intent. A warning label flags a hazard or a prohibited action, while an instruction label explains how to operate or maintain the equipment.
PGDQ2 is a UL file category for label materials, and it matters because label suppliers must hold a valid UL file with PGDQ2 recognition for their materials to be accepted during a UL product certification audit. A supplier without that file can still print an attractive label, but the construction is not recognized, and an auditor may reject it. PGDQ8 is the Canadian equivalent, so equipment sold in both markets needs the appropriate recognition for each. Requirements vary by product category, country, and the applicable standard, and a UL969 label by itself does not certify a product — it is one component of a larger compliance picture.
Because the label is a manufactured component rather than an afterthought, the design brief deserves the same treatment as any other engineering specification. That means documenting the substrate, the environment, the expected service life, and the acceptance criteria before a material is chosen. Buyers comparing facestock and adhesive options against those criteria can review durable UL969 label materials as a starting point for the conversation with a converter.
An indoor label on a climate-controlled enclosure faces a narrow band of conditions. An outdoor or industrial label faces a much wider set, often on the same part.
UV radiation is the most predictable stressor. It attacks the printed image first, bleaching pigments and reducing contrast between text and background, then attacks the facestock itself, which can embrittle or chalk. Moisture and temperature cycling work on the adhesive interface instead: repeated expansion and contraction of substrate and label create shear at the bond line, and water reaching the edge can migrate beneath the adhesive. Industrial sites add chemical exposure from lubricants, hydraulic fluid, cleaning agents, and process chemicals, plus abrasion from handling and pressure wash-down.
Treating indoor and outdoor as a simple binary misses the real variable, which is exposure severity. A label on a shaded, sheltered panel and one on a rooftop motor enclosure both sit outdoors, yet they experience very different UV dose, thermal range, and water contact. The design brief should describe the specific conditions rather than the general category, because the construction that suits one will be over- or under-specified for the other.
Five decisions carry most of the design. Working through them in order keeps the message, the material, and the production process aligned.
Start with the hazard analysis. Identify every hazard the label must communicate, then rank them so the most severe appears first and the layout gives it the most visual weight. Signal words, pictograms, and text should be consistent with the standards that apply to the product and the destination market, and the message should name the hazard and the avoided action in plain language. Wording that is legally cautious but vague does little to change behavior, while wording that overstates a risk erodes trust in the other labels on the same machine.
Material choice decides how the label behaves under UV, heat, and chemical contact. Matte silver PET and white PET are common in UL969 work: polyester resists tearing and moisture well, and matte silver finishes cut glare while giving a durable appearance on metal enclosures. Polyimide is chosen where high-temperature service is expected, such as motors and power electronics, because it holds up where standard films deform. Vinyl conforms to curved and textured surfaces more readily than polyester, which helps on castings and coated housings, though its outdoor durability depends heavily on formulation and overlamination. Each material carries its own temperature range, UV resistance, and chemical resistance profile, and those figures should come from supplier data rather than assumption.
The adhesive must suit both the substrate and the environment. Acrylic adhesives are the usual default for outdoor and industrial use because they resist UV and aging well and tolerate temperature cycling. Rubber adhesives offer high initial tack and good conformability, which helps on textured or low-energy surfaces, but they generally age faster under UV. Silicone adhesives are selected for extreme temperature ranges, where acrylic and rubber would soften or embrittle. Substrate condition matters as much as chemistry: bare metal, painted metal, powder-coated surfaces, and plastics each present a different surface energy, and a mismatched pairing typically shows up as edge lift months later.
Screen printing, digital printing, thermal transfer, and laser printing are all used for safety labels, and each produces a different durability profile. Screen printing lays down a heavier ink film that resists abrasion and chemical contact, which suits high-contrast warning layouts and long runs. Thermal transfer is efficient for variable data such as serial numbers, batch codes, and barcodes, and its durability depends on the ribbon and facestock combination. Digital printing gives flexibility for short runs and multi-variant labels but benefits from a protective topcoat in harsh service. Laser printing is convenient for on-demand work, though toner adhesion on smooth films should be validated on the actual material. Whichever method is chosen, the printed image should be tested under conditions that resemble service, not the office.
Overlamination adds a protective layer over the printed surface and is often the difference between a label that survives several years outdoors and one that fades within a season. A clear overlaminate film resists abrasion, moisture, and many chemicals while shielding the ink from UV. A liquid topcoat is thinner and less expensive but offers less mechanical protection. For outdoor equipment or sites with chemical exposure, overlamination is worth treating as part of the base specification rather than an optional upgrade. Buyers who need a nonstandard combination of facestock, adhesive, print method, and laminate can usually reach it through custom label converting and die-cutting.
A warning that cannot be read at the point of use has failed, regardless of how well it was manufactured. Size should be set by viewing distance and text volume, with enough contrast to remain legible as the label ages. Placement matters for compliance as well as usability: labels must be visible, legible, and permanently attached, and they should sit where the operator or service technician meets the hazard rather than where production finds it convenient. Curved, textured, or recessed surfaces need a plan for application pressure, and in some designs a smaller label on a flat machined face outperforms a large one wrapped around a curve.
A repeatable sequence keeps the design defensible and the production run predictable.
Document the hazard analysis and the exact message, pictogram, and signal word set for each label.
Define the service environment: UV dose, temperature range, moisture and wash-down, chemicals, abrasion, and expected service life.
Select facestock and adhesive against that environment, and confirm the supplier holds a valid PGDQ2 file for the construction.
Match the print method, ink, or ribbon to the durability requirement, and add overlamination where exposure justifies it.
Set label dimensions, placement location, and application method, including surface preparation and applied pressure.
Validate with a documented test on the actual production substrate, and retain approved samples for future reference.
Facestock | Adhesive | Where it fits | What to watch |
|---|---|---|---|
Matte silver PET | Acrylic | Outdoor equipment housings, metal enclosures, control panels | Glare control and print contrast matter; confirm a laminate for long UV exposure |
White PET | Acrylic | General industrial equipment with mixed indoor and outdoor service | White backgrounds show soiling faster; choose a cleaning-friendly laminate in oily areas |
Polyimide | Silicone | Motors, power electronics, and high-temperature zones | Higher material cost; reserve it for applications where heat justifies the upgrade |
Vinyl | Rubber | Curved, textured, or powder-coated housings | Outdoor durability depends on formulation; consider an acrylic upgrade for UV |
PET with clear overlaminate | Acrylic | Wash-down bays, chemical exposure, rooftop and coastal sites | Adds thickness and cost; verify laminate and ink compatibility before the run |
Most field failures trace back to a decision made early in the design, not to a defect at the press.
Peeling and edge lift. This usually signals a mismatch between adhesive and substrate, or insufficient surface preparation. Oil, release agent, dust, and moisture on the surface reduce bond strength, and the label fails at the edge first. Cleaning and degreasing before application, followed by firm pressure across the full face, prevents most of it. On textured or powder-coated surfaces, the adhesive must be chosen for low contact area rather than for smooth metal.
Fading and loss of contrast. Ink that is not protected from UV will bleach, and the resulting label may still be attached but no longer readable. Overlamination, UV-resistant ink systems, and appropriate facestock selection address this together. It is worth deciding early whether the label will be exposed continuously or only intermittently, because that changes how much protection the design needs.
Illegibility from abrasion or chemical contact. Repeated wiping, solvent exposure, and wash-down can remove printed information long before the adhesive fails. Where cleaning chemicals are used routinely, a laminate with verified chemical resistance is more appropriate than a bare printed surface.
Adhesive residue after removal. Residue complicates repair and re-labeling, and it often indicates that the adhesive was selected for a harsher bond than the surface can tolerate. For equipment that will be serviced, the removal method should be considered during design rather than after the first repair.
Using a non-UL969 construction. Substituting an uncertified label material on a product that requires UL certification can lead to certification failure, production delays, and blocked market access. The distinction between UL-authorized suppliers holding valid PGDQ2 files and suppliers without them is worth verifying before a purchase order is placed, and counterfeit markings do exist, so documentation and database checks are part of due diligence.
Confusing warning and instruction content. Combining operational guidance and hazard warnings into one dense panel reduces the visibility of both. Separate labels, each with a single purpose, are easier to read and easier to audit.
The answers to these questions should appear in writing before a production run is approved.
Does the supplier hold a valid UL file with PGDQ2 recognition for the specific construction being quoted, and is PGDQ8 recognition available for Canadian sales?
What temperature range, UV resistance, and chemical resistance data are available for the proposed facestock, adhesive, and laminate?
Which printing method and ink or ribbon system will be used, and how was its durability validated on this facestock?
Is overlamination recommended for the stated exposure, and if not, why is a topcoat sufficient?
What are the minimum order quantities, prototyping options, and typical lead times for a first article?
Can the supplier produce variable serial numbers, barcodes, or manufacturing date codes for traceability?
What surface preparation and application pressure does the supplier require for the intended substrate?
Where a design spans multiple product variants, housings, or markets, it also helps to discuss the application with an engineering team early. Reviewing application engineering support before the first article is quoted often surfaces a material or placement question that would otherwise appear during validation.
Confirm the hazard analysis is complete and that each label carries one clear purpose, with the most severe hazard given the most visual weight.
Document the service environment in specific terms — UV exposure, temperature range, moisture, chemicals, abrasion, and expected service life.
Test candidate materials on the actual production substrate, recording surface preparation, applied pressure, dwell time, and the conditions simulated.
Verify supplier authorization and request the UL file documentation covering the exact construction quoted.
Record the approved construction, printing method, laminate, placement location, and application procedure, then revalidate after any change to substrate, coating, ink, adhesive, or supplier.
Warning labels are one of the few components that communicate directly with the person at risk, so the design effort is repaid both in safety and in audit readiness. A short conversation with a converter who works with self-adhesive label constructions regularly can shorten the path from specification to a validated first article.
A: UL969 warning labels are safety labels applied to products that require UL certification. They communicate hazards, ratings, and manufacturer information, and they must remain legible and permanently attached for the product's expected service life. Warning labels sit alongside instruction labels within the same standard, but they serve a different purpose: a warning flags a hazard or prohibited action, while an instruction label explains operation or maintenance. Requirements vary by product category, country, and applicable standard.
A: Match the facestock to the dominant stressor. Polyester films such as matte silver PET and white PET handle moisture and general outdoor exposure well, polyimide suits high-temperature zones, and vinyl conforms to curved or textured housings. Then confirm UV and chemical resistance data for the specific grade, and add overlamination where continuous sun or chemical contact is expected. Request supplier data rather than relying on general material reputation.
A: The label material supplier needs a valid UL file with PGDQ2 recognition for the construction to be accepted during a UL product certification audit. Products sold in Canada typically need PGDQ8 recognition instead. The file number itself appears on the label where required, and buyers can verify the supplier's authorization through documentation and UL's public database. A UL969 warning label does not by itself certify a product; it is one element of compliance.
A: Powder-coated and oily surfaces offer lower effective surface energy and less contact area, so high-tack adhesives with good conformability usually perform better than a standard smooth-surface grade. Rubber adhesives conform well but age faster under UV, while acrylic adhesives offer better long-term stability where exposure is continuous. Cleaning and degreasing before application remain essential. The reliable approach is to test candidate adhesives on the actual coated substrate before committing to a production run.
A: Service life depends on the combination of facestock, adhesive, ink, laminate, substrate, and exposure severity, so a single number cannot be stated without testing. Suppliers should be asked for UV, temperature, and chemical resistance data for the exact construction, and the design should be validated under conditions that resemble the installation. Labels on sheltered panels and rooftop enclosures will not age at the same rate even when both are outdoors.
A: The printed information can be produced in-house, but the label material must come from a supplier whose construction carries valid UL recognition for the application. Self-printing on an unrecognized material risks rejection during certification audits, even when the label looks correct. If the equipment requires certification, confirm the authorization chain before specifying a printing method, and keep documentation for the file.
A: A faded or detached label no longer communicates the hazard it was designed to carry, and it can create problems during customer inspections or regulatory audits. The usual root causes are unprotected ink, an adhesive mismatched to the substrate, or inadequate surface preparation. Correcting them means reviewing the whole construction rather than replacing the label with an identical part, and then validating the revised design before it is released to production.
