Precision die-cut labels help electronics manufacturers reduce assembly errors, improve traceability, and keep high-speed production lines running without label-related stops. When labels are custom-engineered to match exact part dimensions, adhesive requirements, and environmental exposure, they integrate smoothly into automated dispensing systems and survive the thermal and chemical stresses common in electronics production. Choosing the wrong label construction can cause misfeeds, poor adhesion, barcode failures, and costly rework. For manufacturers evaluating label material options for electronics production, this guide walks through how precision die-cut labels work, what specifications matter most, and how to evaluate materials and suppliers before committing to production volumes.

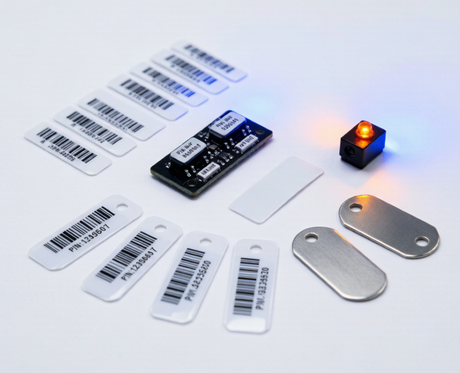

Precision die-cut labels are custom-shaped label parts manufactured using engineered cutting processes to achieve tight dimensional tolerances, consistent repeatability, and clean edge quality. Unlike standard rectangular labels, precision die-cut labels are often produced to match the exact size and contour of the component, panel, or surface where they will be applied. The die-cut process controls the kiss-cut depth through the adhesive label material and liner, ensuring the label releases cleanly during dispensing without cutting through the liner in ways that cause handling problems downstream.
For electronics manufacturers, these labels serve multiple functions: part identification, regulatory compliance marking, barcode and data-matrix tracking, brand marking, and warning or instruction labels. The defining characteristic is not just shape complexity but the combination of tight tolerances, material consistency, and liner compatibility that allows reliable high-speed dispensing on automated lines. When a label feeds correctly through a dispensing mechanism hundreds of times per minute, the dimensional precision of each individual part becomes critical to overall line efficiency.
Electronics assembly lines increasingly rely on automated label application, whether using print-and-apply systems, pick-and-place labelers, or manual assembly stations with pre-die-cut parts. A label that varies beyond its specified tolerance stack can cause misfeeds in the dispenser, poor registration on the part, adhesive ooze from oversized labels, or edge lift from parts that do not match the substrate contour. Any of these defects generates line stops, rework, or field failures that multiply cost far beyond the label price itself.
The practical consequence is that label precision directly affects throughput and defect rates. A label that is 0.5 millimeters oversized may feed adequately in one batch but cause jams in another due to humidity-driven dimensional change. A die-cut that is too deep may cause the label to adhere to the liner and fail to release during dispensing. These risks make material selection and die-cut specification not just a purchasing decision but a production engineering concern that touches quality, maintenance, and line balance.
Selecting the right precision die-cut label requires matching the adhesive label material to the specific conditions of the electronics production environment. Start with the substrate material and surface condition, since adhesion performance depends on the complete bonding system rather than the label alone. Common substrates in electronics include coated metals, plastic housings, ceramic components, glass displays, and various PCB surfaces, each presenting different surface energies and texture conditions.
Surface energy determines how well an adhesive wets and bonds to a substrate. High surface energy surfaces such as metals and glass generally accept adhesives readily, while low surface energy plastics like polyethylene and polypropylene require specially formulated adhesive chemistries or surface treatment. Surface contamination from oils, mold-release agents, flux residues, or dust further complicates adhesion and must be addressed through cleaning protocols or adhesive selection. For automated dispensing, the liner release level and die-cut geometry must be matched to the dispensing mechanism, since the label must peel from the liner consistently at high speed without static issues or misregistration.
Thermal exposure during soldering, reflow, wave soldering, or operating environments can degrade label adhesion, discolor facestocks, or cause adhesive bleed. Chemical exposure from fluxes, solvents, cleaning agents, or long-term humidity must be evaluated against the label material's resistance. For small-part handling, the label size and die-cut spacing on the roll or sheet must be compatible with the feeder mechanism, and the static charge must be controlled to prevent misfeeds or double feeds. These factors mean that the correct label for a large panel application may be entirely wrong for a small component identification task, even on the same product.
Precision die-cut labels streamline production by reducing variability at the point of application. When every label on a roll is identical in size, shape, edge condition, and liner release behavior, the dispensing mechanism runs at consistent speed without constant adjustment. This consistency reduces the need for operator intervention, lowers the defect escape rate, and supports traceability systems that depend on reliable barcode or data-matrix readability.
The integration of precision die-cut labels with automated dispensing systems requires coordination between the label material, the die-cut tolerances, the liner type, and the feeder mechanism. Print-and-apply systems, for example, demand consistent liner release, proper label spacing on the roll, and adhesive behavior compatible with the application speed and pressure. Pre-die-cut labels applied by pick-and-place systems require dimensional accuracy that matches the pickup target and placement vision system. When these factors are aligned, the label application step becomes a reliable, high-throughput process that does not create a bottleneck or quality risk in the broader production flow.
Cleanliness is another factor that matters more in electronics than in many general labeling applications. Labels that shed adhesive residue, generate particulates from poor die-cut edges, or carry static that attracts contamination can create defects in sensitive electronics assembly. Cleanroom-compatible label constructions and low-outgassing adhesive systems address these risks, but they must be specified based on the actual production environment rather than assumed from generic product descriptions.
Different electronics applications demand different label constructions. The table below compares common options and their typical suitability for various production conditions and performance requirements.
Label Construction | Typical Application | Key Strengths | Limitations |
|---|---|---|---|
Polyester with permanent acrylic adhesive | Component identification, rating plates, barcode tracking | Dimensional stability, chemical resistance, print durability | Higher cost, requires clean surface for adhesion |
Polyimide (Kapton) with high-temperature adhesive | PCB identification, solder mask, wave solder and reflow processes | Withstands soldering temperatures, flame resistance, thin profile | Cost, limited color options, requires precise die-cut tooling |
Acrylic foam-backed vinyl | Bonding to textured or irregular surfaces, nameplates, dampening | Conforms to surface texture, compensates for minor unevenness | Thicker profile, may ooze adhesive under high pressure or heat |
Thermal transfer label with resin-enhanced ribbon | Printed barcodes, variable data, compliance markings on demand | On-demand printing, scuff resistance, variable content per part | Requires thermal transfer printer, ribbon-label matching |
Static-dissipative label material | ESD-sensitive component labeling, cleanroom assembly | Controls electrostatic discharge, reduces particle attraction | Specialized material, verify compatibility with actual ESD protocol |
Removable adhesive label | Temporary process labels, protective coverings, rework markings | Clean removal, no residue on qualified surfaces | Not suitable for permanent identification, limited thermal resistance |
Several recurring mistakes cause label-related production problems in electronics manufacturing. One common error is specifying a label based only on the substrate material without considering surface condition, texture, contamination, and the actual application environment. A label that bonds well to clean laboratory samples may fail on production parts that carry oils, release agents, or flux residues. Always test the actual production substrate rather than assuming material compatibility from data sheets.
Another frequent mistake is ignoring the thermal and chemical exposure profile of the production process. Labels that perform adequately at room temperature may soften, discolor, or lose adhesion during soldering or cleaning steps. Conversely, specifying an expensive high-temperature construction for a room-temperature application adds unnecessary cost. Matching the adhesive and facestock to the actual thermal and chemical exposure, rather than over-specifying, yields better value and performance.
Die-cut quality problems also create downstream issues. Die-cuts that are too shallow cause labels to bridge between parts on the liner, leading to double feeds and dispensing errors. Die-cuts that are too deep score the liner and cause feed problems or premature label release. Inconsistent die-cut depth across a roll creates intermittent dispensing failures that are difficult to diagnose. Specifying die-cut depth tolerance and verifying it through incoming inspection or supplier process control prevents these issues from reaching the production line.
Automated dispensing failures are often blamed on the label without examining the interaction between the label, the feeder mechanism, and the application parameters. Liner release level, static charge, label spacing, roll diameter, and mandrel compatibility all affect dispensing performance. When labels feed poorly, the first step is to examine the complete system rather than assuming the label is defective, though the label material and die-cut tolerances remain critical variables.
Evaluating a label supplier for electronics applications requires going beyond basic material descriptions and pricing. Ask what adhesive chemistry options are available for your specific substrate and surface condition, and request test samples that match the production substrate rather than generic test panels. Understanding the supplier's die-cut tooling capability, tolerance control, and incoming material verification process helps assess whether they can deliver consistent precision across production volumes.
Request documentation on the liner release level, recommended dispensing speed, and static control measures. For thermal or chemical exposure, ask what testing has been done on the specific label construction under conditions that simulate your production process. For traceability and reliability applications, understand the supplier's material traceability, change notification policy, and quality system. A supplier who can document material construction, process capability, and testing rationale provides more certainty than one who offers only generic product descriptions.
Discuss customization services such as custom die-cut tooling, liner options, roll lengths, and print compatibility. The most relevant custom converting and die-cutting capabilities can produce label constructions matched to specific dispensing mechanisms and production environments. Verify whether the supplier can support iterative sample testing before scaling to production volumes, since label performance often reveals itself only under actual production conditions.
Selecting and implementing precision die-cut labels for electronics production benefits from a structured evaluation process that reduces downstream risk and accelerates qualification.
Document the actual production substrate, surface condition, and environmental exposure including temperature, chemicals, humidity, and any cleaning steps the label must survive.
Request test label samples matched to the production material and process and evaluate adhesion, dispensing, readability, and durability under realistic conditions.
Define pass/fail criteria before testing so that material selection decisions are based on measurable performance rather than subjective assessment.
Verify die-cut quality, liner release behavior, and dispensing compatibility on the actual feeder mechanism before committing to production volumes.
Retain approved samples and document the accepted specification so that incoming material inspection and future production lots can be validated against a known reference.
Electronics manufacturers who invest in label qualification testing and supplier qualification reduce the risk of line stops, rework, and field failures that arise from label-related defects. The label materials for electronics and industrial applications span a range of adhesive chemistries, facestock options, and constructions that can be matched to specific production requirements when evaluated systematically.
A: Tolerances vary by material, size, and die-cut method, but precision die-cut labels for electronics are commonly produced to tolerances in the range of ±0.1 to ±0.3 millimeters. Actual achievable tolerances depend on the specific material construction, part geometry, and production method. Confirm the supplier's documented tolerance capability and process control for your specific part design.
A: Yes, but the adhesive chemistry must be matched to the low surface energy substrate, and the surface condition must be controlled. Specialty adhesive systems, surface treatments, and cleaning protocols improve bonding to low surface energy plastics. Testing on the actual production material remains essential since surface contamination and texture vary by molder and process.
A: Precision die-cut labels support automated dispensing through consistent dimensional tolerances, controlled die-cut depth, compatible liner release behavior, and proper static management. When these factors align with the feeder mechanism, the labels feed reliably at high speed without misfeeds, double feeds, or registration errors.
A: Polyimide facestocks with high-temperature adhesive systems are common for solder reflow and wave solder exposure, but actual thermal performance depends on the specific adhesive formulation, dwell time, and peak temperature. Validate any label construction against the actual thermal profile of the production process rather than relying on generic temperature ratings.
A: Label adhesion should be validated by testing on the actual production substrate under realistic conditions, including surface cleaning or contamination states, application pressure and temperature, and post-application dwell time. Evaluate initial adhesion and adhesion after exposure to the thermal, chemical, and humidity conditions the label will encounter in production and field use.
A: Common causes include die-cut depth inconsistency, liner release level mismatch with the feeder, static buildup, label spacing variation, roll contamination, and adhesive ooze that bonds labels together on the roll. Diagnosing dispensing failures requires examining the interaction between the label construction, the feeder mechanism, and the line environment rather than isolating one factor.
A: Yes, precision die-cut labels can carry barcodes and data-matrix codes, but print durability depends on the facestock surface, the print method, the ribbon or ink system, and the exposure conditions. Thermal transfer printing with resin-enhanced ribbons on suitable facestocks is common for durable electronics tracking codes. Validate readability after exposure to the production environment, not just on initial print samples.
Electronics manufacturers evaluating industrial adhesive tapes and label constructions can explore a range of material options suited to automated assembly and production traceability. Working with experienced material converters who understand die-cut precision, adhesive behavior, and electronics production requirements reduces the iteration needed to qualify reliable label solutions.
