Client Industry: Logistics & Commercial Fleet Management
Product Category: Custom Fleet Graphic Films / Outdoor Vehicle Vinyl Decals
Key Materials Used: 3M™ 2008 Graphic Film + 3M™ Scotchcal™ 8520 Matte Overlaminate
Print Technology: HP Latex Printing
Certification & Compliance: UL969 Standard for Marking and Labeling Systems
Key Performance Requirements: 7-Year Outdoor Lifespan, Waterproof, UV Protection, Anti-Yellowing, Anti-Peeling

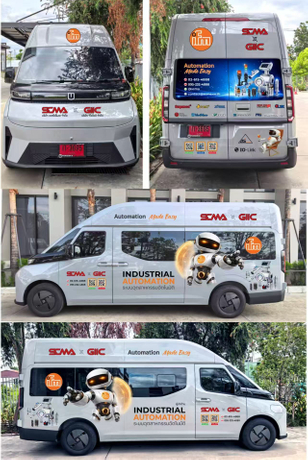

Our client, an international logistics operator managing over 200 transport trucks, faced severe degradation issues with their existing fleet graphics. Operating across regions with extreme sunlight exposure, heavy rain, and harsh highway debris, their previous vehicle decals suffered from:
Premature Fading & Yellowing: Lower-grade vinyl degraded within 18 months under intense UV radiation.
Edge Peeling & Adhesive Failure: High-pressure automated truck washes caused graphics to lift at the corners.
Compliance Requirements: The company required industrial markings compliant with UL969 certification standards for durability and adhesion under varied environmental conditions.
The client needed a high-performance, long-term fleet branding solution capable of maintaining crisp color clarity and complete structural integrity for up to 7 years outdoors.
As a leading innovator in industrial labeling and durable graphics, Mactape engineered a custom multi-layer graphic solution combining tier-one raw materials with advanced printing technology.

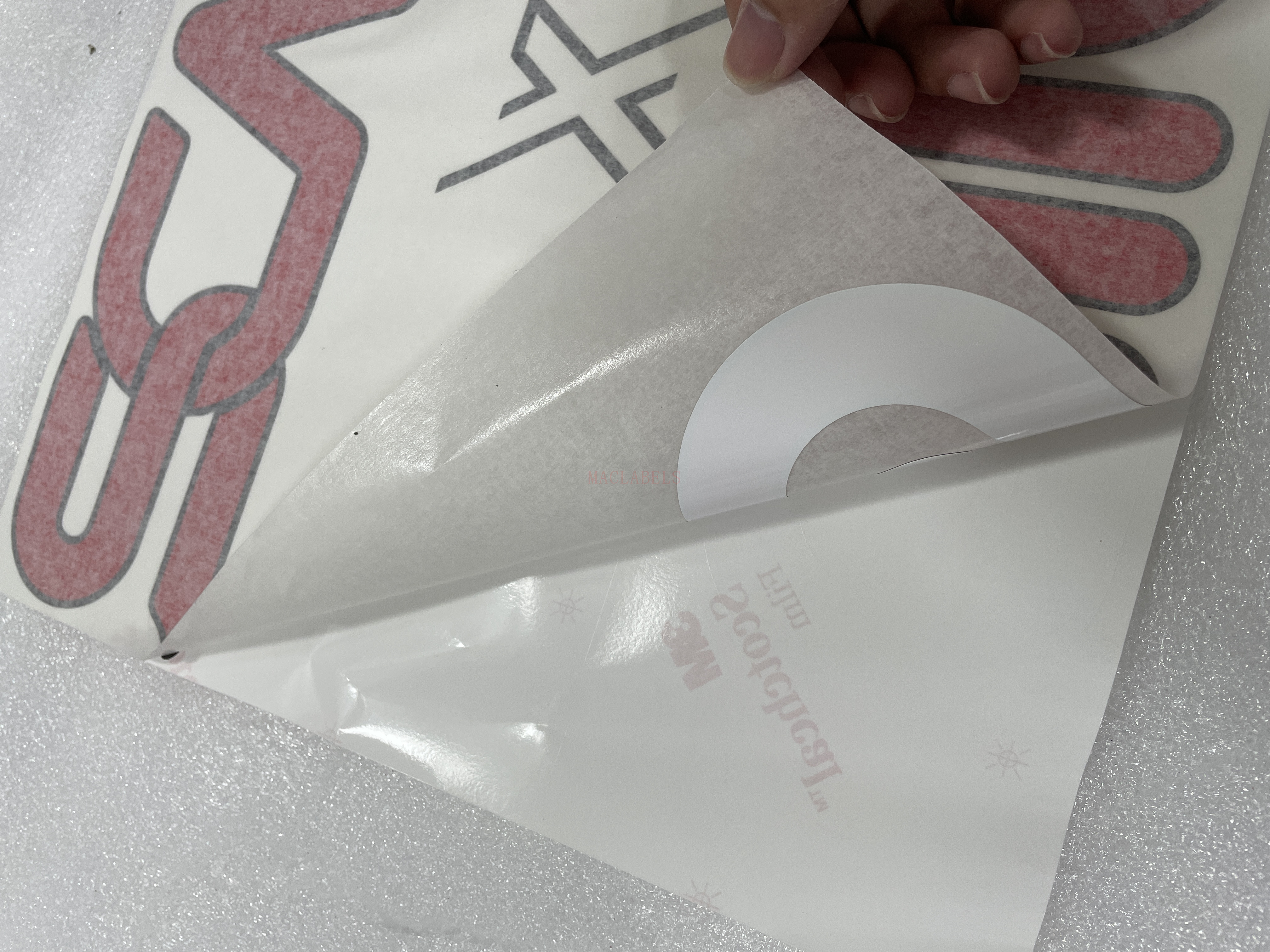

Base Vinyl (3M 2008): Selected for its high dimensional stability, strong initial tack, and exceptional long-term pressure-sensitive adhesion to automotive surfaces.
Overlaminate (3M 8520): Applied as a protective shield against chemical exposure, road salt, abrasion, and harsh UV rays, completely preventing yellowing or surface dulling.

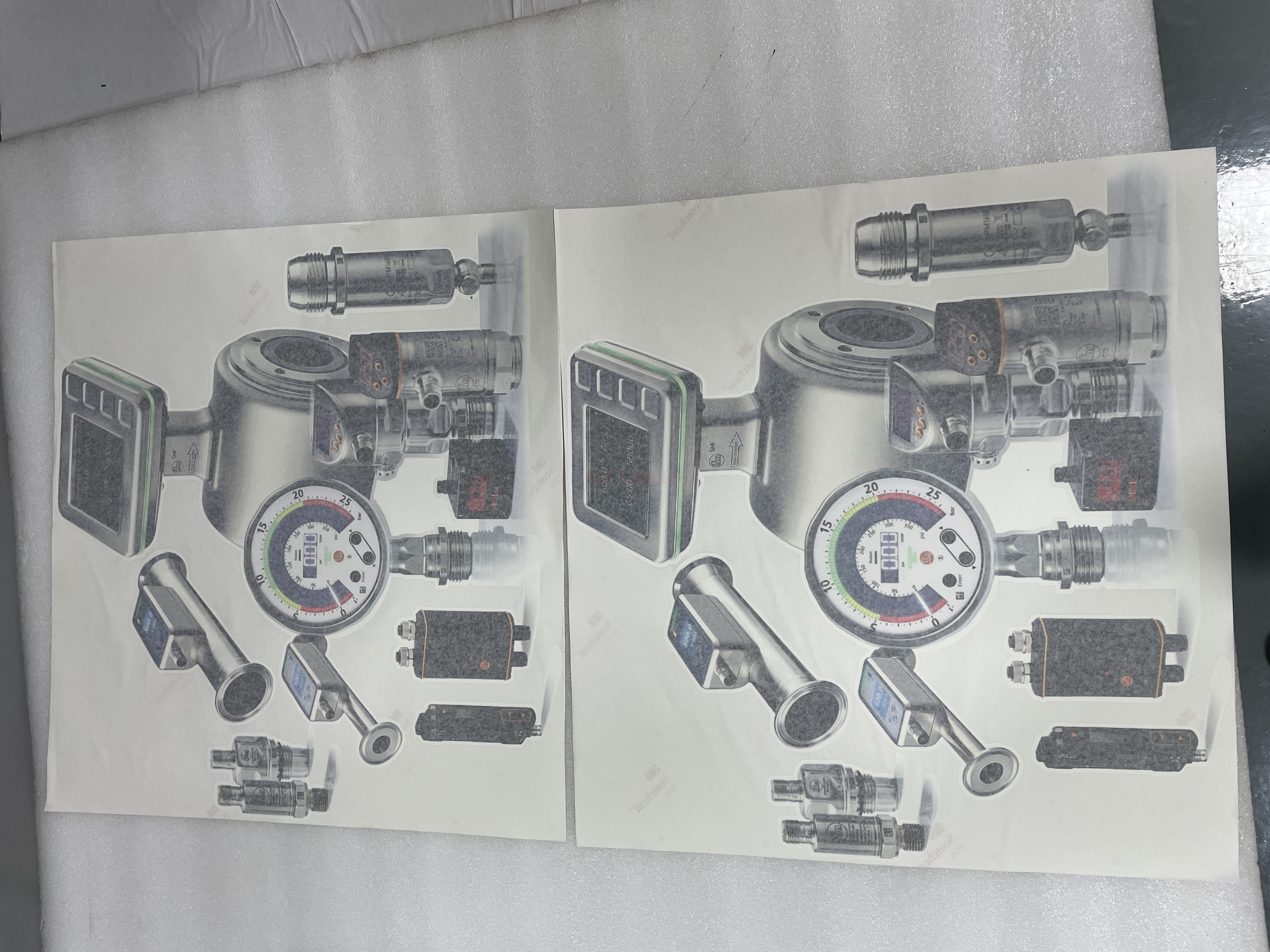

Utilizing state-of-the-art HP Latex digital printing technology, we achieved:
Vibrant Color Reproduction: High-density pigments ensure brand colors remain vivid across all viewing distances.
Instant Curing & Odorless Finish: High-speed production without solvent gas release, guaranteeing maximum ink anchorage before lamination.
Every finished graphic passed rigorous internal quality checks to satisfy UL969 standards, ensuring that the adhesive bond withstands temperature fluctuations, humidity exposure, and outdoor weathering over a 7-year life cycle.
Feature | Specification |
Product Type | Custom Outdoor Vehicle Graphic Films |
Substrate Film | 3M™ 2008 Vinyl |
Protective Film | 3M™ 8520 Matte Overlaminate |
Print Method | HP Latex Printing |
Outdoor Durability | 7 Years (No fading, peeling, or yellowing) |
Certification | UL969 Certified |
Resistances | Waterproof, Anti-UV, Weatherproof, Chemical-Resistant |
Application Areas | Commercial fleets, trucks, trailers, equipment, rail, utility vehicles |
Proper installation is critical to achieving the full 7-year service life. Mactape provides comprehensive technical guidance for field application team deployment.
Small Decals (< 500 mm / 20 in): Dry Application Method. Suitable for quick positioning on flat panels.
Large Fleet Graphics (> 500 mm / 20 in): Wet Application Method. Recommended to allow easy repositioning and seamless air-bubble evacuation across large vehicle panels.
Professional felt-edge squeegee
Hot air blower / Heat gun (mandatory for post-heating corner wraps and recessed contours)
Lint-free microfiber cloths & Isopropyl alcohol cleaner
Surface Degreasing: Clean the vehicle body thoroughly with isopropyl alcohol. Ensure the target area is completely free of dust, wax, or silicone residues.
Graphic Placement & Squeegee: Position the graphic film. Using firm, overlapping squeegee strokes from the center outward, push out trapped air and application liquid.
Edge Wrapping & Post-Heating: Use a heat gun to gently heat the graphic edges and recessed channels. Squeegee firmly while warm to activate the pressure-sensitive adhesive, ensuring long-term edge adhesion without curling.
Zero Failures at 7 Years: Field tests confirmed zero edge lifting, cracking, or color degradation over extended outdoor exposure.
Enhanced Brand Image: High-definition HP Latex graphics provided a consistent, professional look across the client's entire logistics fleet.
Reduced Maintenance Costs: Eliminating frequent decal replacements saved the client significant vehicle downtime and remarking expenses.
Whether you require custom vehicle graphics, durable equipment labels, or industrial adhesive solutions, Jiangsu Mactape Industrial Products Technology Co., Ltd. offers end-to-end support—from initial material selection to full-scale manufacturing.
Sample Lead Time: Design samples ready within 24 hours / Physical samples shipped within 48 hours.
Flexible Orders: Low Minimum Order Quantity (MOQ) to prevent client inventory stagnation.
Global Delivery: Serving customers in 146 countries and regions with complete international certification compliance.
