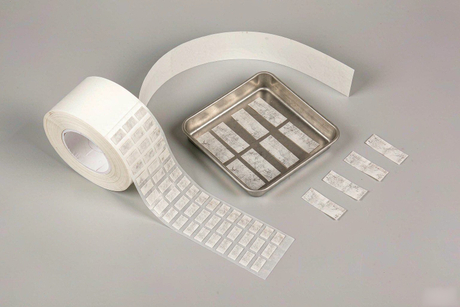

Die cut, through cut, and kiss cut all describe how far a cutting blade travels through an adhesive tape construction. Kiss cutting penetrates the tape and adhesive but leaves the release liner intact, so parts stay on a continuous carrier. Through cutting severs every layer, liner included, so each part becomes a separate piece. Die cutting names the process — shaping a part with a die — and can describe either depth depending on the supplier. That overlap is why drawings and purchase orders should specify cut depth and liner condition, not just a format name.
The practical problem appears downstream. A part arrives on a liner the dispenser cannot thread, or as loose pieces a peel-and-place head cannot pick. Both outcomes trace back to a cut depth that was never pinned down. This article explains what each format actually does, how cut depth reshapes tooling and feeding, which factors decide the right choice, and how to write a specification that survives the trip from drawing to press.
Depth, not the name, defines the format. The three labels describe how many layers the blade crosses and whether the liner survives, so specify depth and liner condition rather than relying on terminology alone.
Feeding equipment usually decides the answer. A dispenser that peels from a liner needs kiss cut parts; a pick-and-place head that lifts loose parts needs through cut parts. Name the equipment before choosing.
Every format carries its own tolerance risk. Kiss cutting risks scoring the liner, through cutting risks uncut tabs and a lost liner, so the achievable tolerance differs and should be confirmed with the converter.
All three formats start with a roll of adhesive tape and a shaped tool. What separates them is how far the cutting edge descends into the material stack and what happens to the release liner. Converters who produce die-cut tape parts run these formats on the same presses, often with the same rotary tooling, which is why the distinction has to be stated explicitly rather than assumed.
The blade is set to a controlled depth that cuts through the tape backing or facestock and the adhesive layer, then stops at the surface of the release liner. The liner stays continuous, so the converted parts remain in position on a carrier. An operator or a dispensing head peels each part away as it is needed. Because the liner is never severed, kiss cut parts can be wound back onto a roll and fed through automated equipment, which is why this format dominates label production and many small tape components.
Through cutting severs the full construction: facestock, adhesive, and release liner. Each part is released from the surrounding web as an individual piece, and the waste matrix between parts is stripped away. The liner does not survive as a carrier, so parts are typically supplied loose, in trays, in bags, or on a secondary carrier applied after cutting. Through cut parts suit applications where the adhesive face is bonded directly to a surface and no liner is needed at the point of assembly.
Die cutting describes the tooling method rather than a fixed depth. A die — rotary, flatbed, or laser-cut — is shaped to the part outline and pressed or rolled into the web. Depending on how the die is set, the result can be a kiss cut part on an intact liner or a fully separated through cut part. Buyers who ask only for "die cut" therefore leave the most important variable open. Naming the depth closes that gap.
Terminology shifts between suppliers and regions. Some converters use through cut only when the liner is deliberately severed, and treat die cut as the general term for shaping a part. Others use the two interchangeably. The safe approach is to describe the outcome you need: which layers are cut, whether the liner remains intact, and how the parts will be presented. A drawing that states depth, liner condition, and packaging removes the ambiguity before it reaches the press.
A fraction of a millimeter looks trivial on a drawing. On the production floor it decides tooling, waste handling, yield, and the equipment the buyer needs at the assembly station.
Depth control is the first consequence. Kiss cutting demands a blade that stops reliably inside the adhesive without touching the liner, so the depth window is narrow and the liner thickness sets the margin for error. A thin liner leaves very little room. Through cutting needs the opposite discipline: the blade must penetrate every layer cleanly across the full web width, because depth variation leaves uncut tabs that hold parts in place or produce a ragged release. Neither format is harder in principle, but each fails in a different way, and the tooling is set up to prevent that specific failure.
Waste handling diverges just as sharply. Through cutting generates a matrix of scrap tape that must be stripped and managed, which adds material loss — a real consideration with thick foam, expensive films, or specialty adhesives. Kiss cutting limits scrap to the cut outline while the liner carries through the process untouched. For a buyer, that difference often shows up in the quoted yield per roll rather than in the unit price.
The most visible consequence is how parts reach the line. A dispenser or applicator head that peels parts from a liner expects a kiss cut format with a consistent carrier and a predictable release value. A pick-and-place head, a vibratory feeder, or a manual tray pick expects separated through cut parts. Match the format to the feeder and the process runs; mismatch it and operators begin improvising, which is where adhesive contamination and placement errors enter. Buyers who need a nonstandard outline, a combined construction, or a specific presentation can usually reach a workable answer through custom die-cutting and converting services that treat tooling and material as one decision.
Five factors settle most decisions. Working through them in order avoids the common situation where a part is technically correct but unusable on the line.
Manual application with a liner to peel points to kiss cutting. Automated placement that lifts a discrete part points to through cutting, or to a kiss cut format engineered around the feeder's peel geometry. State the placement method and the equipment model on the drawing so the converter can match the cut to it instead of inferring from the outline.
If the liner must be removed before bonding, kiss cutting keeps it available as a handling aid and lets the operator control when the adhesive is exposed. If the liner plays no part in assembly, through cutting removes it and simplifies handling. Release value matters too: a liner that releases too easily can drop parts prematurely, while one that grips too hard slows every cycle. Comparing label facestock and liner materials shows how liner choice interacts with the cut.
Small, intricate shapes with narrow webs are harder to kiss cut reliably because the blade has less room to stop cleanly, and harder to through cut because the tool wears faster at tight corners. Simple shapes with generous spacing tolerate either. Where tolerance is critical, the drawing should state an acceptable range for part dimension, cut depth, and liner integrity rather than a single nominal figure.
Thick foam tapes, soft transfer adhesives, unsupported films, and reinforced cloth backings each behave differently under the blade. Compressible materials change depth as the tool descends, so the effective cut window narrows. Material and format are evaluated together, never one after the other.
High-volume runs justify rotary tooling and reward a format that feeds without manual handling. Low-volume or prototype work may suit flatbed or laser-cut tooling where setup cost matters more than cycle speed. Ask what tooling the converter proposes and how it changes between kiss cut and through cut, because the answer affects both lead time and the minimum quantity they can quote.
Moving from concept to a repeatable part follows a short sequence. Each step reduces the chance that a cut format is chosen for the wrong reason.
Describe the finished part: outline, dimensions, tolerance, tape construction, adhesive type, and whether a liner is required at assembly.
Name the placement method and the equipment that will apply the part, including dispenser, feeder, or head constraints.
State the cut outcome explicitly: which layers are cut, whether the liner remains intact, and how parts are presented — on a roll, in sheets, in trays, or loose.
Confirm the liner supports the required depth and release behavior, and ask what depth tolerance the converter can hold.
Request samples in the candidate formats where the decision is close, and trial them on the actual production surface rather than a substitute.
Record cut depth, part tolerance, liner specification, material lot, and the approved sample with the drawing.
Revalidate after any change to tape construction, liner, tooling, or supplier, since a small substitution can move a kiss cut part outside its depth window.
Documented testing matters more than intuition. Define pass or fail criteria before the trial — clean release with no adhesive transfer to the liner, no liner scoring or distortion, correct part dimensions, and adhesion on the target substrate — then test under conditions that resemble the real process, including the dwell time and pressure the part will see. Where a formal standard or customer specification applies, reference it directly rather than treating a general bench test as equivalent.
Aspect | Kiss cut | Die cut (kiss-depth) | Through cut |
|---|---|---|---|
Layers cut | Facestock and adhesive only | Facestock and adhesive; depth set by die | Facestock, adhesive, and release liner |
Release liner | Left intact and continuous | Left intact and continuous | Severed; does not survive as a carrier |
Part presentation | Parts held on a liner or roll | Parts held on a liner or roll | Individual loose parts, trays, or secondary carrier |
Typical application method | Peel-and-place by hand or dispenser | Peel-and-place with controlled die geometry | Pick-and-place heads, manual tray pick, direct bonding |
Waste produced | Limited to the cut outline | Limited to the cut outline | Full matrix of surrounding tape |
Depth control demand | High — must stop inside the adhesive | High — die depth defines the result | High — must penetrate every layer across the web |
Primary failure mode | Blade scoring the liner or leaving parts attached | Inconsistent depth between the two outcomes | Uncut tabs or a ragged, torn release |
Material yield | Higher, because the liner passes through | Higher, because the liner passes through | Lower, because the surrounding tape is scrapped |
Best suited to | Intricate shapes and liner-based assembly | Shapes needing tight, repeatable outlines | Simple, robust shapes at high volume |
Most problems traced back to this topic fall into a small number of patterns. Recognizing them early is usually enough to prevent them.
Ordering by format name alone. A purchase order that says only "die cut" leaves depth undefined, and the converter may deliver either outcome. Specify depth and liner condition.
Choosing a format before defining the feeder. Selecting a cut as an afterthought, rather than from the placement equipment, is the most common root cause of a part that will not feed.
Leaving the liner unspecified. Two liners of the same thickness can release very differently. Release value and stiffness belong on the drawing beside the cut depth.
Assuming one tolerance covers all formats. Kiss cutting and through cutting fail in different ways, so a single blanket tolerance can set an unachievable expectation.
Overlooking material compressibility. Foam and soft transfer adhesives compress under the blade, so a format proven on a thin film may not repeat on a thick construction.
Contaminating the adhesive face. Handling separated parts with bare fingers, or letting them rest face-down, compromises the bond before assembly begins.
Substituting a component without requalification. A new liner, backing, or adhesive can shift the cut window, so an approved part should be retested after any change.
Ignoring scrap in the yield calculation. Through cutting discards the surrounding material, which matters with expensive or thick constructions.
Where a project spans a family of parts, mapping requirements once across the range avoids repeating the same cut-format debate for every variant. Application engineers can align material, cut format, and feeding method before tooling is cut, using application-specific tape solutions as a starting point.
A focused set of questions resolves most uncertainty before a purchase order is issued. Ask them in writing and keep the answers with the part specification.
Which cut depth do you recommend for this application, and what does the finished part look like as a result?
What depth tolerance can you hold, and how is it verified during production?
Which liner do you propose, and how does its release value suit the feeding method?
Can you supply samples in more than one format for a side-by-side trial?
How is the waste matrix handled, and does it change the yield you quote per roll?
What tooling do you propose, what is the lead time, and does it change between kiss cut and through cut?
What are your minimum order quantities for a custom shape?
How do you control adhesive contamination during converting, packing, and shipping?
Lead times and minimum quantities vary with tooling, material availability, and format, so confirming both early prevents a late surprise. Buyers who also source standard products alongside converted parts can review the general adhesive tape range to consolidate materials and simplify inventory.
Confirm the placement method and the equipment that will feed the part, then let those define the cut depth.
Document the complete construction: tape, adhesive, liner, cut depth, part tolerance, presentation, and expected service conditions.
Request more than one format as samples where the decision is close, and trial them on the real production substrate.
Record pass or fail criteria and the tested conditions, then retain an approved sample with the specification.
Revalidate after any change to material, liner, tooling, or supplier before the next production run.
A: The difference is cut depth. Kiss cutting cuts the facestock and adhesive but leaves the release liner intact, so parts stay on a carrier. Through cutting severs every layer including the liner, releasing individual parts. Die cutting describes the tooling method and can produce either result depending on how the die is set, so specify depth rather than the format name.
A: Let the equipment decide. A dispenser that peels parts from a liner expects a kiss cut part with a consistent carrier. A pick-and-place head that lifts discrete parts usually expects through cut parts or a format designed around its peel geometry. Provide the feeder model and method when ordering so the converter can match the cut to it.
A: Not necessarily, but it discards the surrounding tape as waste, so material yield is lower and that shows up in the quoted yield per roll. Tooling and lead time also differ. Where the application allows a liner-based format, kiss cutting can reduce material loss, though the choice should follow the feeding method rather than price alone.
A: Often yes, provided the construction and liner tolerate each depth. Tooling differs and the liner requirement may change, so the formats can carry different lead times, yields, and minimum quantities. Where a project uses more than one, treat each as a separate part number with its own specification so they are never confused on the production floor.
A: The liner is the surface the blade stops against, so its thickness and stiffness set the margin for error. A thin liner leaves less room to stop cleanly, while a heavier liner is more forgiving. Release value matters too, since it controls how easily an operator or dispenser lifts each part without stretching or tearing it.
A: State an acceptable range for part dimensions, cut depth, and liner integrity rather than a single nominal value. The achievable tolerance depends on material thickness, compressibility, shape complexity, and tooling type, so ask the converter what they can hold before fixing a number. Tight corners and narrow webs are the hardest features to reproduce consistently.
A: Provide the part outline with dimensions and tolerance, the tape construction and adhesive, the required liner, the cut depth and whether the liner must remain intact, the placement method and feeding equipment, the expected annual volume, and the service conditions the part will face. A sample of the target surface helps the converter choose tooling with confidence.
